ENI90HD-R

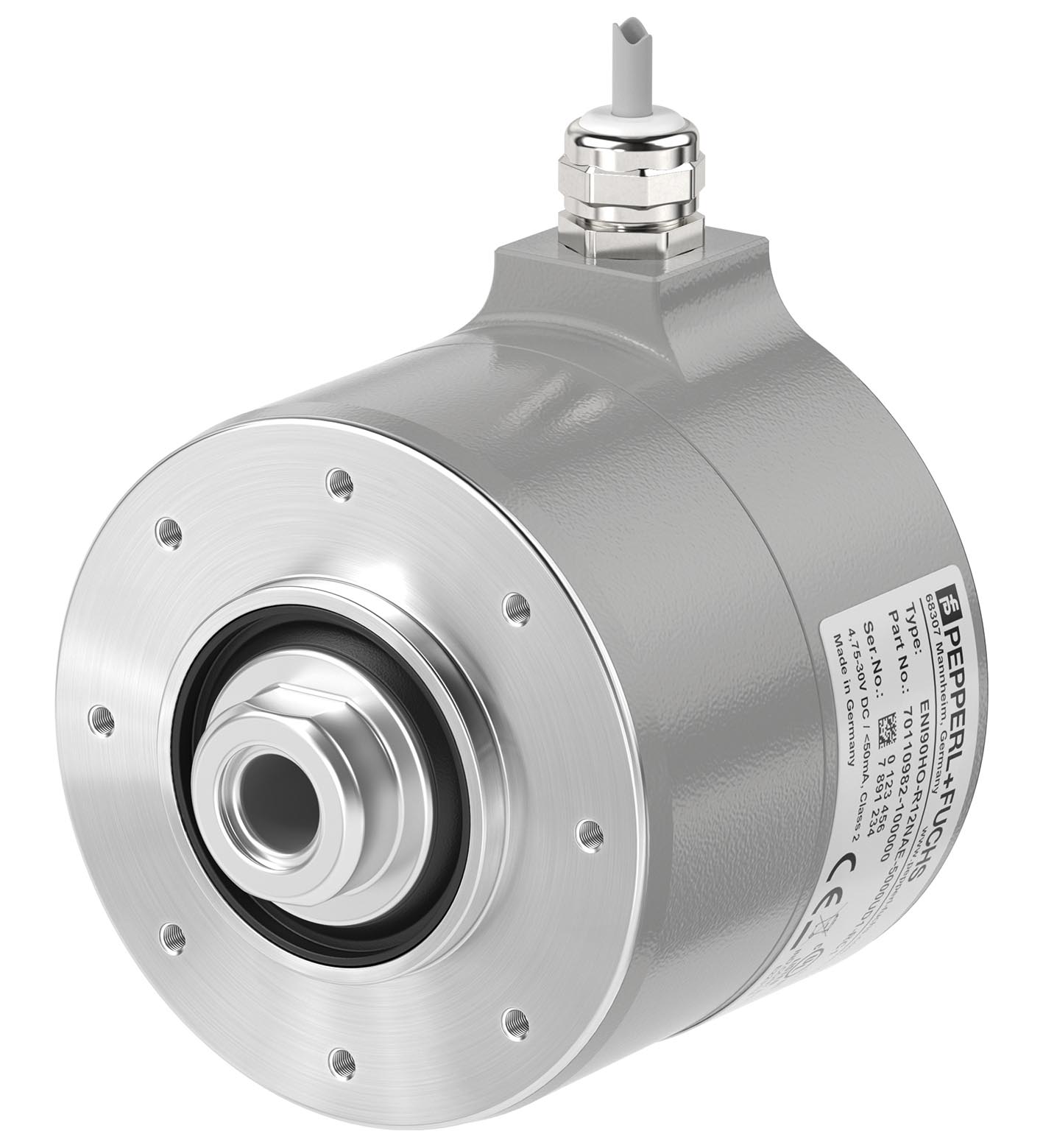

Incremental rotary encoder. Housing ∅ 93 mm, Up to 5000 pulses, Universal output driver, BlueBeam technology for ultimate precision, Recessed hollow shaft, Enclosure type: 93 mm, Type of shaft: Recess...

Incremental rotary encoder. Housing ∅ 93 mm, Up to 5000 pulses, Universal output driver, BlueBeam technology for ultimate precision, Recessed hollow shaft, Enclosure type: 93 mm, Type of shaft: Recessed hollow shaft, Interface: push-pull, incremental or RS-422, incremental, Application: Heavy-duty encoder, Detection type: photoelectric sampling, Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Detection type: photoelectric sampling. Linearity error: ± 0.025 °. Pulse count: max. 5000. MTTFd: 435 a. Mission Time (TM): 10 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 4.75 ... 30 V DC. No-load supply current: max. 50 mA. Output type: push-pull or RS422 (universal output driver, output level depending on input voltage). Load current: max. per channel 40 mA , short-circuit protected, reverse polarity protected. Output frequency: max. 400 kHz. Rise time: 300 ns. Phase position A to B: . Pulse counts < 360090 ° ± 9 ° electricalPulse counts ≥ 360090 ° ± 25 ° electrical: . Pulse counts < 3600: 90 ° ± 9 ° electrical. Pulse counts ≥ 3600: 90 ° ± 25 ° electrical. Duty cycle: 1/2 ± 10 %. Connector: M12 connector, 8-pin M12 connector, 5 pin M23 connector, 12-pin , clockwise rotation M23 connector, 12-pin , counter clockwise rotation. Cable: ∅6 mm, 4 x 2 x 0.14 mm2. Terminal compartment: Cable duct for cable diameter ∅4.0 mm ... 9.5 mm. Degree of protection: DIN EN 60529, IP65, IP66, IP67. Climatic testing: DIN EN 60068-2-78 , no moisture condensation. Emitted interference: EN IEC 61000-6-4:2019. Noise immunity: EN IEC 61000-6-2:2019. Shock resistance: DIN EN 60068-2-27, 200 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 20 g, 10 ... 2000 Hz. UL approval: E223176 , cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure , if UL marking is marked on the product. For use in NFPA 79 Applications only. adapters providing field wiring on request. Maximum permissible ambient temperaturemax. 80 °C (max. 176 °F): . Maximum permissible ambient temperature: max. 80 °C (max. 176 °F). Operating temperature: -40 ... 85 °C (-40 ... 185 °F) , cable, fixed installation -5 ... 85 °C (23 ... 185 °F) , movable cable. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Material: . Housingpowder coated aluminumFlangealuminum, blankShaftStainless steel 1.4305 / AISI 303: . Housing: powder coated aluminum. Flange: aluminum, blank. Shaft: Stainless steel 1.4305 / AISI 303. Mass: < 1100 g without cable. Rotational speed: max. 6000 min -1 for IP65 max. 3000 min -1 for IP66/IP67. Starting torque: ≤ 0.1 Nm for IP65 ≤ 0.25 Nm for IP66/IP67. Shaft insulation: max. 2.5 kV (for dielectric strength version). Shaft load: . Axial≤ 100 NRadial≤ 300 N: . Axial: ≤ 100 N. Radial: ≤ 300 N. Dimensions: . Length84.5 mmDiameter93 mm: . Length: 84.5 mm. Diameter: 93 mm

Brand	Pepperl Fuchs
Lifecycle status	active
