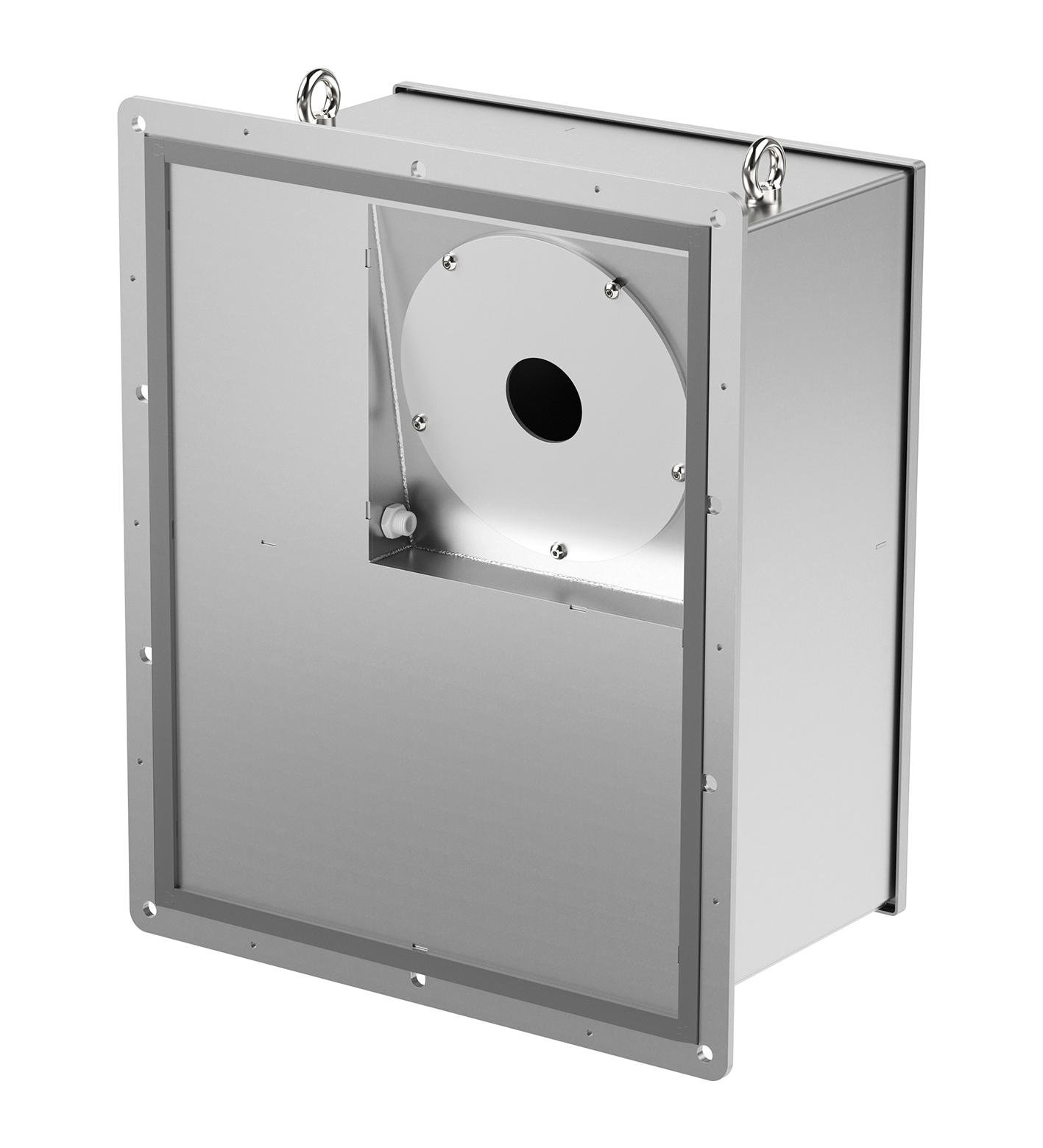

EPV-6100-MP-*
6100 series vent. 6100 series purge and pressurization enclosure protection vent. Series: 6100 Series. System: Ex pxb Purge. Hazardous environment: gas. Connection: . PowerIntrinsically safe connectio...
6100 series vent. 6100 series purge and pressurization enclosure protection vent. Series: 6100 Series. System: Ex pxb Purge. Hazardous environment: gas. Connection: . PowerIntrinsically safe connection to the 6100 control unitSignal2-wire intrinsically safe pressure switchConnection2-wire: . Power: Intrinsically safe connection to the 6100 control unit. Signal: 2-wire intrinsically safe pressure switch. Connection: 2-wire. Protective gas supply: Clean air or inert gas. Safe pressure: 0.625 mbar [0.25 in wc / 6.4 mm wc). Enclosure pressure: 0 ... 50 mbar (0 ... 20.1 in wc / 0 ... 510.5 mm wc). Flow rate for leakage compensation: depends on enclosure seal based on completely sealed enclosure. Breaking pressure: Approx. 10 mbar (4.0 in wc)Approx. 25 mbar (10.0 in wc)Approx. 30 mbar (12.1 in wc)Approx. 40 mbar (16.1 in wc)Approx. 50 mbar (20.1 in wc). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 80 °C (-4 ... 176 °F). Relative humidity: 5 ... 95 %, noncondensing. Vibration resistance: 1 g , 3 ... 150 Hz , all axes. Impact resistance: 30g, 11 ms, all axes. Material: 316L stainless steel (housing). Installation: -gravity dependent -air outlet, screen side must be facing down. Mass: 17 kg (37 lb). Certificate: CML 19 ATEX 1425X. Marking II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb: . Marking: II2G Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-2:2014 EN 60079-7:2015 EN 60079-11:2012. IECEx approval: IECEx CML 19.0156X Ex db eb ib [ib Gb][pxb Gb] IIC T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. Supplemental Standards : EN 61010-1:2010
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
