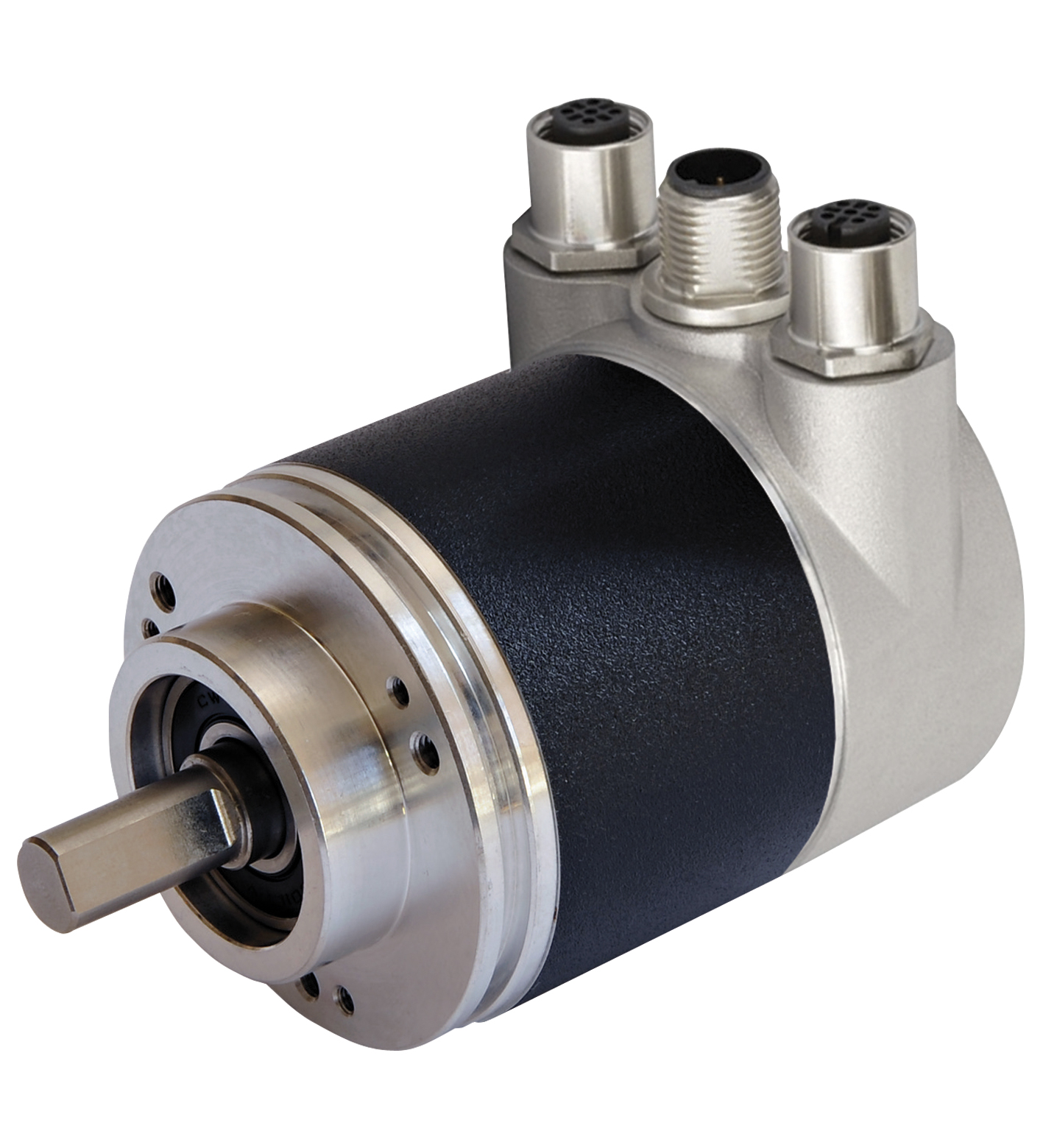

EVM58-EC

Multiturn absolute rotary encoder. Industrial standard housing ∅58 mm, EtherCAT interface, 30 Bit multiturn, Two Ethernet connectors with built in hub, Servo or clamping flange, Enclosure type: 58 mm,...

Multiturn absolute rotary encoder. Industrial standard housing ∅58 mm, EtherCAT interface, 30 Bit multiturn, Two Ethernet connectors with built in hub, Servo or clamping flange, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: EtherCAT®, Detection type: photoelectric sampling, Interface type: EtherCAT® <BR>CoE (CANopen over EtherCAT, according to CiA DS-301 and DS-406 device profile CiA), Physical : Ethernet. Detection type: photoelectric sampling. Device type: Multiturn absolute rotary encoder. Operating voltage: 10 ... 30 V DC , safe galvanic isolation per EN 50178. Power consumption: max. 2.5 W. Linearity: ± 0.5 LSB ( up to 12 Bit ) ± 2 LSB ( up to 16 Bit ). Output code: binary code. Code course (counting direction): programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending). Interface type: EtherCAT® CoE (CANopen over EtherCAT, according to CiA DS-301 and DS-406 device profile CiA). Resolution: . Single turnup to 16 BitMultiturnup to 14 BitOverall resolutionup to 30 Bit: . Single turn: up to 16 Bit. Multiturn: up to 14 Bit. Overall resolution: up to 30 Bit. Physical: Ethernet. Transfer rate: 10 MBit/s / 100 MBit/s. Cycle time: ≥ 65 µs. Connector: Ethernet: 2 sockets M12 x 1, 4-pin, D-codedSupply: 1 plug M12 x 1, 4-pin, A-coded. Degree of protection: DIN EN 60529,shaft side: IP65 (without shaft seal)/ IP66/67 (with shaft seal)housing side: IP66/67 Stainless steel version (INOX): completely IP66/67. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 6 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 1000 Hz. Operating temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 98 % , no moisture condensation. Shaft dimensions: ∅6f6 mm x 10 mm or ∅10h8 mm x 20 mm. Material: . Combination 1housing: powder coated aluminumflange: aluminumshaft: stainless steelCombination 2 (Inox)housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303: . Combination 1: housing: powder coated aluminumflange: aluminumshaft: stainless steel. Combination 2 (Inox): housing: stainless steel 1.4305 / AISI 303flange: stainless steel 1.4301 / AISI 304shaft: stainless steel 1.4305 / AISI 303. Mass: approx. 370 g (combination 1) approx. 840 g (combination 2). Rotational speed: max. 12000 min -1. Moment of inertia: 30 gcm2. Starting torque: ≤ 3 Ncm (version without shaft seal). Shaft load: . Axial40 NRadial110 N: . Axial: 40 N. Radial: 110 N. Dimensions: . Diameter59 mm: . Diameter: 59 mm

Brand	Pepperl Fuchs
Lifecycle status	active
