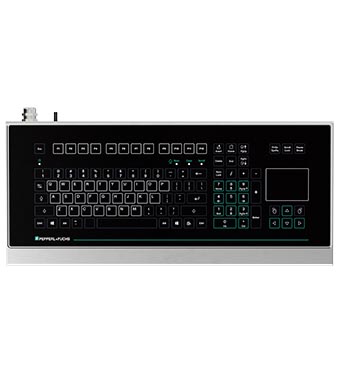

EXTA4-*1-**-K4* (2024 Generation)
Ex i keyboard with touch pad. Ex i keyboard with touch pad, Degree of protection: IP66, Stainless steel housing, National layout variants available for US, GER and FR, PC-compatible-keyboard with 105...
Ex i keyboard with touch pad. Ex i keyboard with touch pad, Degree of protection: IP66, Stainless steel housing, National layout variants available for US, GER and FR, PC-compatible-keyboard with 105 short stroke keys, Designed for use in Zone 1/21 and Zone 2/22 hazardous areas, USB interface with USB cable, UL listed for USA and Canada. Type: Keyboard with touch pad. Suitable components: SK-PC-Z1D1-UU1-10-HS and SK-PC-D2-UU1-10-HS. Rated voltage: Ex i, via data line. Keyboard: 105 short stroke keys Keyboard layout: US international, German, French. Touchpad: . Active PrincipleCapacitiveResolution10 Pts/mm x 10 Pts/mmDimensions66 x 50: . Active Principle: Capacitive. Resolution: 10 Pts/mm x 10 Pts/mm. Dimensions: 66 x 50. Interface type: USB. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2021 (Ind loc)EN 61000-6-4:2007+A1:2011EN 55011:2016+A11:2020 (Class B): . Directive 2014/30/EU: EN 61326-1:2021 (Ind loc)EN 61000-6-4:2007+A1:2011EN 55011:2016+A11:2020 (Class B). Explosion protection: . Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018 EN 60079-11:2012. RoHS: . Directive 2011/65/EU (RoHS)EN IEC 63000:2018-12: . Directive 2011/65/EU (RoHS): EN IEC 63000:2018-12. Degree of protection: IP66 (with housing). Ambient temperature: -20 ... 50 °C (-4 ... 122 °F). Storage temperature: -20 ... 70 °C (-4 ... 158 °F). Relative humidity: max. 85 % , non-condensing. Material: anodized aluminum , stainless steel (F1- Mounting Option), Polyester foil. Mass: 1.2 kg (without housing). Dimensions: 502 mm x 222 mm x 66 mm. Cut out dimensions: 450 mm x 152 mm. Cable length: 5 m / 2 m / 1 m. EU-type examination certificate: Zone 1/21BVS 07 ATEX E 163 X Zone 2/22BVS 21 ATEX E 009 X. MarkingZone 1/21 II 2G Ex ib IIC T4 Gb[exsign] II 2D Ex ib IIIB T135°C Db Zone 2/22[exsign] II 3G Ex ic IIC T4 Gc[exsign] II 3D Ex ic IIIB T135°C Dc: . Marking: Zone 1/21 II 2G Ex ib IIC T4 Gb[exsign] II 2D Ex ib IIIB T135°C Db Zone 2/22[exsign] II 3G Ex ic IIC T4 Gc[exsign] II 3D Ex ic IIIB T135°C Dc. UL approval: . Control drawing116-0357EApproved forClass I Div 2, Gr A, B, C, D; T5Class II, Div 2; Gr F, G; T5Class III Class I, Zone 2; Gr IIC; T5Class II, Zone 22; Gr IIIB; T85°CClass III, Zone 22; Gr IIIA; T85°C: . Control drawing: 116-0357E. Approved for: Class I Div 2, Gr A, B, C, D; T5Class II, Div 2; Gr F, G; T5Class III Class I, Zone 2; Gr IIC; T5Class II, Zone 22; Gr IIIB; T85°CClass III, Zone 22; Gr IIIA; T85°C. IECEx approval: . IECEx certificateZone 1/21IECEx BVS 08.0022X Zone 2/22IECEx BVS 08.0022XIECEx markingZone 1/21Ex ib IIC T4 GbEx ib IIIB T135°C Db Zone 2/22Ex ic IIC T4 GcEx ic IIIB T135°C Dc: . IECEx certificate: Zone 1/21IECEx BVS 08.0022X Zone 2/22IECEx BVS 08.0022X. IECEx marking: Zone 1/21Ex ib IIC T4 GbEx ib IIIB T135°C Db Zone 2/22Ex ic IIC T4 GcEx ic IIIB T135°C Dc
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
