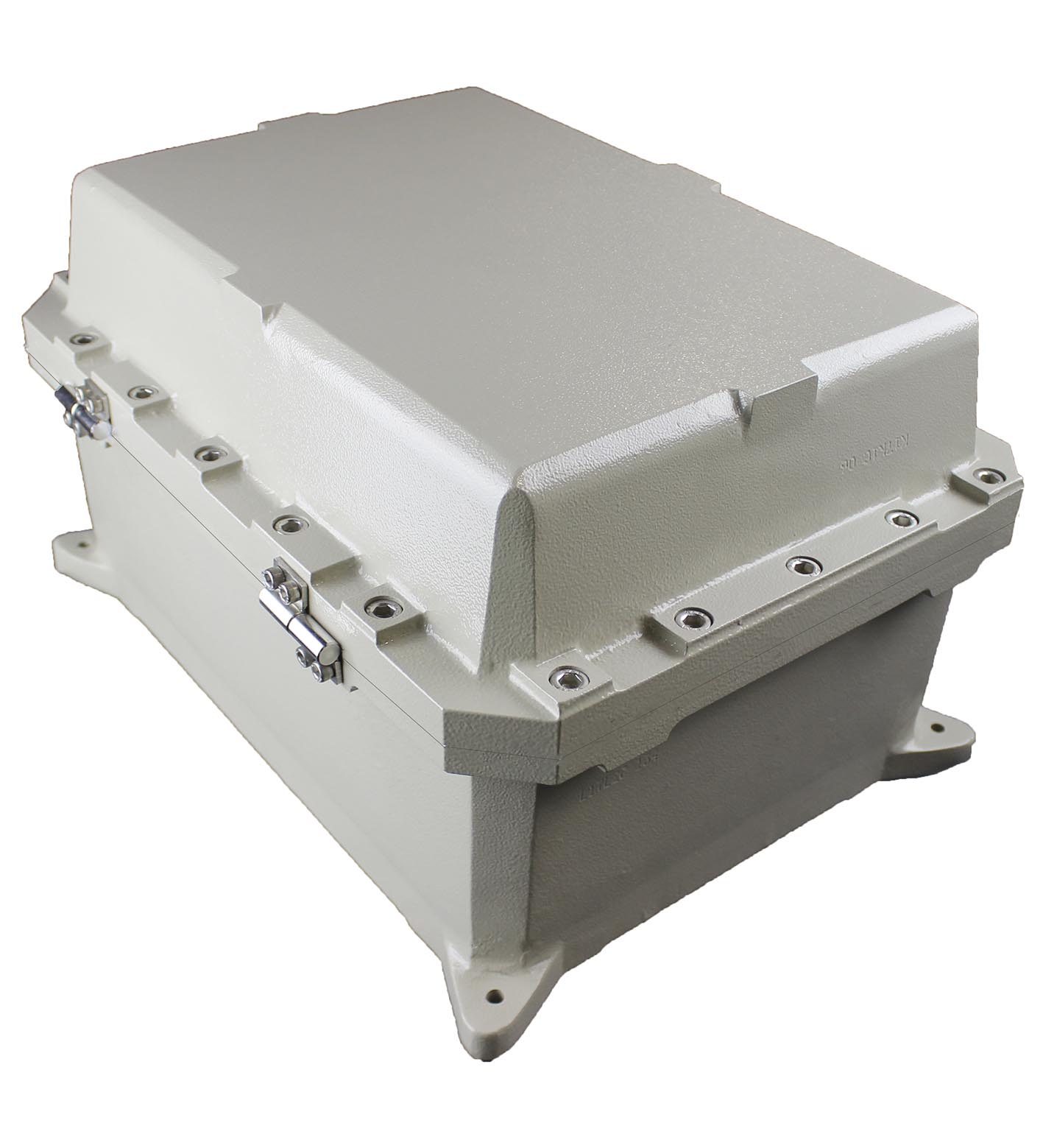

F* CP

Solutions Ex d IIB based on F* Enclosures, Aluminum. Aluminum alloy, Ex d certified, Installation in Zone 1 and Zone 2, Gas group IIB+H<SUB>2</SUB>, Gas group IIB, Integration of electrical components...

Solutions Ex d IIB based on F* Enclosures, Aluminum. Aluminum alloy, Ex d certified, Installation in Zone 1 and Zone 2, Gas group IIB+H<SUB>2</SUB>, Gas group IIB, Integration of electrical components and operating elements in Ex d enclosures as per customer specification, Customizable configuration as per specification, Various enclosure size and design variants, Thermo-resistant tempered glass window, Degree of protection IP66. Operating voltage: application-specific. Operating current: application-specific. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: detachable , optional hinges. Cover fixing: stainless steel socket cap head screws. Screwssee PDF data sheet: . Screws: see PDF data sheet. Cover seal: chloroprene. Flamepath grease: Fluid film grade AR. Degree of protection: IP66. Cable entry: see PDF data sheet. Material: . Enclosurealuminum alloyGlassthermo-resistant tempered glassFinishepoxy coated RAL 7032: . Enclosure: aluminum alloy. Glass: thermo-resistant tempered glass. Finish: epoxy coated RAL 7032. Mass: see PDF data sheet valid for empty enclosure, will increase according to integrated components. Dimensions: see PDF data sheet values might differ slightly due to casting and manufacturing tolerances. Mounting: see PDF data sheet. Grounding: M6 external grounding points. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) depending on integrated components. EU-type examination certificate: see PDF data sheet. Markingsee PDF data sheetMaximum power dissipationsee PDF data sheet maximum power dissipation at T4/+40 °C enclosure without window: . Marking: see PDF data sheet. Maximum power dissipation: see PDF data sheet maximum power dissipation at T4/+40 °C enclosure without window. IECEx approval: see PDF data sheet. Degree of protection: EN60529. CE marking: 0102. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
