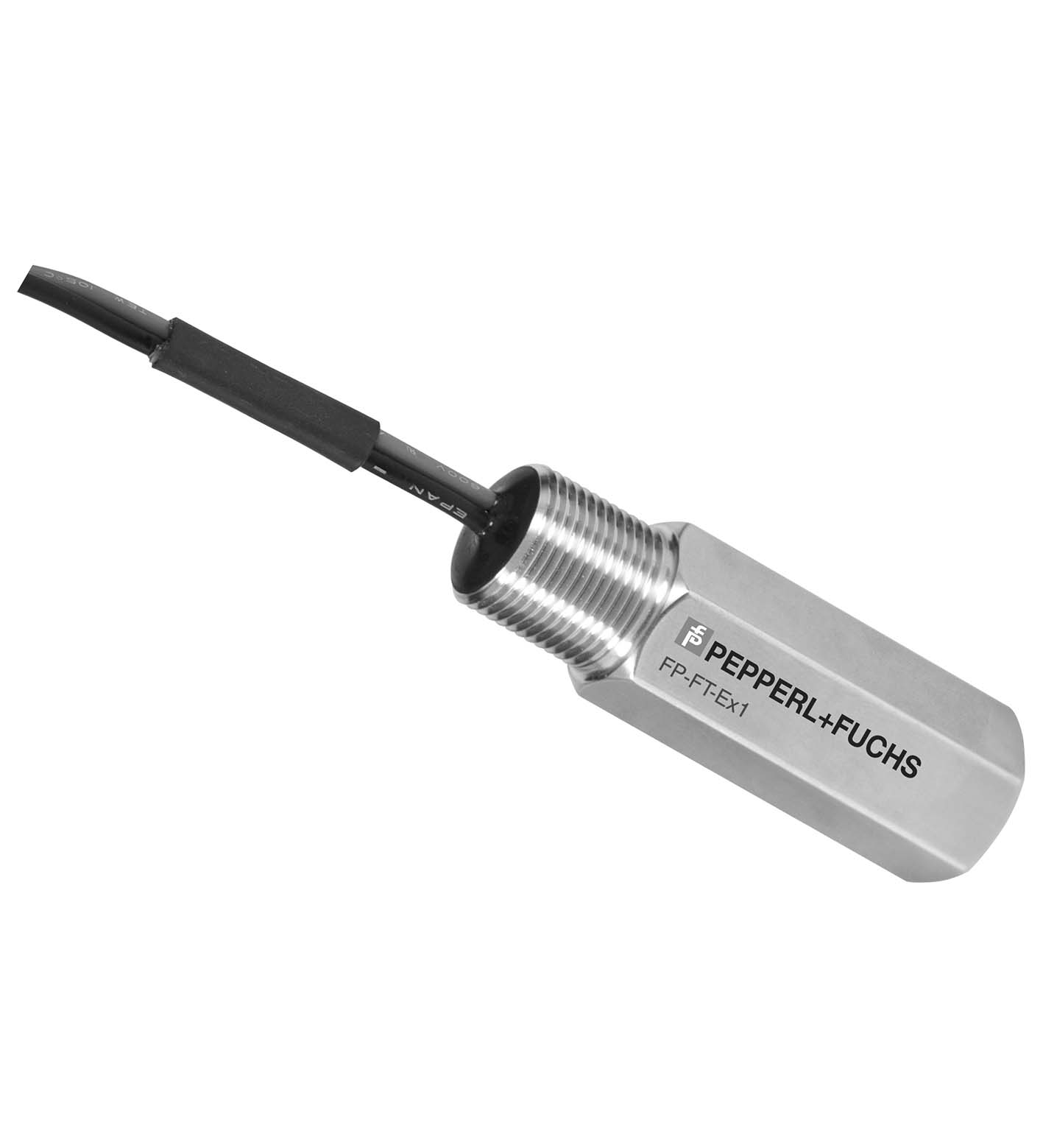

F*-FT-Ex1
Fieldbus Terminator. Fieldbus terminator, threaded, for installation via threaded inlet in field housing (Ex ia / Ex d), IP67, Terminator in stainless steel housing, Intrinsically safe, FISCO and flam...
Fieldbus Terminator. Fieldbus terminator, threaded, for installation via threaded inlet in field housing (Ex ia / Ex d), IP67, Terminator in stainless steel housing, Intrinsically safe, FISCO and flameproof enclosure (Ex d), Installation on open cable gland, Choice of threads 20 mm, Pg 13.5 mm or 1/2" NPT, For FOUNDATION Fieldbus H1 and PROFIBUS PA, IECEx approval, Europe, Canada. Design / Mounting: Outside installation. Installation in hazardous area: Zone 1 / Div. 1. Connection: 2-wire cable, red+, black-. Rated voltage: max. 32 V DC. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21:2011. Degree of protection: IEC/EN 60529. Fieldbus standard: IEC 61158-2. Ambient temperature: -50 ... 85 °C (-58 ... 185 °F). Storage temperature: -50 ... 85 °C (-58 ... 185 °F). Core cross section: 0.75 mm2. Housing: 77 mm x 22 mm. Housing material: Stainless steel 1.4401/316. Degree of protection: IP67. Mass: 100 g. Mounting: 20 mm ISO thread PG13.5 thread 1/2 NPT thread. EU-type examination certificate: DMT 01 ATEX 104 X. Marking II 1G Ex ia IIC T6 ... T4 Ga , [exsign] II 2G Ex db ia IIC T6 ... T4 Gb , [exsign] II 2G Ex db mb IIC T6 ... T4 Gb , max. permissible explosion (reference) pressure of the Ex d enclosure: 20 barTemperature classT6 for ambient temperature ≤ 60 °CT5 for ambient temperature ≤ 75 °CT4 for ambient temperature ≤ 85 °C: . Marking: II 1G Ex ia IIC T6 ... T4 Ga , [exsign] II 2G Ex db ia IIC T6 ... T4 Gb , [exsign] II 2G Ex db mb IIC T6 ... T4 Gb , max. permissible explosion (reference) pressure of the Ex d enclosure: 20 bar. Temperature class: T6 for ambient temperature ≤ 60 °CT5 for ambient temperature ≤ 75 °CT4 for ambient temperature ≤ 85 °C. Maximum values: acc. to FISCO. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2014 , EN 60079-11:2012 , EN 60079-18:2015: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-1:2014 , EN 60079-11:2012 , EN 60079-18:2015. IECEx approval: IECEx BVS 10.0022X. Approved forEx ia IIC T6 ... T4 Ga , Ex db ia IIC T6 ... T4 Gb , Ex db mb IIC T6 ... T4 Gb: . Approved for: Ex ia IIC T6 ... T4 Ga , Ex db ia IIC T6 ... T4 Gb , Ex db mb IIC T6 ... T4 Gb. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
