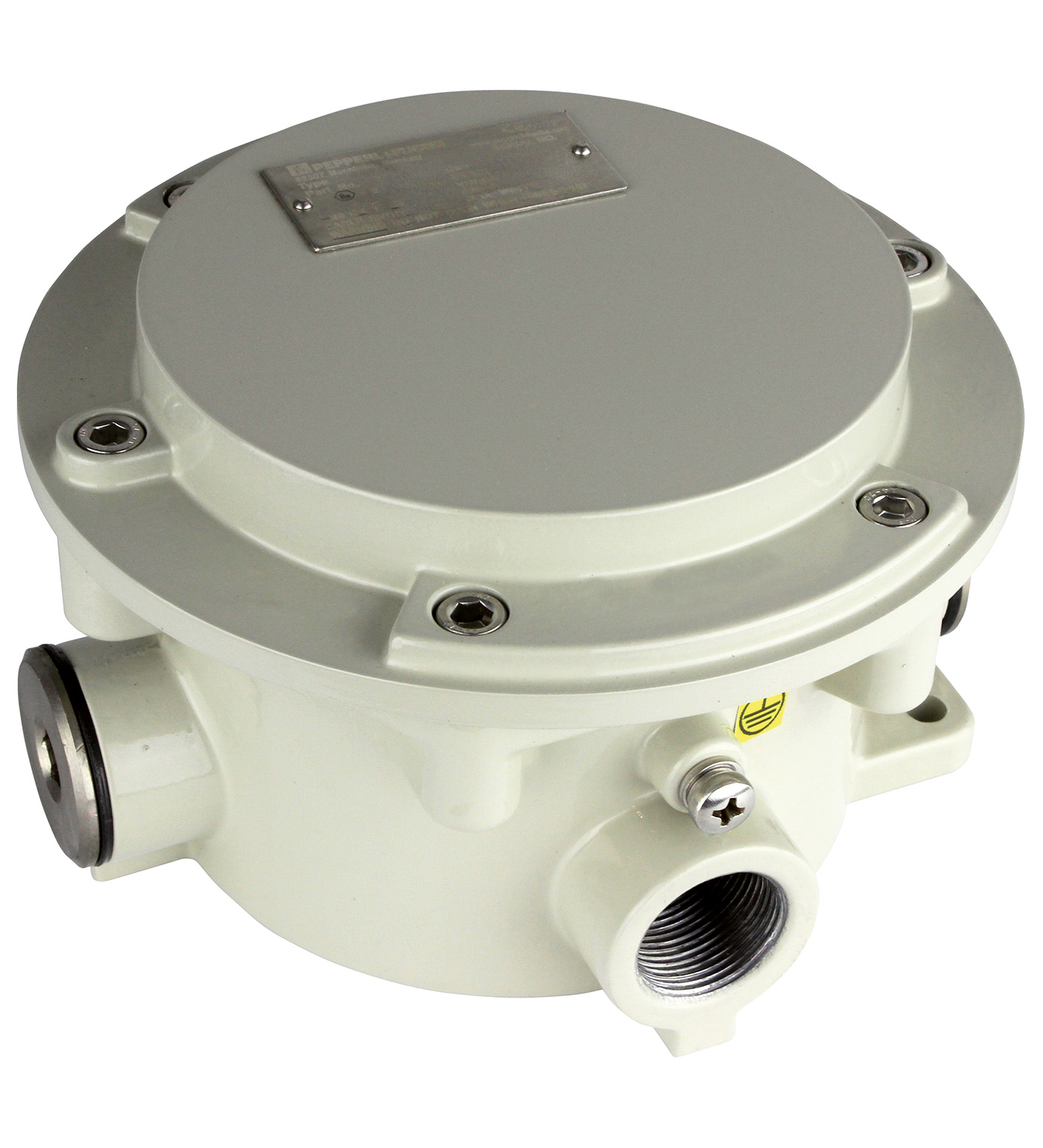

F* TB

Terminal Boxes Ex d, Aluminum. Ex d and Ex tD certified, Ex d certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIC, Gas group IIB, Aluminum enclosure, Customizable configurati...

Terminal Boxes Ex d, Aluminum. Ex d and Ex tD certified, Ex d certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIC, Gas group IIB, Aluminum enclosure, Customizable configuration of terminals, cable entries and cable gland types as per specification, Degree of protection IP66, Enclosure: aluminum alloy. Operating voltage: see PDF data sheet. Operating current: see PDF data sheet. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure range: see PDF data sheet. Enclosure cover: detachable. Cover fixing: stainless steel socket cap head screws. Screwssee PDF data sheetYield stressmin. 450 N/mm2: . Screws: see PDF data sheet. Yield stress: min. 450 N/mm2. Cover seal: chloroprene / nitrile O-ring. Flamepath grease: Fluid film grade AR. Degree of protection: IP66. Cable entry: see PDF data sheet. Terminal assembly: . Number of railssee PDF data sheetTerminal typeStandard see PDF data sheet, other terminal types optional: . Number of rails: see PDF data sheet. Terminal type: Standard see PDF data sheet, other terminal types optional. Material: . Enclosurealuminum alloyFinishepoxy coated RAL 7032: . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7032. Mass: see PDF data sheet valid for empty enclosure, will increase according to integrated components. Dimensions: see PDF data sheet. Mounting: see PDF data sheet. Grounding: M6 external grounding points. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F) depending on integrated components. EU-type examination certificate: see PDF data sheet. Maximum power dissipationsee PDF data sheet maximum power dissipation at T4/+40 °C: . Maximum power dissipation: see PDF data sheet maximum power dissipation at T4/+40 °C. IECEx approval: see PDF data sheet. Degree of protection: EN60529. CE marking: 0102. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
