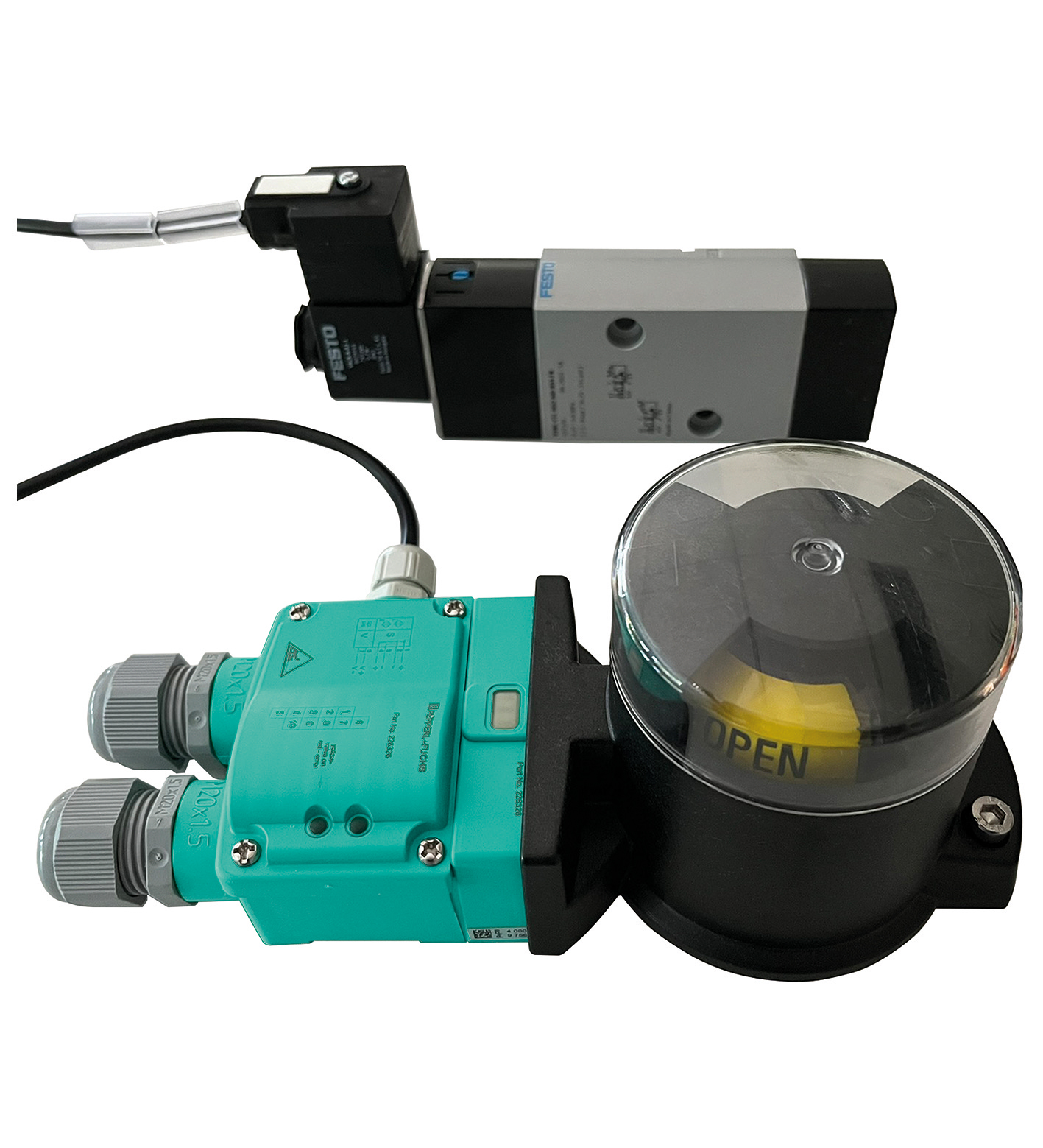

F31K-B3B-B31-BY-SET

Inductive Valve Sensor Assembly. Valve position detection, Solenoid valve output, Switching function: Normally open/closed (NO/NC) programmable, Output type: AS-Interface, Operating voltage: 26.5 ......

Inductive Valve Sensor Assembly. Valve position detection, Solenoid valve output, Switching function: Normally open/closed (NO/NC) programmable, Output type: AS-Interface, Operating voltage: 26.5 ... 31.9 V via AS-i bus system, Type of voltage: DC, Connection (system side): screw terminals. Switching function: Normally open/closed (NO/NC) programmable. Output type: AS-Interface. AS-Interface specification: V3.0. Required gateway specification: ≥ V2.1. Description: Solenoid valve: monostable, function changeable 3/2- or 5/2-way valve, with manual override working pressure 2.5 ... 8 bar pneumatic connection: 1/4 NPT. Operating voltage: 26.5 ... 31.9 V via AS-i bus system. Operating current: 0 ... 100 mA. Voltage: 24 V DC. Power consumption: 0.7 W. Standard conformity: . StandardsEN IEC 60947-5-2 VDI / VDE 3845: . Standards: EN IEC 60947-5-2 VDI / VDE 3845. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Connection (system side): screw terminals. Core cross section (system side): 1.5/2.5 mm2 flexible/rigid. Tightening torque, fastening screws: ≤ 5 Nm. Tightening torque, housing screws: 1 Nm. Tightening torque, cable gland: M20 x 1.5 ; max. 7 Nm M12 x 1.5 ; max. 1.5 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
