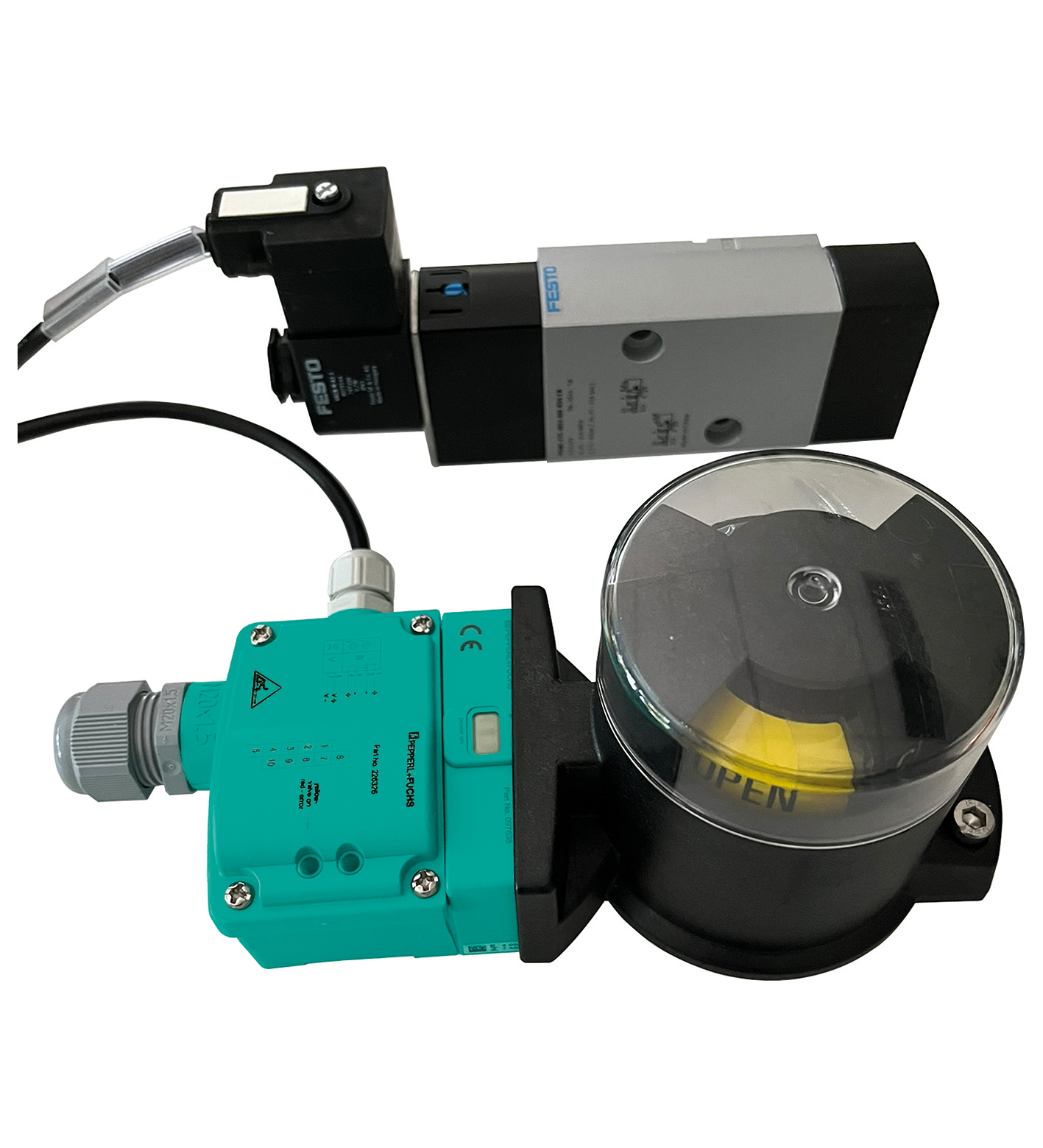

F31K-Z8-K-BY-SET

Inductive Valve Sensor Assembly. Valve position detection, Solenoid valve output, Switching function: 2 x normally open (NO), Output type: Two-wire, Operating voltage: 6 ... 60 V DC, Type of voltage:...

Inductive Valve Sensor Assembly. Valve position detection, Solenoid valve output, Switching function: 2 x normally open (NO), Output type: Two-wire, Operating voltage: 6 ... 60 V DC, Type of voltage: DC, Connection (system side): Cage tension spring terminals. Switching function: 2 x normally open (NO). Output type: Two-wire. Description: Solenoid valve: monostable, function changeable 3/2- or 5/2-way valve, with manual override working pressure 2.5 ... 8 bar pneumatic connection: 1/4 NPT. Operating voltage: 6 ... 60 V DC. Operating current: 4 ... 100 mA. Voltage: 24 V DC. Power consumption: 0.7 W. Standard conformity: . StandardsEN IEC 60947-5-2 VDI / VDE 3845: . Standards: EN IEC 60947-5-2 VDI / VDE 3845. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Connection (system side): Cage tension spring terminals. Core cross section (system side): 1.5/2.5 mm2 flexible/rigid. Tightening torque, fastening screws: ≤ 5 Nm. Tightening torque, housing screws: 1 Nm. Tightening torque, cable gland: M20 x 1.5 ; max. 7 Nm M12 x 1.5 ; max. 1.5 Nm

Brand	Pepperl Fuchs
Lifecycle status	active
