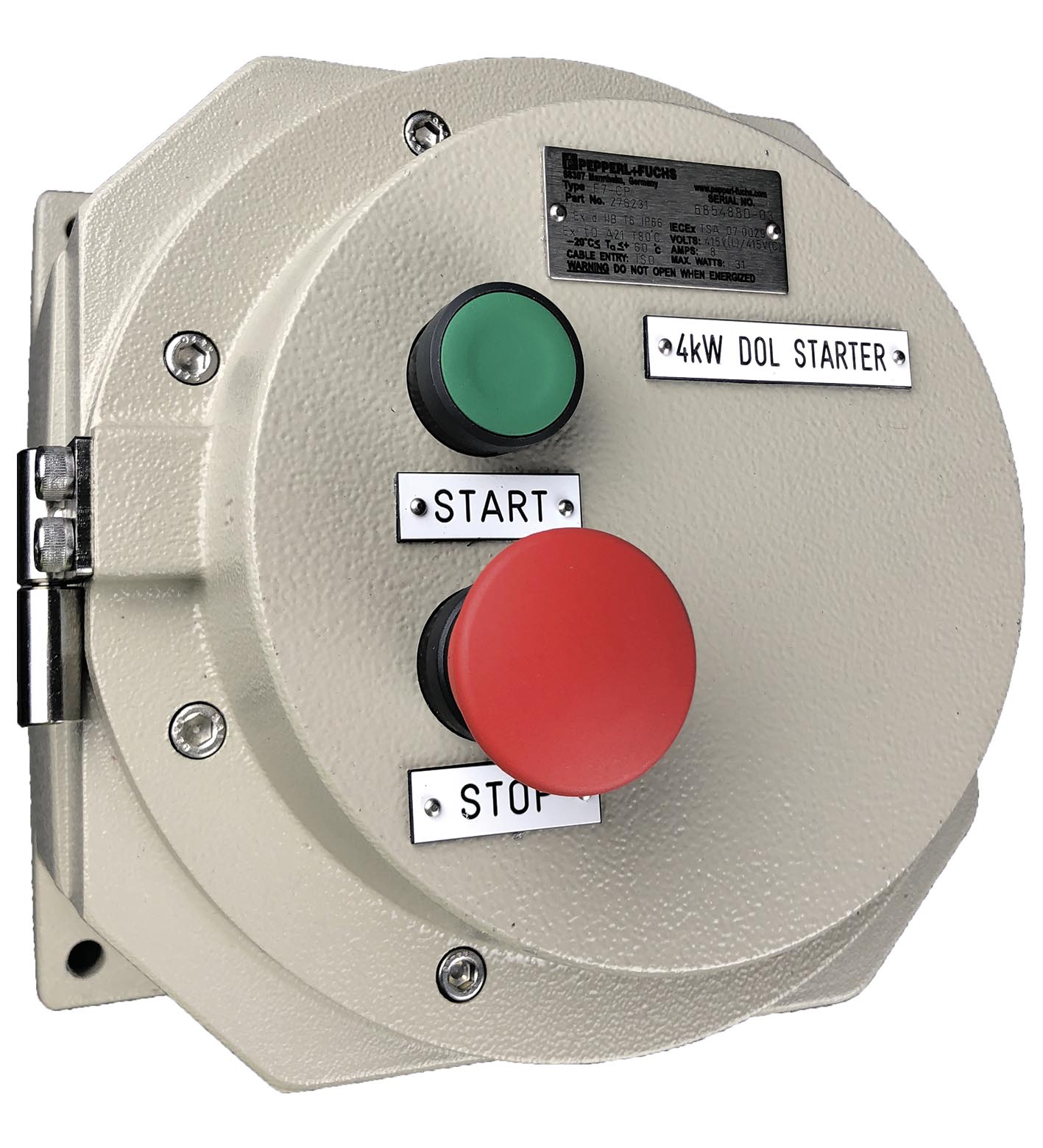

F7-DOL*

Motor Starters Ex d IIB. Various power ratings available, Coil voltage 415V, Ex d and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIB, Aluminum enclosure, Suitable...

Motor Starters Ex d IIB. Various power ratings available, Coil voltage 415V, Ex d and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIB, Aluminum enclosure, Suitable for Ex d motors, Degree of protection IP66, Function: direct online starter, Enclosure: aluminum alloy. Operating voltage: 415 V. Operating current: see PDF data sheet. Terminal capacity: . Main terminals capacity4 mm2Main terminals torque1.7 NmGrounding terminals capacityM6 grounding bolt: . Main terminals capacity: 4 mm2. Main terminals torque: 1.7 Nm. Grounding terminals capacity: M6 grounding bolt. Contactor rating: see PDF data sheet. Overload relay: see PDF data sheet. Phases: 3. Function: direct online starter. Switching diagramsee switching diagram overview: . Switching diagram: see switching diagram overview. Thread type: metric ISO pitch 1.5 mm. Enclosure range: F7. Enclosure cover: detachable , hinged. Cover fixing: stainless steel socket cap head screws. ScrewsM6Number8Tightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2: . Screws: M6. Number: 8. Tightening torque: 3 Nm. Material of screws: stainless steel. Yield stress: min. 450 N/mm2. Cover seal: chloroprene. Flamepath grease: Fluid film grade AR. Degree of protection: IP66. Cable entry face A: . M20 quantity2M20 typeStopping Plugs: . M20 quantity: 2. M20 type: Stopping Plugs. Cable entry face B: . M20 quantity2: . M20 quantity: 2. Material: . Enclosurealuminum alloyFinishepoxy coated RAL 7032: . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7032. Mass: approx. 5 kg. Dimensions: . External dimension (A)210 mmExternal dimension (B)210 mmExternal dimension (C)158 mmExternal dimension with operating element (C1)199 mmMounting holes distance (G)187 mmMounting holes distance (H)187 mmMounting holes diameter (J)9 mm: . External dimension (A): 210 mm. External dimension (B): 210 mm. External dimension (C): 158 mm. External dimension with operating element (C1): 199 mm. Mounting holes distance (G): 187 mm. Mounting holes distance (H): 187 mm. Mounting holes diameter (J): 9 mm. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of stopping plugs: . Nut torque at enclosure (SW1): see datasheets of stopping plugs. Mounting: see PDF data sheet. Grounding: M6 external grounding points. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). EU-type examination certificate: SIRA 07 ATEX 1134. Marking II 2 GD Ex d IIB T* Ex tD A21 T6/T80 °C @ Ta +60 °CMaximum power dissipation31 W: . Marking: II 2 GD Ex d IIB T* Ex tD A21 T6/T80 °C @ Ta +60 °C. Maximum power dissipation: 31 W. IECEx approval: IECEx TSA 07.0029. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0102. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
