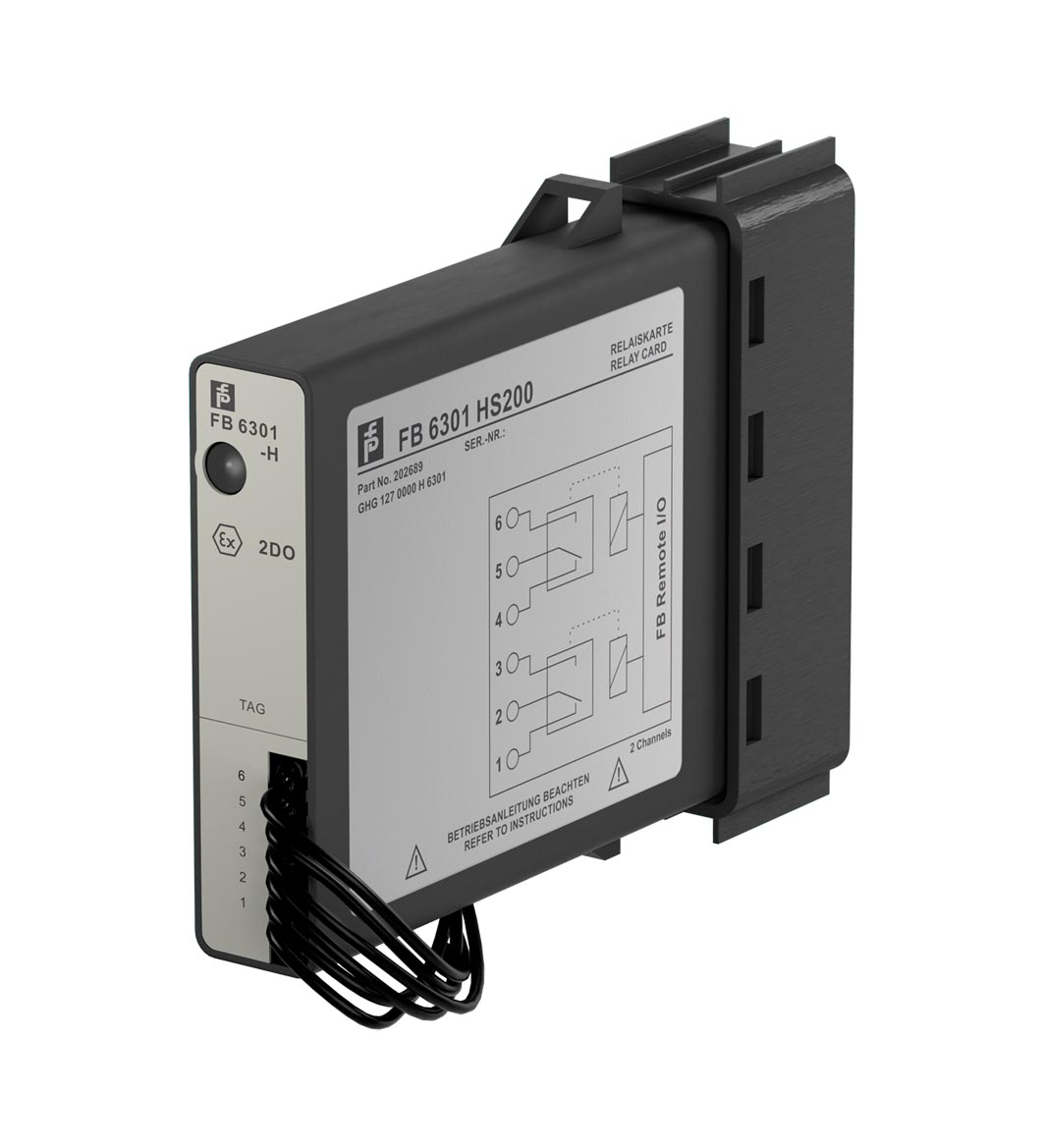

FB6301*

Relay output. 2-channel, Outputs wired to Ex e terminals, Installation in suitable enclosures in Zone 1 or Zone 21, Positive or negative logic selectable. Connection: backplane bus. Rated voltage: 12...

Relay output. 2-channel, Outputs wired to Ex e terminals, Installation in suitable enclosures in Zone 1 or Zone 21, Positive or negative logic selectable. Connection: backplane bus. Rated voltage: 12 V DC , only in connection with the power supplies FB92**. Power consumption: 0.65 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 2. Connection: wire ends 1 (white), 2 (brown), 3 (green), 4 (yellow), 5 (grey), 6 (pink). Minimum load: 1 V , 1 mA. Relay: . Switching voltage24 V DC / 230 V ACSwitching current1 A DC / AC resistive loadSwitching power30 W , 230 VA resistive loadElectrical life0.5 Mio. cycles: . Switching voltage: 24 V DC / 230 V AC. Switching current: 1 A DC / AC resistive load. Switching power: 30 W , 230 VA resistive load. Electrical life: 0.5 Mio. cycles. Response time: 20 ms (depending on bus cycle time). Contact Material: AgPd gold plated. Watchdog: within 0.5 s the device goes in safe state, e.g. after loss of communication. LED indicator: LED green: supply LED yellow: signal (status). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Low voltage: . Directive 2006/95/ECEN 61010-1: . Directive 2006/95/EC: EN 61010-1. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 50 m/s2, number of shock directions 6, number of shocks per direction 100. Vibration resistance: frequency range 5 ... 500 Hz, amplitude 5 ... 13.2 Hz ± 1.5 mm, 13.2 ... 100 Hz 1g, sweep rate 1 octave/min, duration 10 sweeps 5 Hz - 100 Hz - 5 Hz. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Connection: wire ends or shielded cable tailwiring connection: separately covered Ex e terminals required. Mass: approx. 350 g. Dimensions: 28 x 107 x 132 mm (1.1 x 4.2 x 5.2 inch). EC-Type Examination Certificate: PTB 97 ATEX 1074 U. Group, category, type of protection II 2 G Ex d IIC Gb: . Group, category, type of protection: II 2 G Ex d IIC Gb. Galvanic isolation: . Output/power supply, internal bussafe electrical isolation acc. to EN 61010-1: . Output/power supply, internal bus: safe electrical isolation acc. to EN 61010-1. Directive conformity: . Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006: . Directive 2014/34/EU: EN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006. ATEX approval: BVS 11 ATEX E 093X. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV: . Lloyd Register: 15/20021. DNV GL Marine: TAA0000034. American Bureau of Shipping: T1450280/UN. Bureau Veritas Marine: 22449/B0 BV
