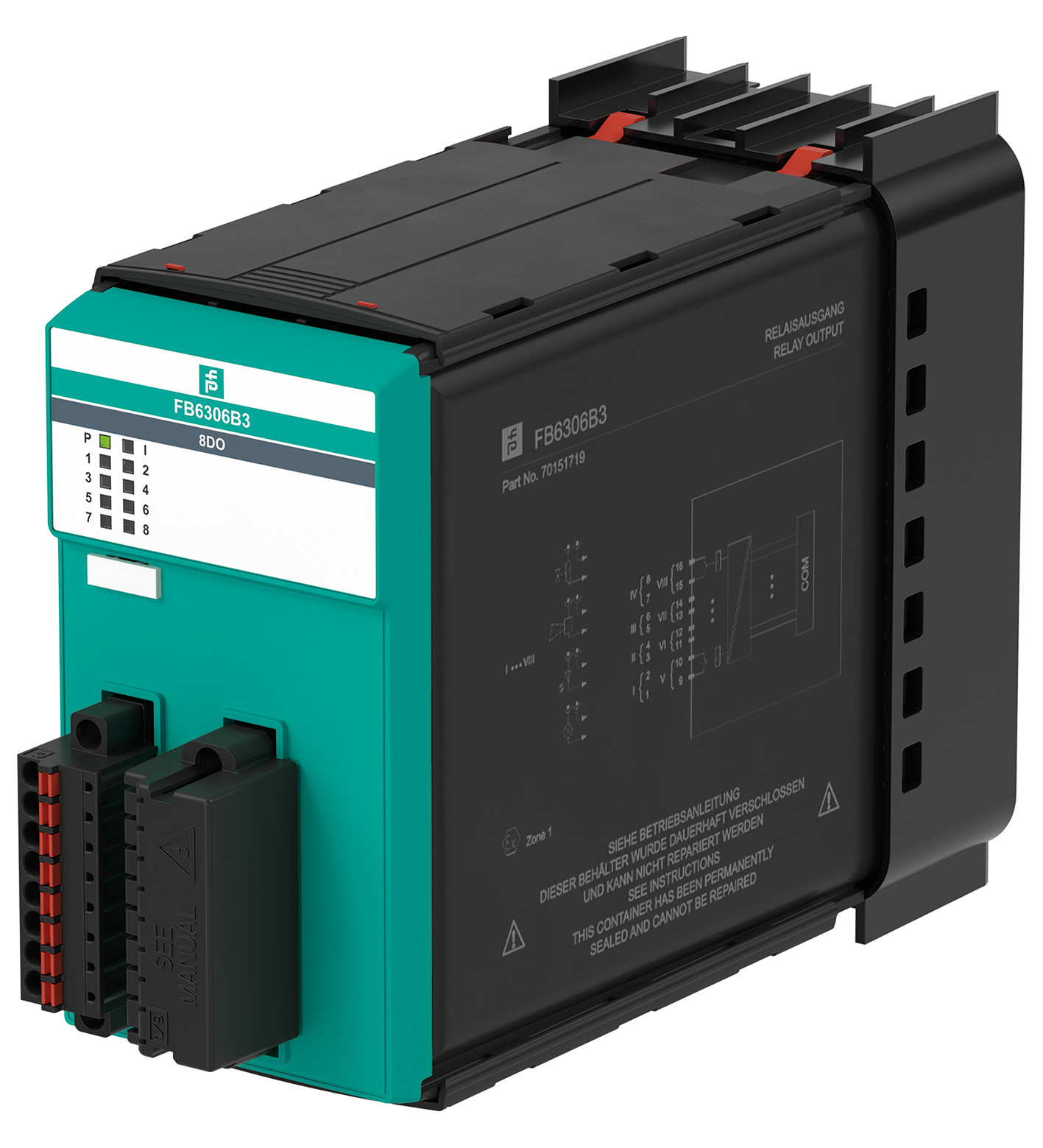

Relay output. 8-channel, Installation in suitable enclosures in Zone 1, Positive or negative logic selectable, Simulation mode for service operations (forcing), Explosion protection: Ex e connection. Occupied slots: 2. Connection: backplane bus. Rated voltage: 12 V DC +4/-2 % , only in connection with the power supplies FB92**. Power dissipation: 1.9 W. Power consumption: 1.4 W. Connection: backplane bus. Interface: manufacturer-specific bus to standard com unit. Number of channels: 8. Field device interface: . ConnectionRelay output: . Connection: Relay output. Connection: channel I: 1-2 NO; channel II: 3-4 NO; channel III: 5-6 NO; channel IV: 7-8 NO; channel V: 9-10 NO; channel VI: 11-12 NO; channel VII: 13-14 NO; channel VIII: 15-16 NO. Relay: . Switching voltage30 V DCSwitching current1 A DCSwitch power30 WMinimum load5 V 10 mAElectrical life0.1 million switching cycles at maximum load and temperatureContact MaterialAgPd gold plated: . Switching voltage: 30 V DC. Switching current: 1 A DC. Switch power: 30 W. Minimum load: 5 V 10 mA. Electrical life: 0.1 million switching cycles at maximum load and temperature. Contact Material: AgPd gold plated. Response time: 20 ms (depending on bus cycle time). Watchdog: within 0.5 s the device goes in safe state, e.g. after loss of communication. LED indication: Power LED (P) green: supply Diagnostic LED (I) red: module fault , red flashing: Communication error or active safety shutdown , white: fixed parameter set (parameters from com unit are ignored) , white flashing: requests parameters from com unit Status LED (1-8) yellow: Channel status. Coding: optional mechanical coding via front socket. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Low voltage: . Directive 2014/35/EUEN 61010-1 , EN 60664-1: . Directive 2014/35/EU: EN 61010-1 , EN 60664-1. Degree of protection: IEC 60529. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Relative humidity: EN 60068-2-78. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % non-condensing. Altitude: max. 2000 m. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cycles. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Connection: Ex e spring terminal with protective cover. Mass: approx. 945 g. Dimensions: . Height107 mmWidth57 mmDepth132 mm: . Height: 107 mm. Width: 57 mm. Depth: 132 mm. EU-type examination certificate: FIDI 23 ATEX 0077 U. Marking II 2G Ex db eb q IIC Gb: . Marking: II 2G Ex db eb q IIC Gb. Galvanic isolation: . Output/power supply, internal busbasic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC: . Output/power supply, internal bus: basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0 EN 60079-1 EN 60079-5 EN 60079-7: . Directive 2014/34/EU: EN IEC 60079-0 EN 60079-1 EN 60079-5 EN 60079-7. ATEX approval: FIDI 23 ATEX 0077 U. IECEx approval: . IECEx certificateIECEx FIDI 23.0009UIECEx markingEx db eb q IIC Gb: . IECEx certificate: IECEx FIDI 23.0009U. IECEx marking: Ex db eb q IIC Gb. System information: The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
