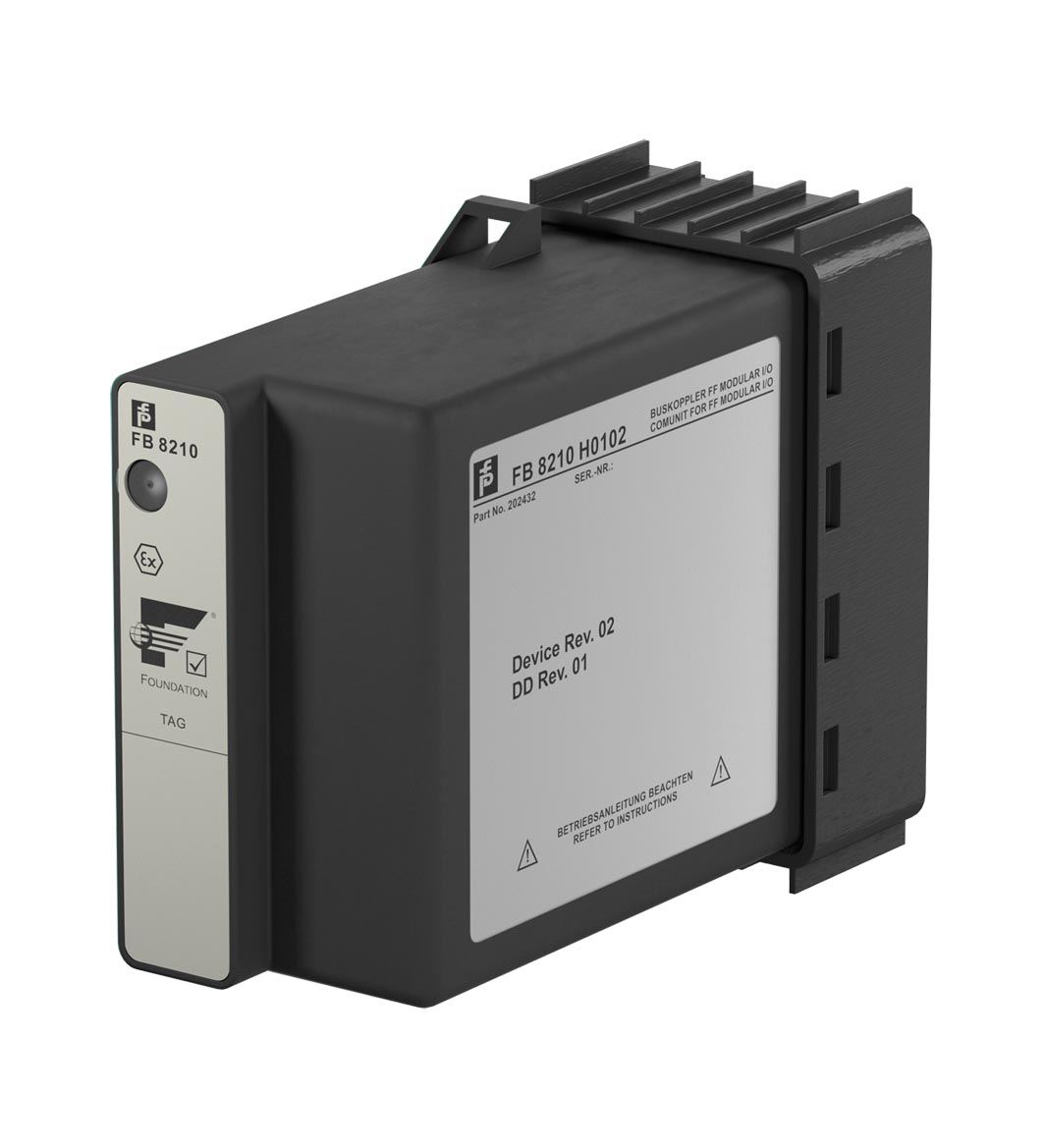

FB8210*

Com Unit for FOUNDATION Fieldbus Modular I/O. Interface between the I/O modules and the PCS/PLC, Com unit for 20 analog or 40 digital channels, Communication via FOUNDATION Fieldbus H1, HART communica...

Com Unit for FOUNDATION Fieldbus Modular I/O. Interface between the I/O modules and the PCS/PLC, Com unit for 20 analog or 40 digital channels, Communication via FOUNDATION Fieldbus H1, HART communication via service bus, Fieldbus type: FOUNDATION Fieldbus H1. Connection: backplane bus. Rated voltage: 5 V DC , only in connection with the power supplies FB92**. Power consumption: 2 W. Auxiliary energy: 24 V DC Trunk load 20 mA. Fieldbus type: FOUNDATION Fieldbus H1. FOUNDATION Fieldbus: . Connectionwired to Ex e terminals via backplaneBaud rate31.25 kBit/s , MBPProtocolH1 to IEC 1158-2: . Connection: wired to Ex e terminals via backplane. Baud rate: 31.25 kBit/s , MBP. Protocol: H1 to IEC 1158-2. Station connection: directly at the trunk or via spur protector. Number of stations per bus line: . Number of channels per station: max. 20 analog, max. 40 digital. Supported I/O modules: 5 slots, to be filled with (combinations possible):1*08 digital input, 8-channel, NAMUR3*05 analog input, 4-channel, 20 mA (HART via service bus)4*05 analog output, 4-channel, 20 mA (HART via service bus) 5204 Pt100 RTD input, 4-channel5205 thermocouple input, 4-channel6305 relay output, 4-channel, 230 V6306 relay output, 8-channel, 24 V6*08 digital output, 8-channel, Ex i6210-6215 digital output, 4-channel, Ex i power* = variable (2=IS, 3=Ex e). Bus length: max. 1900 m (must not be exceeded by the sum of all trunk and spur lines). Spur length: max. 120 m (depending on the number of field devices. Modular I/O station = 1 field device). Addressing: via PCS (software). Connection: backplane bus. LED indication: LED green (power supply): On = operating, fast flash = cold start LED red (collective alarm): On = internal fault, flashing = no fieldbus LED yellow (operating mode): flashing = active. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Fieldbus standard: IEC 61158-2. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Damaging gas: EN 60068-2-42. Relative humidity: EN 60068-2-56. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Connection: via backplane. Mass: approx. 750 g. Dimensions: . Height107 mmWidth57 mmDepth132 mm: . Height: 107 mm. Width: 57 mm. Depth: 132 mm. EU-type examination certificate: PTB 97 ATEX 1074 U. Marking II 2 G Ex d IIC Gb: . Marking: II 2 G Ex d IIC Gb. Directive conformity: . Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006: . Directive 2014/34/EU: EN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006. ATEX approval: PTB 97 ATEX 1075. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UNBureau Veritas Marine22449/B0 BV: . Lloyd Register: 15/20021. DNV GL Marine: TAA0000034. American Bureau of Shipping: T1450280/UN. Bureau Veritas Marine: 22449/B0 BV. System information: The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
