FB8222B.1.EL

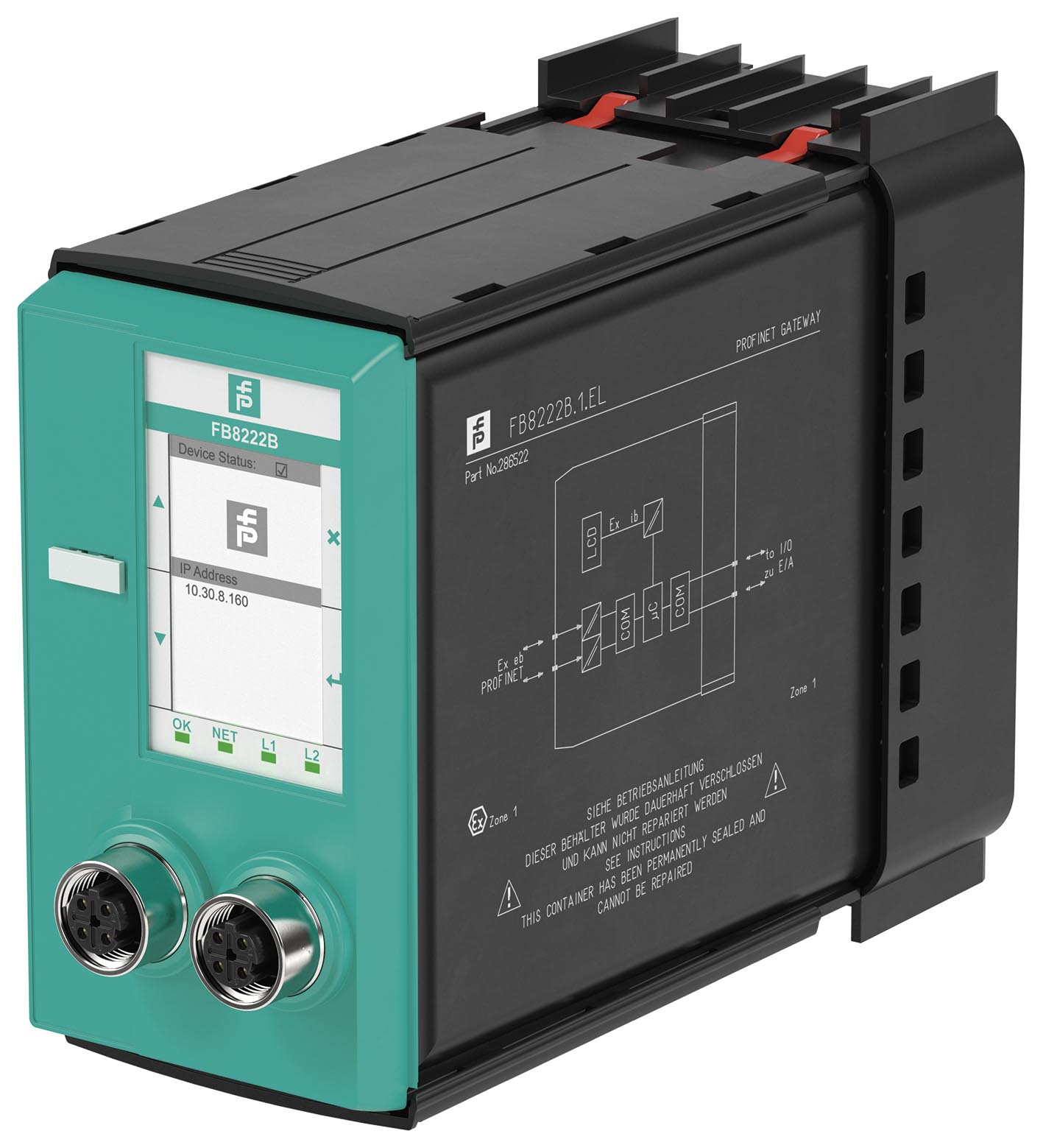

Gateway for PROFINET. Communication via PROFINET, Installation in suitable enclosures in Zone 1, Interface between the I/O modules and the PCS/PLC, Non-volatile memory for configuration and parameter...

Gateway for PROFINET. Communication via PROFINET, Installation in suitable enclosures in Zone 1, Interface between the I/O modules and the PCS/PLC, Non-volatile memory for configuration and parameter settings, Fieldbus type: PROFINET. Connection: backplane bus. Nominal voltage: 12 V DC , only in connection with the power supplies FB92**. Power dissipation: 4.24 W. Power consumption: 4.24 W. Fieldbus type: PROFINET. Connection type: M12 , via front connector. Transfer rate: 10BASE-T, 100BASE-TX 100 MBit/s. Station connection: directly to PCS or PLC or via hubs or switches. Cable type: SFTP in accordance with ISO/IEC 11801 for Cat 5e or better. Bus length: max. 100 m per link. Addressing: DHCP or fixed IP address. Ethernet address: IP V4 address (factory standard setting: 0.0.0.0, auto IP, DHCP). Supported I/O modules: FB1x01*…FB1x03*, FB1x08*, FB1x09*, FB2x01*...FB2x17*, FB3x01*…FB3x06*, FB4x01*, FB4x02*, FB4x04*…FB4x06*, FB5x01*, FB5x02*, FB5x04*…FB5x06*, FB6x01*, FB6x05*, FB6x06*, FB6x08*, FB6x10*…FB6x17*, FB7x04. PROFINET conformance class: CC B. Connection: backplane bus. Ethernet/other circuits: basic insulation according to IEC/EN 61010-1, rated insulation voltage 32 V DC (SELV/PELV). RS 485 interface/other circuits: basic insulation according to IEC/EN 61010-1, rated insulation voltage 50 V DC. Insulation voltage: 1500 V AC acc. to IEEE 802.3u. Power supply, internal bus/other circuits: basic insulation according to IEC/EN 61010-1, rated insulation voltage 30 V DC. LED indication: See below in the front view. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Damaging gas: EN 60068-2-42. Relative humidity: EN 60068-2-78. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Connection: via backplane. Mass: approx. 965 g. Dimensions: . Height107 mmWidth57 mmDepth151 mm: . Height: 107 mm. Width: 57 mm. Depth: 151 mm. EU-type examination certificate: PTB 19 ATEX 2007 U. Marking II 2G Ex db eb ib q IIC Gb: . Marking: II 2G Ex db eb ib q IIC Gb. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015 EN 60079-11:2012: . Directive 2014/34/EU: EN IEC 60079-0:2018 EN 60079-1:2014 EN 60079-5:2015 EN 60079-7:2015 EN 60079-11:2012. ATEX approval: PTB 19 ATEX 2007 U. IECEx approval: . IECEx certificateIECEx PTB 19.0025UIECEx markingEx db eb ib q IIC Gb: . IECEx certificate: IECEx PTB 19.0025U. IECEx marking: Ex db eb ib q IIC Gb. System information: The module may be installed only in the associated backplanes FB9262BP*.2 in Zone 1, Zone 2, or outside the hazardous area. Observe the corresponding EC-type examination certificate.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
