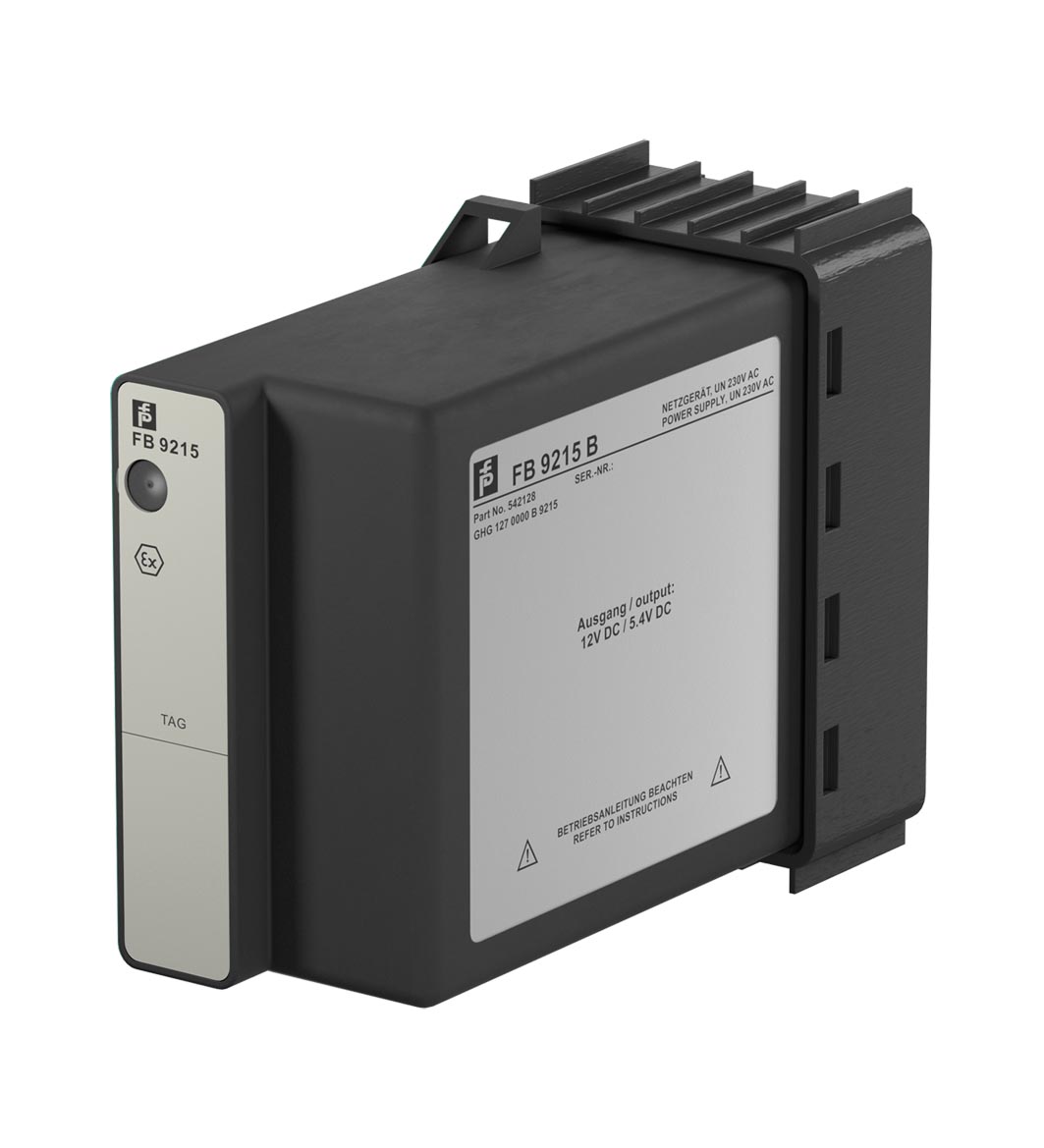

FB9215B2

Power supply. Multi range power supply 90 ... 253 V AC, Suitable for the supply of 24 I/O modules and 1 bus coupler, Use two power supplies for redundancy, Installation in suitable enclosures in Zone...

Power supply. Multi range power supply 90 ... 253 V AC, Suitable for the supply of 24 I/O modules and 1 bus coupler, Use two power supplies for redundancy, Installation in suitable enclosures in Zone 1, Voltage: 5.4 V DC +/- 5% , <BR>12 V DC +/- 3%. Bus coupler: 2. I/O modules: >12, depending on the type. Connection: wired to Ex e terminals via backplane. Maximum safe voltage Um: 253 V AC. Input voltage range: 90 ... 253 V AC. Input frequency: 50 ... 60 Hz. Inrush current (< 2 ms): 30 A max. (115 V AC) 50 A max. (230 V AC). Current consumption: 0.95 A (115 V AC) 0.6 A (230 V AC). Voltage: 5.4 V DC +/- 5% , 12 V DC +/- 3%. Power: P5V ≤ 5.4 W, P12V ≤ 39 W - P5V. Power dissipation: approx. 18 % of power consumption. LED indication: LED green: OFF in case of loss of main power or internal voltages (12 V, 5.4 V). Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Low voltage: . Directive 2014/35/EUEN 61010-1: . Directive 2014/35/EU: EN 61010-1. Electromagnetic compatibility: NE 21:2007. Degree of protection: IEC 60529:2000. Environmental test: EN 60068-2-14:2009. Shock resistance: EN 60068-2-27:2009. Vibration resistance: EN 60068-2-6:2008. Damaging gas: EN 60068-2-42:2003. Relative humidity: EN 60068-2-78:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Mass: approx. 890 g. Dimensions: . Height107 mmWidth57 mmDepth132 mm: . Height: 107 mm. Width: 57 mm. Depth: 132 mm. EU-type examination certificate: PTB 97 ATEX 1074 U. Marking II 2 G Ex d IIC Gb: . Marking: II 2 G Ex d IIC Gb. Galvanic isolation: . Output/power supplyEN 60950-1 (safety requirement < 60 V, external power supply SELV/PELV): . Output/power supply: EN 60950-1 (safety requirement < 60 V, external power supply SELV/PELV). Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014. ATEX approval: PTB 97 ATEX 1074 U. IECEx approval: . IECEx marking: . IECEx marking: . System information: The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
