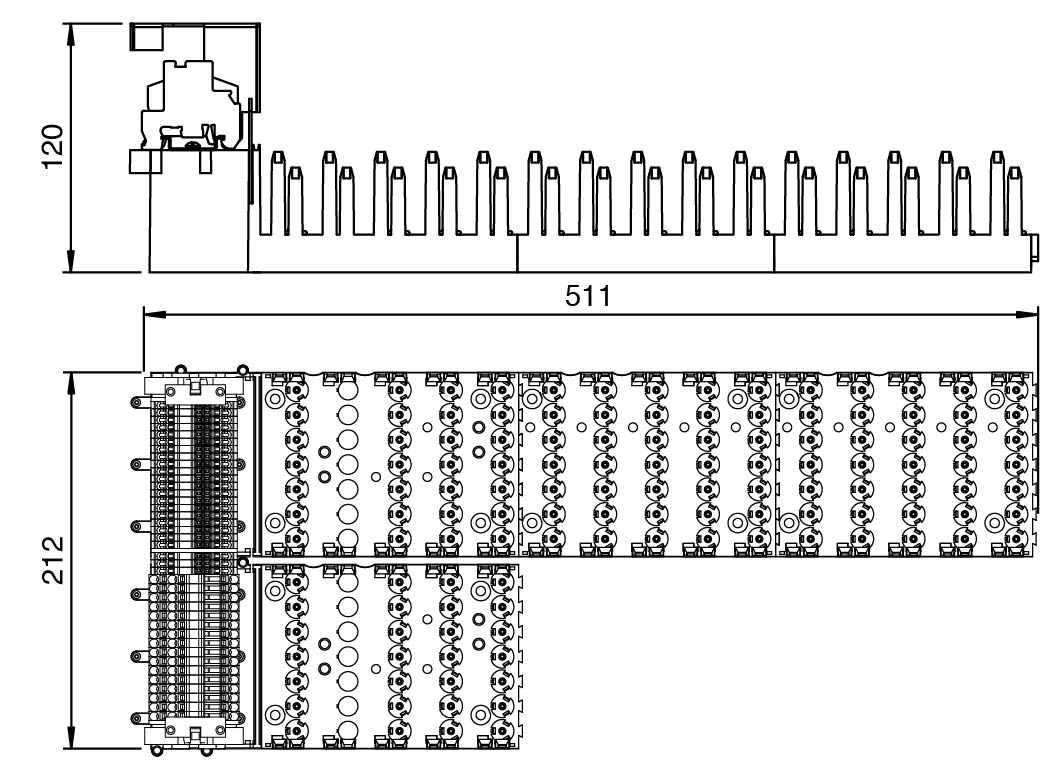

FB9262BP10220.2

Universal Backplane. Universal backplane, Max. 10 slots for I/O modules, Redundancy (field bus and power supply), Installation in Zone 1. Bus coupler: 2. Bus termination: 2. Supply: 2. I/O modules (si...

Universal Backplane. Universal backplane, Max. 10 slots for I/O modules, Redundancy (field bus and power supply), Installation in Zone 1. Bus coupler: 2. Bus termination: 2. Supply: 2. I/O modules (single width): max. 10. I/O modules (dual width): max. 5. Maximum safe voltage Um: 60 V DC (SELV/PELV) / 253 V AC, depending on power supply. Input voltage range: 18 ... 32 V DC (SELV/PELV) / 95 ... 253 V AC; depends on power supply. Redundancy: yes. Fieldbus type: PROFIBUS, PROFINET, MODBUS RTU or MODBUS TCP. Redundancy: yes. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: EN 60529. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Degree of protection: IP30. Mass: approx. 2133 g , without modules. Dimensions: (W x H x D) 511 x 212 x 120 mm , without modules. Height211.8 mmWidth510.7 mmDepth120 mm: . Height: 211.8 mm. Width: 510.7 mm. Depth: 120 mm. EU-type examination certificate: BVS 11 ATEX E 041 X. Marking II 2 G Ex d e m IIC T4: . Marking: II 2 G Ex d e m IIC T4. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 EN 60079-1:2014 EN 60079-7:2015+A1:2018 EN 60079-18:2015+A1:2017. IECEx approval: BVS 11.0019X. Approved forInternational: Ex db eb mb IIC T4 Gb ; Ex db eb IIC T4 Gb: . Approved for: International: Ex db eb mb IIC T4 Gb ; Ex db eb IIC T4 Gb. INMETRO approval: Brazil: TÜV 14.1598X. Marine approval: . Bureau Veritas Marine22449/C0 BV: . Bureau Veritas Marine: 22449/C0 BV. Supplementary information: Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
