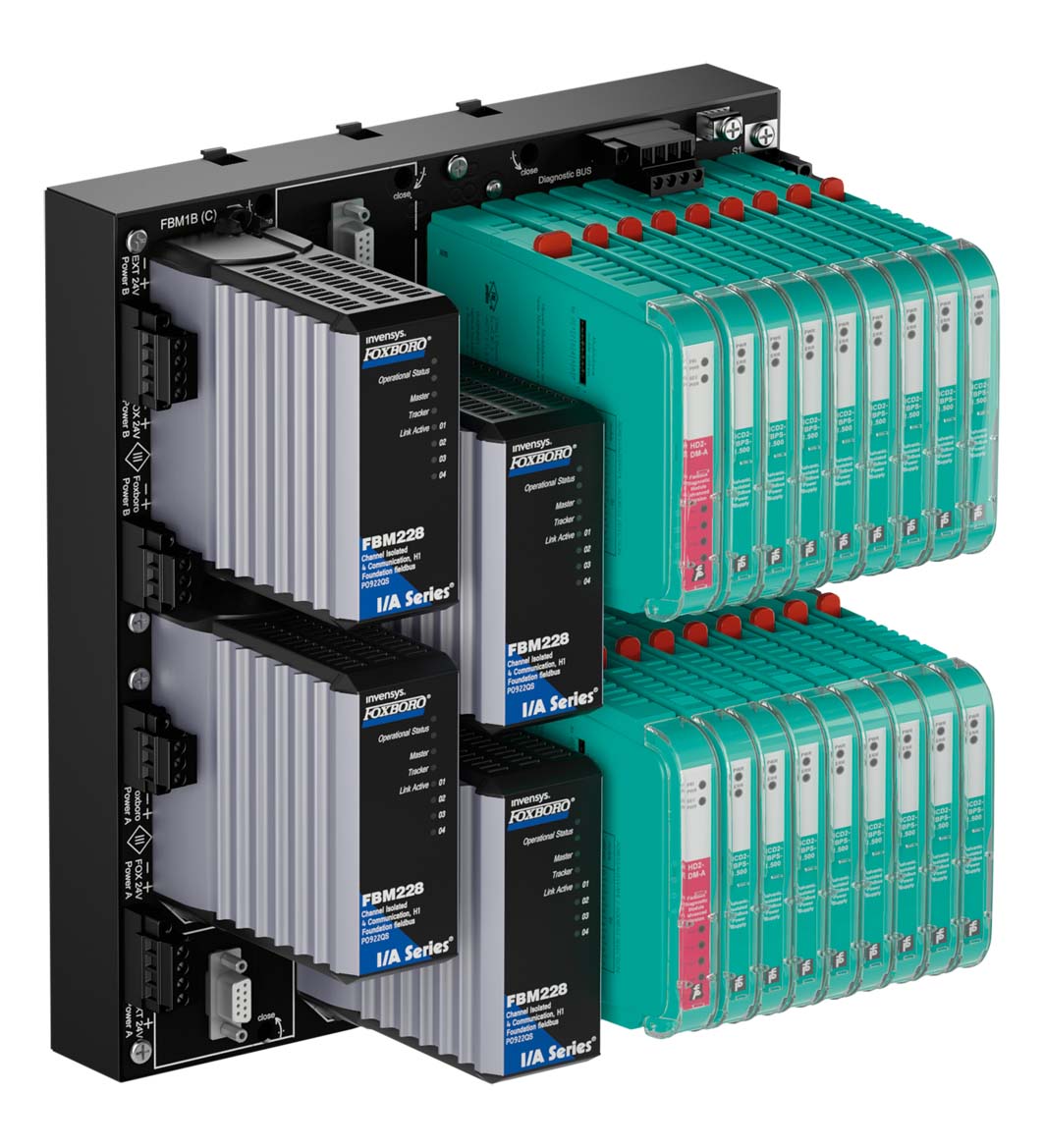

FBTA-228-BPFB-R-8R

Power Hub Motherboard. Power hub motherboard for Invensys FBM 228, 8 segments, redundant, individual modules per segment, Customized for Invensys, FBM228, High-power trunk: Live work on devices in any...

Power Hub Motherboard. Power hub motherboard for Invensys FBM 228, 8 segments, redundant, individual modules per segment, Customized for Invensys, FBM228, High-power trunk: Live work on devices in any hazardous area, Best quality, smallest size and lowest heat dissipation, For FOUNDATION Fieldbus H1, USA, Canada, Device coupler location: non-explosion hazardous area<BR>Zone 2 - high-power trunk<BR>Zone 1 - high-power trunk<BR>Division 2 - high-power trunk<BR>Division 1 - high-power trunk. Design / Mounting: Motherboard based. Connection: redundant. Rated voltage: 21.6 ... 25.2 V Input for Power Hub selectable:Option 1: from regular Foxboro power suppliesOption 2: one or two external bulk power supplies. Rated current: 16 A. Power dissipation: typ. 0.4 W per segment. Number of segments: 8 Redundant Power Supply. Host-side: redundant Invensys FBM 228. Main cable (Trunk): . Rated currentmax. 500 mA per segment: . Rated current: max. 500 mA per segment. Terminating resistor: 100 Ω integrated. Fault signal: VFC alarm output via connectors. Fieldbus segment/Fieldbus segment: functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff. Fieldbus segment/Supply: functional insulation acc. to IEC 62103, rated insulation voltage 250 Veff. Electromagnetic compatibility: . Directive 2004/108/ECEN 61326-1:2006: . Directive 2004/108/EC: EN 61326-1:2006. Electromagnetic compatibility: NE 21:2006. Degree of protection: IEC 60529. Fieldbus standard: IEC 61158-2. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 95 % non-condensing. Shock resistance: 10 g , 11 ms. Vibration resistance: 1 g , 10 ... 150 Hz. Connection type: screw terminal , pluggable. Housing material: Steel, coated. Degree of protection: IP20. Mass: 3200 g. Dimensions: . Height253 mmWidth278 mmDepth69 mm: . Height: 253 mm. Width: 278 mm. Depth: 69 mm. Mounting: DIN rail mounting. FM approval: . FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingAEx/Ex ec IIC T4: . FM certificate: FM 19 US 0015 X and FM 19 CA 0011 X. FM marking: AEx/Ex ec IIC T4. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
