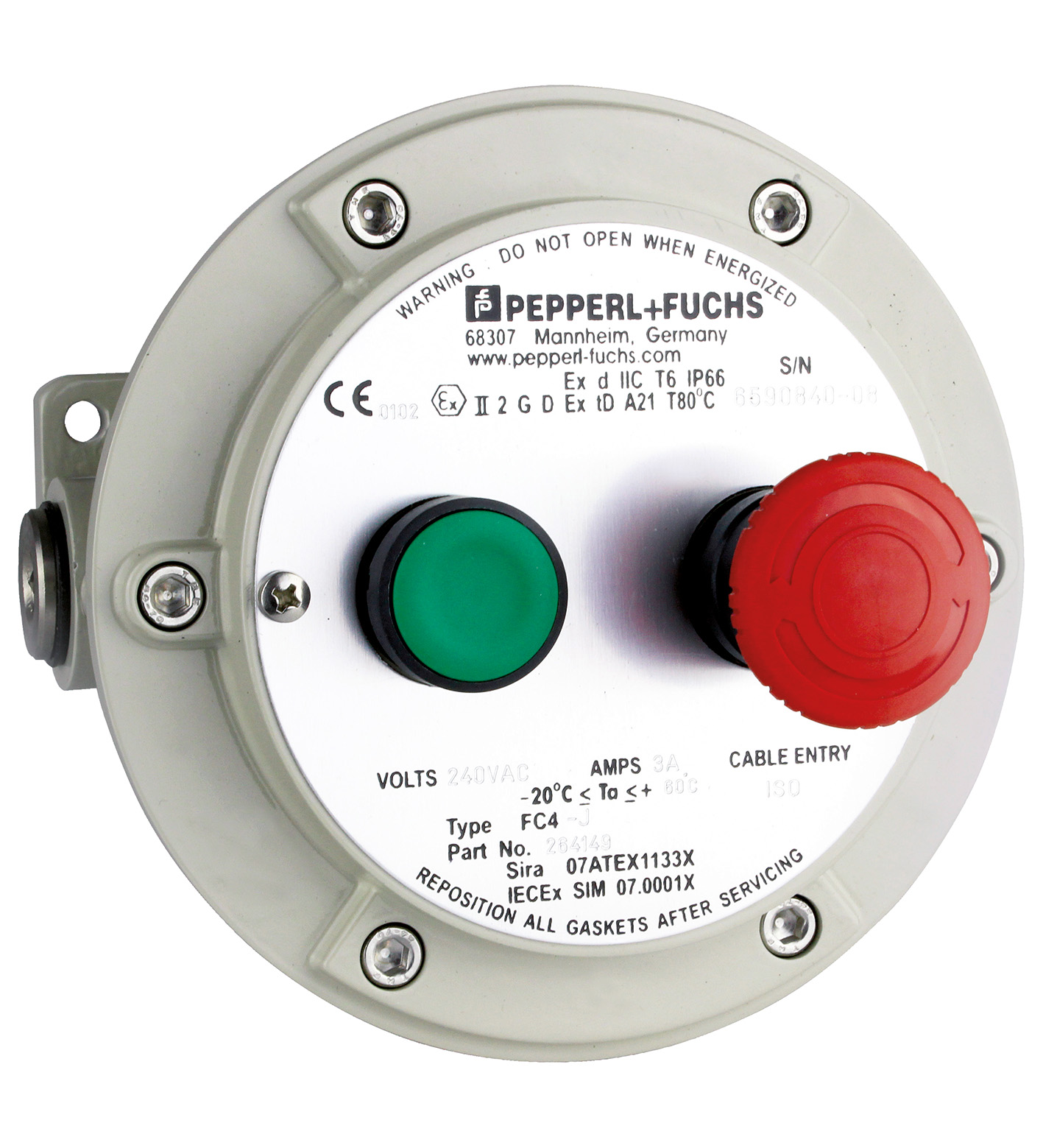

FC* LCU

Control Units Ex d IIC, Aluminum. Ex d and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIC, Aluminum enclosure, Customizable configuration of operators, cable entry...

Control Units Ex d IIC, Aluminum. Ex d and Ex tD certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIC, Aluminum enclosure, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Degree of protection IP66. Operating voltage: see data table. Operating current: see data table. Terminal capacity: see data table. Terminal torque: 0.8 Nm. Function: see data table. Usage category: see data table. Thread type: metric ISO pitch 1.5 mm. Enclosure range: FC4. Enclosure cover: detachable. Cover fixing: stainless steel socket cap head screws. Screws: M6. Number: 6. Tightening torque: 3 Nm. Material of screws: stainless steel. Yield stress: min. 450 N/mm2. Cover seal: chloroprene. Flamepath grease: Fluid film grade AR. Degree of protection: IP66. Cable entry: metric threaded. Cable entry face A: . M20 quantity: 1. Cable entry face B: . M20 quantity: 1. Cable entry face C: . M20 quantity: 1. M20 type: Stopping Plug. Cable entry face D: . M20 quantity: 1. M20 type: Stopping Plug. Material: . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7032. Mass: approx. 1.7 kg. Dimensions: see data table. Mounting: see data table. Grounding: M6 external grounding points. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). EU-type examination certificate: SIRA 07 ATEX 1133X. Marking: II 2 GD Ex d IIC T* Gb Ex tD A21 T6/T80 °C @ Ta +60 °C. IECEx approval: IECEx SIM 07.0001X. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0102. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
