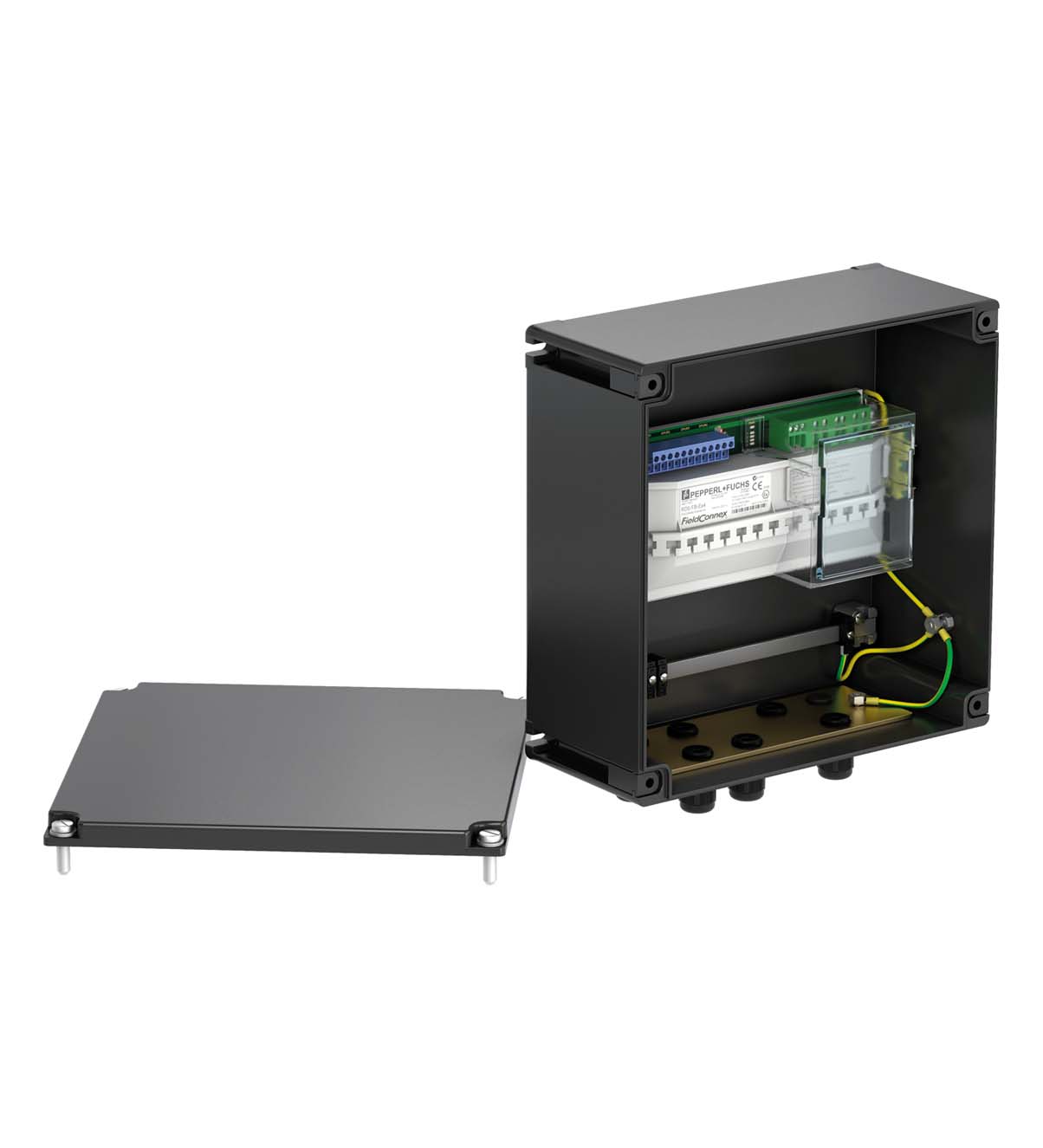

F.FB0.P**.A**.1.0.***.***.****
FieldBarrier Junction Box, Polyester (GRP). 4, 8 or 12 outputs Ex ia, Impact resistance enclosure, IP66, Configurable cable entries for trunk and spurs, Packaged certified solution, For FOUNDATION Fie...
FieldBarrier Junction Box, Polyester (GRP). 4, 8 or 12 outputs Ex ia, Impact resistance enclosure, IP66, Configurable cable entries for trunk and spurs, Packaged certified solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, Device coupler location: Zone 2 - high-power trunk<BR>Zone 1 - high-power trunk, Device coupler location [2]: Zone 1 - high-power trunk, Instrument location / spur protection: Zone 0 ... 1 - intrinsic safety, Function: Device coupler, Design / Mounting: Outside installation. Design / Mounting: Outside installation. Installed components: FieldBarrier RD0-FB-Ex4.COM For technical data on installed electronic component see datasheet.. Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Impact resistance: 7J. Enclosure cover: detachable cover with retaining screws. Degree of protection: IP66. Cable entry: cable gland and stopping plug options see separate table. Material: . Housingpolyester , impact resistant, glass fiber reinforcedSurfaceblack molded finish (RAL 9005)Surface resistance< 109 ΩWater absorption< 6 %Sealsilicone , one-pieceGrounding platebrassMaterial thicknessgrounding plate: 3 mm: . Housing: polyester , impact resistant, glass fiber reinforced. Surface: black molded finish (RAL 9005). Surface resistance: < 109 Ω. Water absorption: < 6 %. Seal: silicone , one-piece. Grounding plate: brass. Material thickness: grounding plate: 3 mm. Dimensions: (W x H x D) 271 x 271 x 136 mm (1 x RD0-FB-Ex4.COM)544 x 271 x 136 mm (2 x RD0-FB-Ex4.COM)544 x 544 x 136 mm (3 x RD0-FB-Ex4.COM). Mounting: thru-holes Ø6.5 mm. Grounding: grounding bolt M6 , Stainless steel. EU-type examination certificate: PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly.: . Marking: II 2(1)G Ex db eb mb [ia] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly.. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-1:2014 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-18:2009 , EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-1:2014 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-18:2009 , EN 60079-31:2014. IECEx approval: IECEx PTB 07.0036 X , suitable Junction Box on request. INMETRO approval: TÜV 13.1143. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
