F.FB1.T14.***.1.*.***.***.****

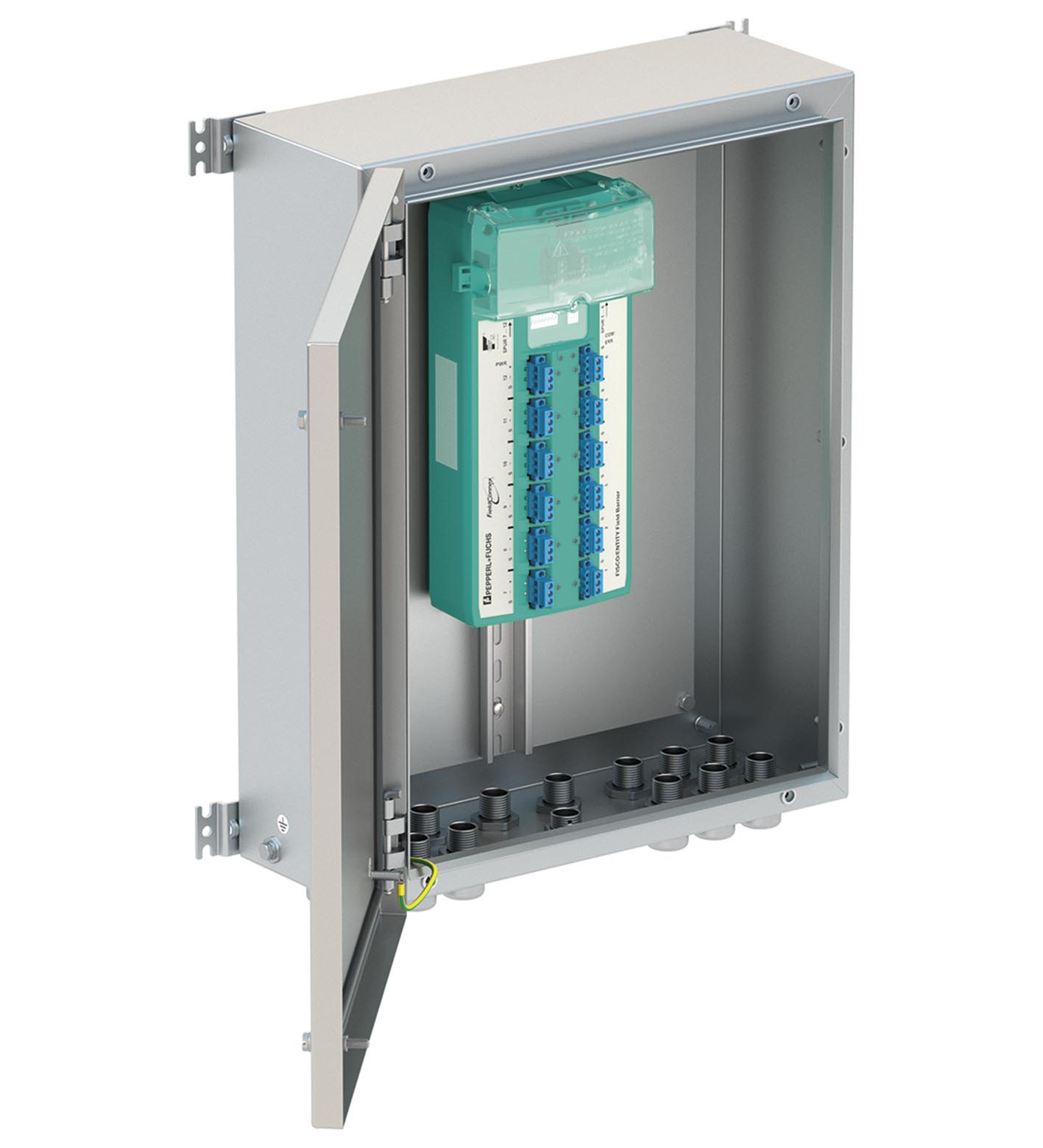

FieldBarrier Junction Box. FieldBarrier Junction Box, Brushed Stainless Steel, 8, 10, 12 outputs Ex ia, Brushed enclosure, IP66, Configurable cable entries for trunk and spurs, Packaged certified solu...
FieldBarrier Junction Box. FieldBarrier Junction Box, Brushed Stainless Steel, 8, 10, 12 outputs Ex ia, Brushed enclosure, IP66, Configurable cable entries for trunk and spurs, Packaged certified solution, For FOUNDATION Fieldbus H1 and PROFIBUS PA, Device coupler location: Zone 2 - high-power trunk<BR>Zone 1 - high-power trunk, Device coupler location [2]: Zone 1 - high-power trunk, Instrument location / spur protection: Zone 0 ... 1 - intrinsic safety, Function: Device coupler, Design / Mounting: Outside installation. Design / Mounting: Outside installation. Installed components: FieldBarrier R4D0-FB-IA* For technical data on installed electronic component see data sheet.. Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Impact resistance: 7J. Enclosure cover: Hinged door with captive retaining screws. Degree of protection: IP66. Cable entry: cable gland and stopping plug options see separate table. Material: . HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm: . Housing: Stainless steel 1.4404 / AISI 316L. Surface: brushed. Seal: Silicone, fire-resistant, one piece, foamed. Material thickness: enclosure body, enclosure cover, mounting plate: 1.5 mm. Dimensions: (W x H x D) 380 x 480 x 160 mm. Mounting: thru-holes Ø 7 mm. Grounding: grounding bolt M6 , brass, nickel-plated. EU-type examination certificate: PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 2(1)G Ex db eb ib mb [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly.: . Marking: II 2(1)G Ex db eb ib mb [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db Note: The marking is based on the maximum value and can be reduced depending on the selected options accordingly.. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014. IECEx approval: IECEx PTB 07.0036 X , suitable Junction Box on request. INMETRO approval: TÜV 13.1143. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
