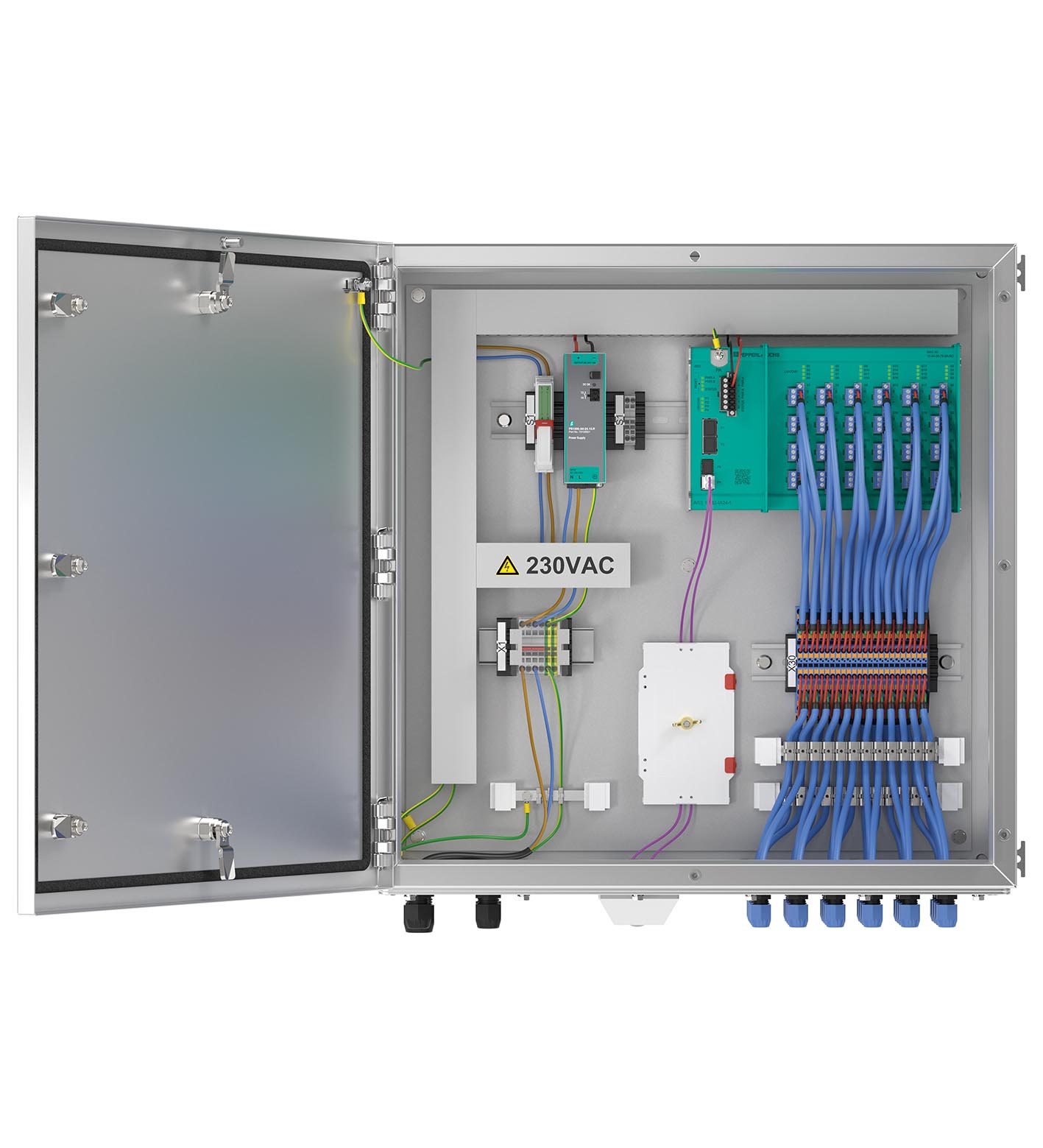

F.FS*.T50.B24.E.*.***.***.****
Ethernet-APL Rail Field Switch. Ethernet-APL field junction box enclosure solution, brushed stainless steel with intrinsically safe spur ports, Stainless steel enclosure with Ethernet-APL rail field s...
Ethernet-APL Rail Field Switch. Ethernet-APL field junction box enclosure solution, brushed stainless steel with intrinsically safe spur ports, Stainless steel enclosure with Ethernet-APL rail field switch, Spur outputs intrinsically safe for Zone 0, 1, or 2, Number of spur outputs selectable, Packaged certified solution, Installation in Zone 2 and Zone 22, Device coupler location: non-explosion hazardous area<BR>Zone 2, Device coupler location [2]: Zone 2. Design / Mounting: Outside installation. Installed components: Ethernet-APL rail field switch ARS1*-B2-I**-** , For technical data on installed electronic component see datasheets.. Fieldbus support: PROFIBUS PA (optional). Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -40 ... 50 °C (-40 ... 122 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Impact resistance: 7J. Enclosure cover: Hinged door with captive retaining screws. Degree of protection: IP66. Cable entry: cable gland and stopping plug options see separate table. Material: . HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm: . Housing: Stainless steel 1.4404 / AISI 316L. Surface: brushed. Seal: Silicone, fire-resistant, one piece, foamed. Material thickness: enclosure body, enclosure cover, mounting plate: 1.5 mm. Dimensions: (W x H x D) 600 x 600 x 260 mm. Mounting: thru-holes Ø 7 mm. Grounding: grounding bolt M6 , brass, nickel-plated. Certificate: PTB 17 ATEX 1011 X. Marking II 3(1) G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc: . Marking: II 3(1) G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014. IECEx approval: IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
