FI-PFH-NS0137-R

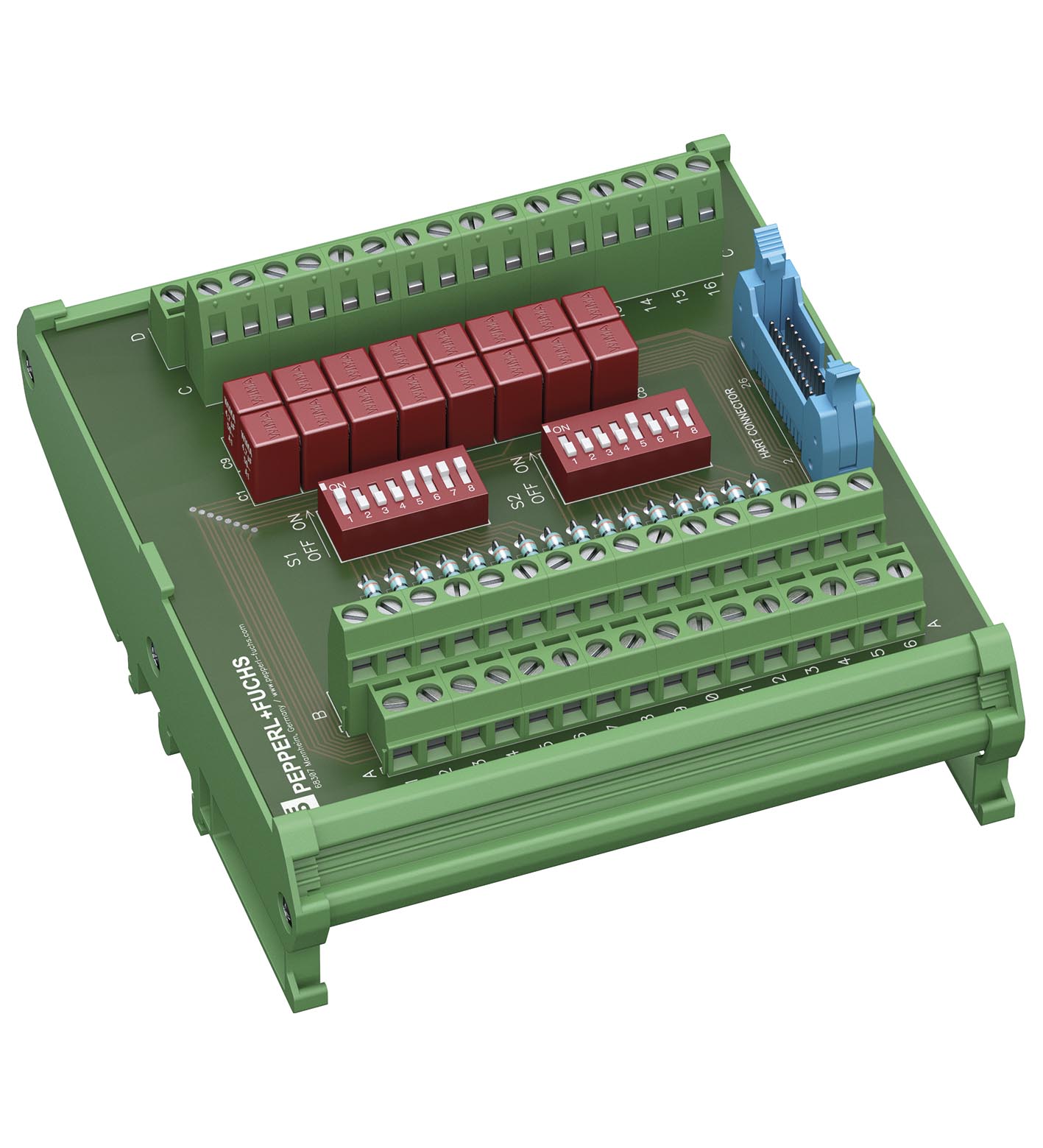

HART Termination Board. Connection board for K-System HART Multiplexer, 16-channel, Interface for series connection or parallel connection, Integrated, switchable 220 Ω resistor, Connection via screw...

HART Termination Board. Connection board for K-System HART Multiplexer, 16-channel, Interface for series connection or parallel connection, Integrated, switchable 220 Ω resistor, Connection via screw terminals. Load resistor: 220 Ω , switchable on. Type: multiplexer connection : IDC plug, 26-pin. Rated current: max. 30 mA per channel. Control elements: DIP switch. DIP switch: selection of operating mode:- ON: without load resistor- OFF: with load resistor. Factory setting: DIP switches S1 and S2: ON. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017For further information see system description.. Degree of protection: IEC 60529:2001. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: 0 ... 50 °C (32 ... 122 °F). Storage temperature: -15 ... 50 °C (5 ... 122 °F). Relative humidity: ≤ 93 % non-condensing. Shock resistance: 15 g , 11 ms. Vibration resistance: 1 g , 10 ... 150 Hz. Degree of protection: IP20. Connection: . Field sidescrew terminals , greenControl sidescrew terminals , green HART : 1 x IDC plug, 26-pin: . Field side: screw terminals , green. Control side: screw terminals , green HART : 1 x IDC plug, 26-pin. Core cross section: 0.25 ... 1.5 mm2 (24 ... 16 AWG). Material: . HousingPVC: . Housing: PVC. Mass: approx. 210 g. Dimensions: 110 x 125 x 61 mm (4.3 x 4.9 x 2.4 inch) (W x H x D). Height125 mmWidth110 mmDepth61 mm: . Height: 125 mm. Width: 110 mm. Depth: 61 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Certificate: PF 11 CERT 1930 X. Marking II 3G Ex nA IIC T4 Gc: . Marking: II 3G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-15:2010. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
