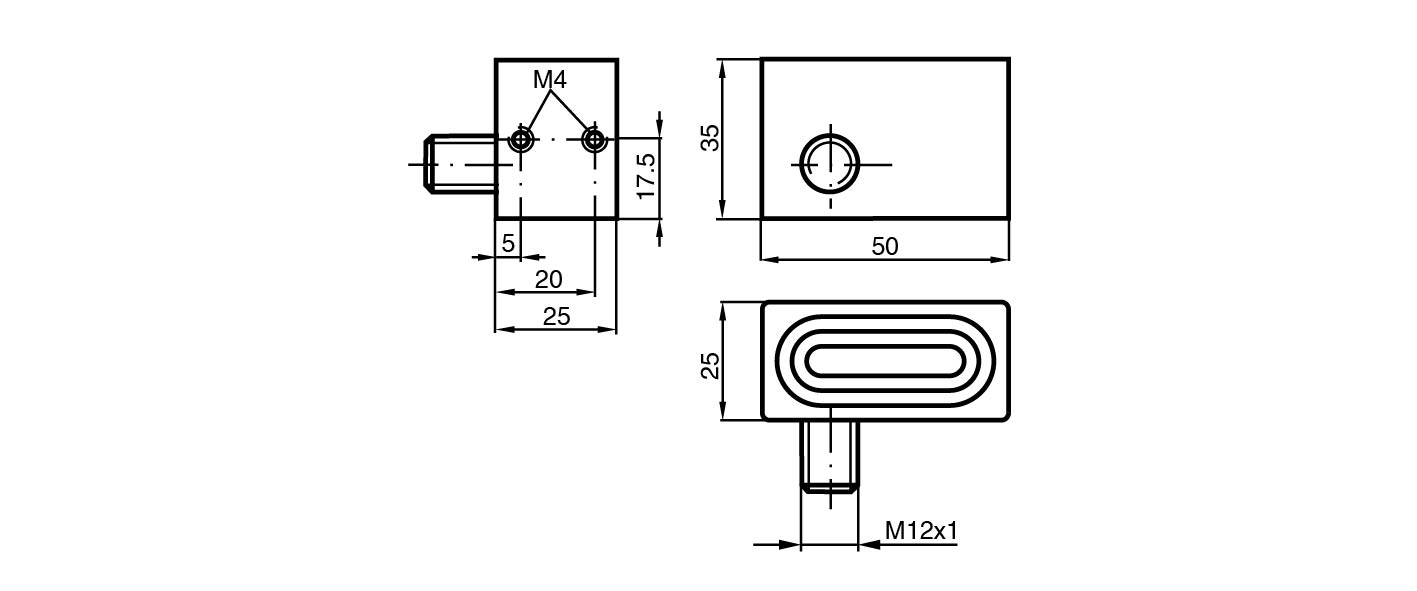

FJ7-A2-V1-Y33912

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Type of...

Inductive sensor. Switching function: complementary, Output type: PNP, Installation: flush, Output polarity: DC, Output type: 4-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Connection type: Connector plug, Housing material: brass, zinc plated, Degree of protection: IP67, Threading: M12 x 1. Switching function: complementary. Output type: PNP. Rated operating distance: 7 mm. Installation: flush. Output polarity: DC. Assured operating distance: 0 ... 5.67 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 4-wire. Operating voltage: 10 ... 30 V. Switching frequency: 0 ... 200 Hz. Hysteresis: typ. 3 %. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 200 mA. No-load supply current: ≤ 20 mA. Time delay before availability: ≤ 20 ms. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: Connector plug. Housing material: brass, zinc plated. Sensing face: POM. Degree of protection: IP67. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Height25 mmWidth50 mmLength35 mm: . Height: 25 mm. Width: 50 mm. Length: 35 mm

Brand	Pepperl Fuchs
Lifecycle status	active
