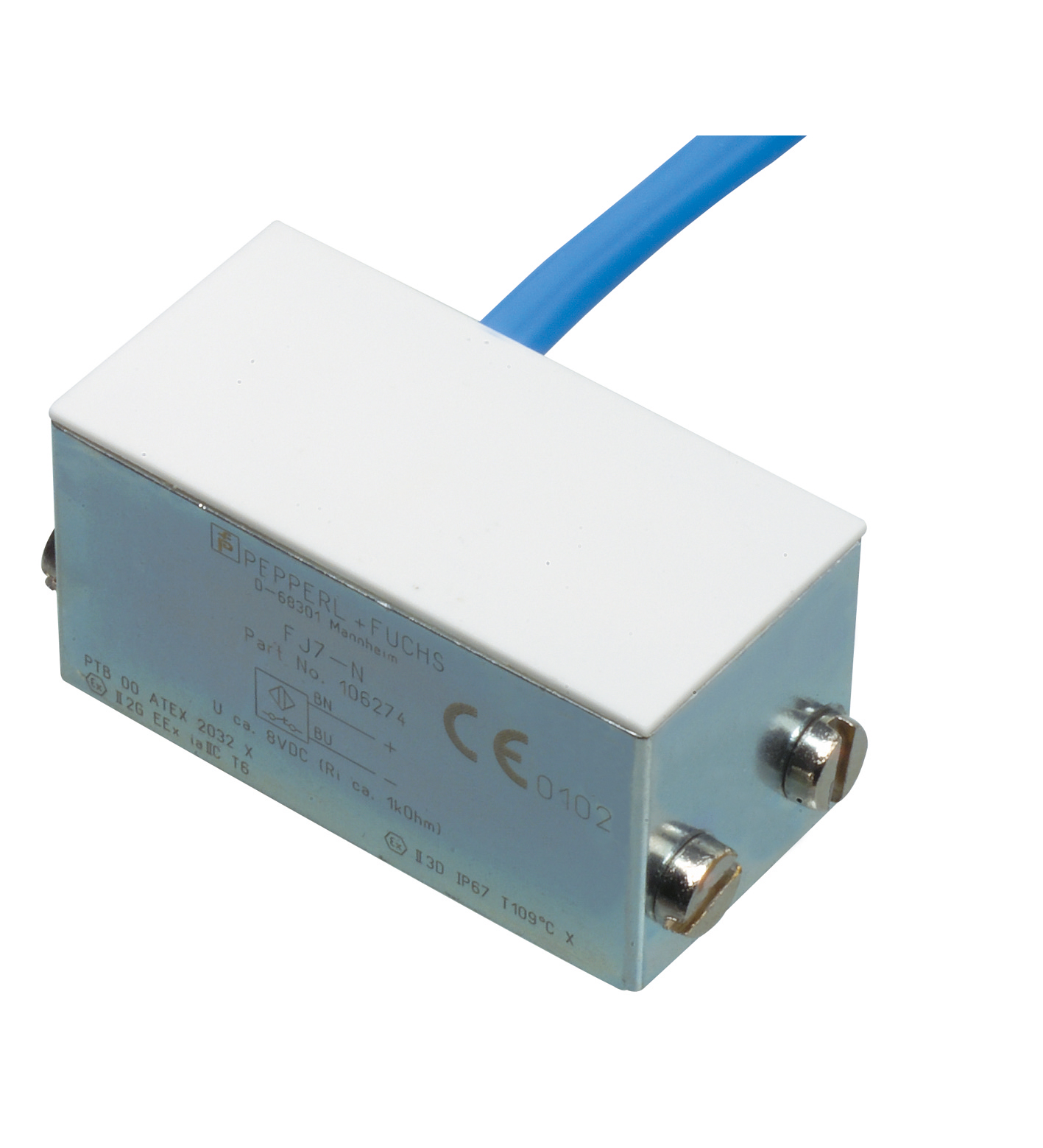

FJ7-N

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Rectangular, Series: Rectangula...

Inductive sensor. Extended temperature range, Switching function: Normally closed (NC), Output type: NAMUR, Installation: flush, Output type: 2-wire, Construction type: Rectangular, Series: Rectangular type, Type of voltage: DC, Equipment protection level Gb: IECEx PTB 11.0021X, Equipment protection level Mb: IECEx PTB 11.0021X, Equipment protection level Gb: PTB 00 ATEX 2032 X, Equipment protection level Gc (ic): PF13CERT2895 X, Connection type: cable, Housing material: brass, zinc plated, Degree of protection: IP67. Switching function: Normally closed (NC). Output type: NAMUR. Rated operating distance: 7 mm. Installation: flush. Assured operating distance: 0 ... 5.67 mm. Reduction factor rAl: 0.4. Reduction factor rCu: 0.3. Reduction factor r304: 0.85. Output type: 2-wire. Nominal voltage: 8.2 V (Ri approx. 1 kΩ). Operating voltage: 5 ... 25 V. Switching frequency: 0 ... 200 Hz. Hysteresis: typ. %. Current consumption: . Measuring plate not detected≥ 3 mA at nominal voltageMeasuring plate detected≤ 1 mA at nominal voltage: . Measuring plate not detected: ≥ 3 mA at nominal voltage. Measuring plate detected: ≤ 1 mA at nominal voltage. Switching state indicator: LED, yellow. MTTFd: 4080 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . NAMUREN 60947-5-6:2000StandardsEN IEC 60947-5-2: . NAMUR: EN 60947-5-6:2000. Standards: EN IEC 60947-5-2. IECEx approval: . Equipment protection level GbIECEx PTB 11.0021XEquipment protection level MbIECEx PTB 11.0021X: . Equipment protection level Gb: IECEx PTB 11.0021X. Equipment protection level Mb: IECEx PTB 11.0021X. ATEX approval: . Equipment protection level GbPTB 00 ATEX 2032 XEquipment protection level Gc (ic)PF13CERT2895 X: . Equipment protection level Gb: PTB 00 ATEX 2032 X. Equipment protection level Gc (ic): PF13CERT2895 X. CCC approval: . Hazardous Location2020322315002304: . Hazardous Location: 2020322315002304. NEPSI approval: . NEPSI certificateGYJ16.1394X: . NEPSI certificate: GYJ16.1394X. CML approval: on request. ANZEx: 19.3001X. Ambient temperature: -25 ... 100 °C (-13 ... 212 °F). Cable, fixed installation-25 ... 80 °C (-13 ... 176 °F): . Cable, fixed installation: -25 ... 80 °C (-13 ... 176 °F). Connection type: cable. Housing material: brass, zinc plated. Sensing face: POM. Degree of protection: IP67. Cable: . Wire end ferrulesyesCable diameter4.8 mm ± 0.2 mmBending radius> 10 x cable diameterMaterialPURColorblueNumber of cores2Core cross section0.34 mm2LengthL2 m: . Wire end ferrules: yes. Cable diameter: 4.8 mm ± 0.2 mm. Bending radius: > 10 x cable diameter. Material: PUR. Color: blue. Number of cores: 2. Core cross section: 0.34 mm2. Length: 2 m. Dimensions: . Height24 mmWidth50 mmLength25 mm: . Height: 24 mm. Width: 50 mm. Length: 25 mm. Use in the hazardous area: see instruction manuals

Brand	Pepperl Fuchs
Lifecycle status	active
