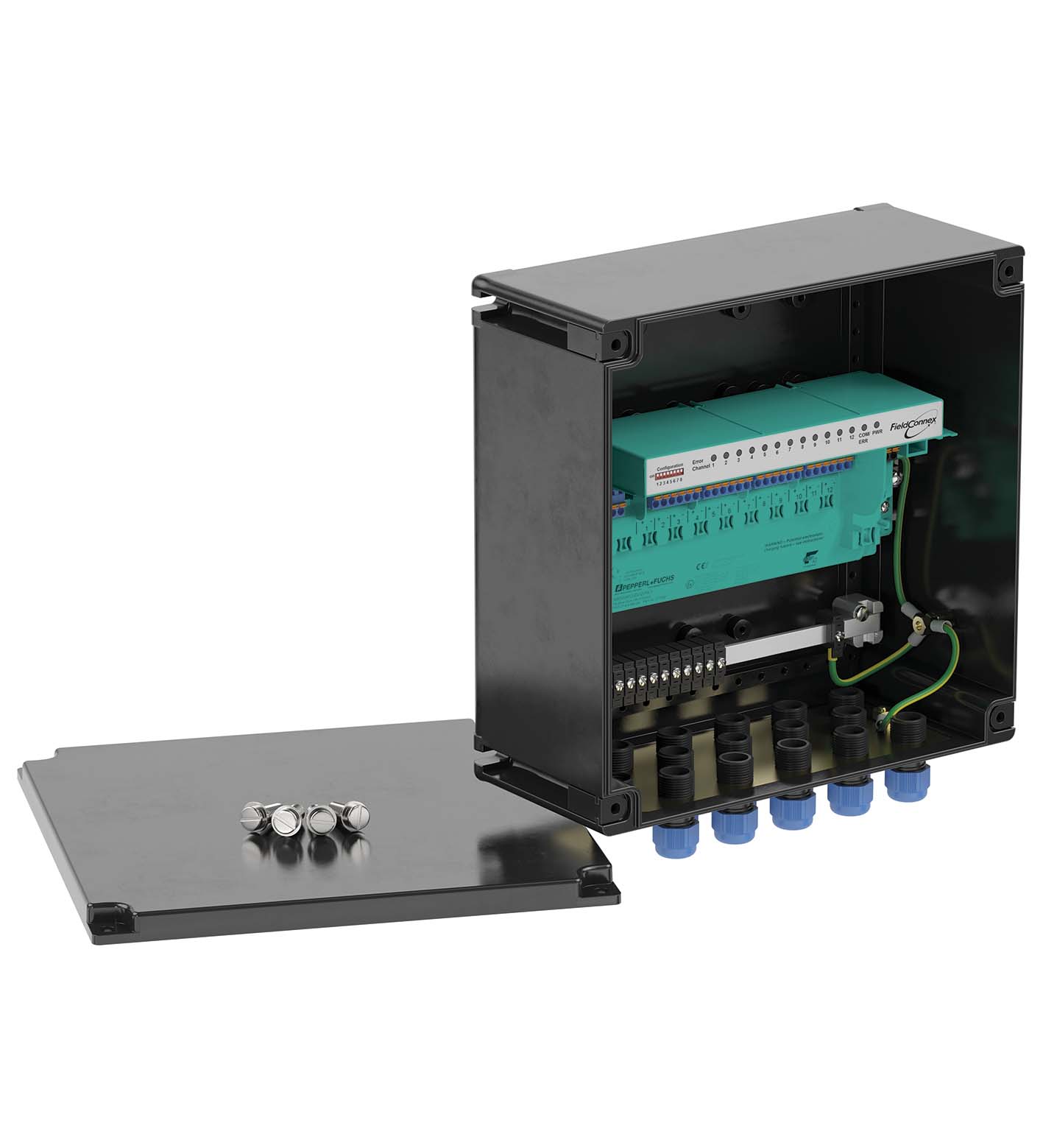

F.MIO.P12.*12.P.*.***.***.**00

Multi-Input/Output Junction Box, Polyester (GRP). For discrete inputs and outputs, Glass fiber reinforced polyester, impact resistant, IP66, Configurable cable entries for bus lines and field signal l...

Multi-Input/Output Junction Box, Polyester (GRP). For discrete inputs and outputs, Glass fiber reinforced polyester, impact resistant, IP66, Configurable cable entries for bus lines and field signal lines, International approvals, For PROFIBUS PA, Device coupler location: non-explosion hazardous area<BR>Zone 2 - high-power trunk<BR>Zone 1 - high-power trunk<BR>Zone 1/2 - intrinsically safe high-power trunk<BR>Zone 1 - intrinsically safe trunk, Device coupler location [2]: Zone 2 - high-power trunk, Device coupler location [3]: Zone 1 - high-power trunk. Design / Mounting: Outside installation. Installed components: Binary multi-input/output R8D0-MIO-Ex12.PA* , For technical data on installed electronic component see data sheet.. Fieldbus type: PROFIBUS PA. Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Impact resistance: 7J. Enclosure cover: detachable cover with retaining screws. Degree of protection: IP66. Cable entry: cable gland and stopping plug options see separate table. Material: . Housingpolyester , impact resistant, glass fiber reinforcedSurfaceblack molded finish (RAL 9005)Surface resistance< 109 ΩWater absorption< 6 %Sealsilicone , one-pieceGrounding platebrassMaterial thicknessgrounding plate: 3 mm: . Housing: polyester , impact resistant, glass fiber reinforced. Surface: black molded finish (RAL 9005). Surface resistance: < 109 Ω. Water absorption: < 6 %. Seal: silicone , one-piece. Grounding plate: brass. Material thickness: grounding plate: 3 mm. Dimensions: (W x H x D) 271 x 271 x 136 mm. Mounting: thru-holes Ø6.5 mm. Grounding: grounding bolt M6 , Stainless steel. EU-type examination certificate: PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 2(1)G Ex ib [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db: . Marking: II 2(1)G Ex ib [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db. Certificate: PTB 17 ATEX 1011 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 3(1)G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc: . Marking: II 3(1)G Ex ic [ia Ga] IIC T4 Gc [exsign] II 3(1)G Ex ec [ia Ga] IIC T4 Gc [exsign] II 3(1)D Ex tc [ia Da] IIIC T135°C Dc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-7:2015 , EN 60079-11:2012 , EN 60079-31:2014. IECEx approval: IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request. INMETRO approval: TÜV 13.1143. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
