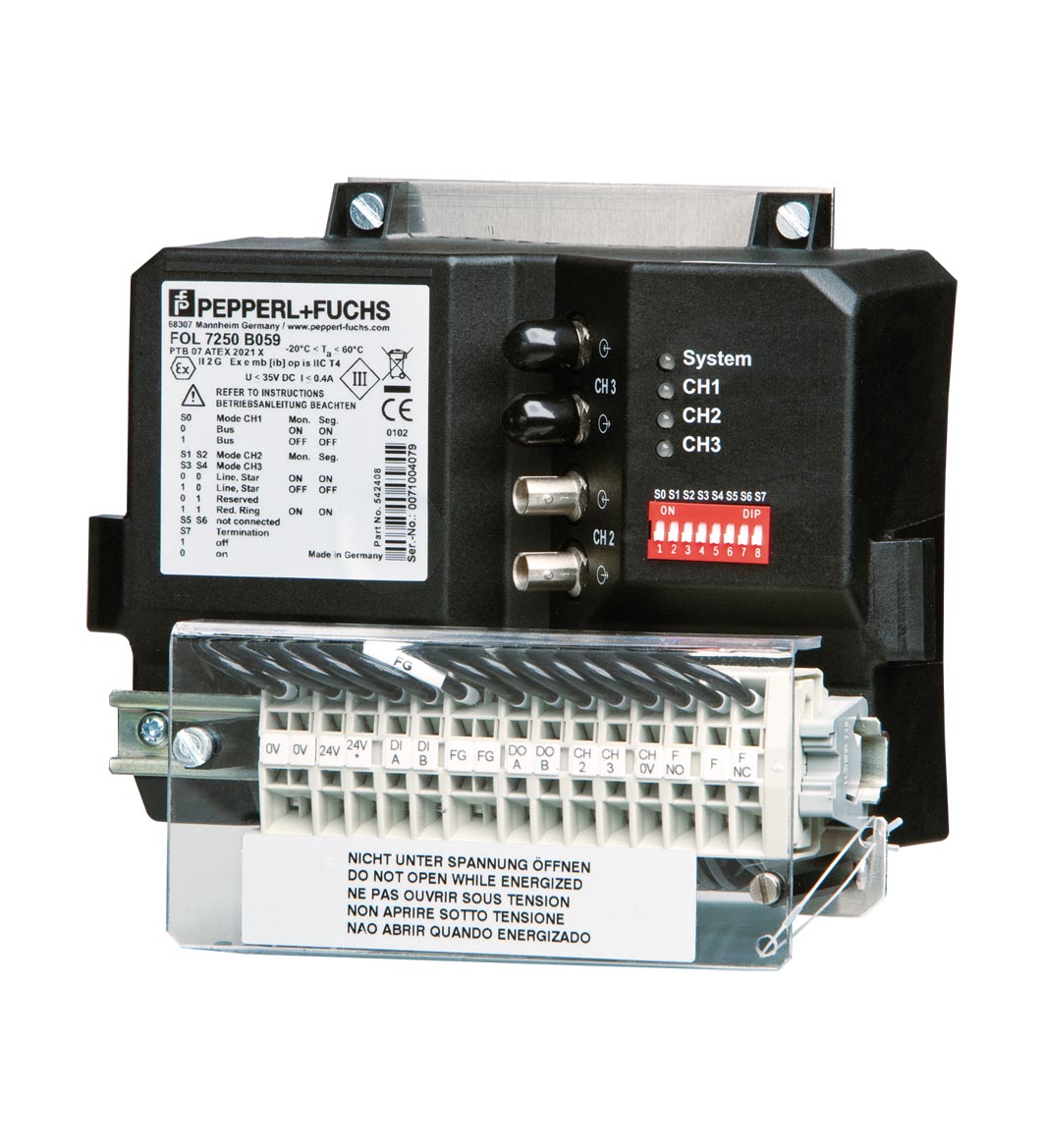

FOL7250B059
PROFIBUS Fiber Optic Link Coupler and Repeater. For any PROFIBUS interface, e.g. Remote I/O, valves, drives, inverters, motors, controllers etc., Full galvanic isolation between field and control room...
PROFIBUS Fiber Optic Link Coupler and Repeater. For any PROFIBUS interface, e.g. Remote I/O, valves, drives, inverters, motors, controllers etc., Full galvanic isolation between field and control room , No sparks capable of ignition or hot surfaces due to low light energies, Automatic baud rate detection, Star, ring, or line topology selectable, Bridging of great distances while maintaining high transmission rates. Connection: redundant. Rated voltage: 18 ... 32 V , typical: 24 V. Rated current: approx. 200 mA. Power consumption: 4.8 W. Fieldbus type: PROFIBUS DP, DP V1, DP V2, FMS. Terminating resistor: integrated, switchable on. Signal delay: < 6.5 bit times. Interface type: RS-485. Transfer rate: 9.6; 19.2; 93.75; 187.5; 500; 1500 kBit/s 3; 6; 12 Mbit/s self-synchronizing. Connection: spring terminals, max. 1.5 mm2. Redundancy: HIPER ring. Wave length: 860 nm. Optical input power: min. -28 dBm, max. -3 dBm. Launchable optical power: in multi-mode fiber (50/125): (50/125): -15 dBm (62,5/125): - 13 dBm. Cable length: Multi-mode fiber (MM) 50/125: 3 km with A = 3 dB/km; 3 dB buffer Multi-mode fiber (MM) 62,5/125: with A = 3.5 dB/km; 3 dB buffer. Connector type: BFOC/2.5. Link budget: Multi-mode fiber (MM) 50/125: 13 dB at 860 nmMulti-mode fiber (MM) 62,5/125: 15 dB at 860 nm. Output type: volt-free contact. Switching current: max. 1 A. Switching voltage: max. 32 V. Switch power: max. 30 W. Contact loading: max. 32 V DC, 24 V AC, 1 A (Ex e). PROFIBUS DP/Supply: functional insulation acc. to DIN EN 50178. LED indication: LED System (red/green): Operating voltage and bitrate, LED CH1 (red/yellow): electric channel, LED CH2, CH3 (red/yellow): optic channel. Electromagnetic compatibility: EN 61000-4-2/3/4/5/6, EN 55022, NE 21. Degree of protection: IEC 60529. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: max. 100 % , moisture condensation allowable. Vibration resistance: 1 g , 58 ... 150 Hz according to IEC 60068-2-6. Degree of protection: IP20. Cable: . LengthL200 m ... 1000 m, depending on baud rate: L. Length: 200 m ... 1000 m, depending on baud rate. Mass: 1500 g. Dimensions: 156 x 125 x 75 mm. Mounting: DIN rail mounting. EU-type examination certificate: PTB 07 ATEX 2021 X. Marking II 2 G Ex e mb [ib] op is IIC T4: . Marking: II 2 G Ex e mb [ib] op is IIC T4. Fault indication output: . Maximum safe voltageUm60 V: Um. Maximum safe voltage: 60 V. Directive conformity: . Directive 94/9/ECEN 60079-0:2006 EN 60079-7:2007 EN 60079-11:2007 EN 60079-18:2004 EN 60079-28:2007: . Directive 94/9/EC: EN 60079-0:2006 EN 60079-7:2007 EN 60079-11:2007 EN 60079-18:2004 EN 60079-28:2007. ATEX approval: PTB 07 ATEX 2021X. GOST-R approval: RU C-IT.MIII06.B.00129. INMETRO approval: Brazil: TÜV 14.1594X. Marine approval: . Lloyd Registerc15-20021: . Lloyd Register: c15-20021. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
