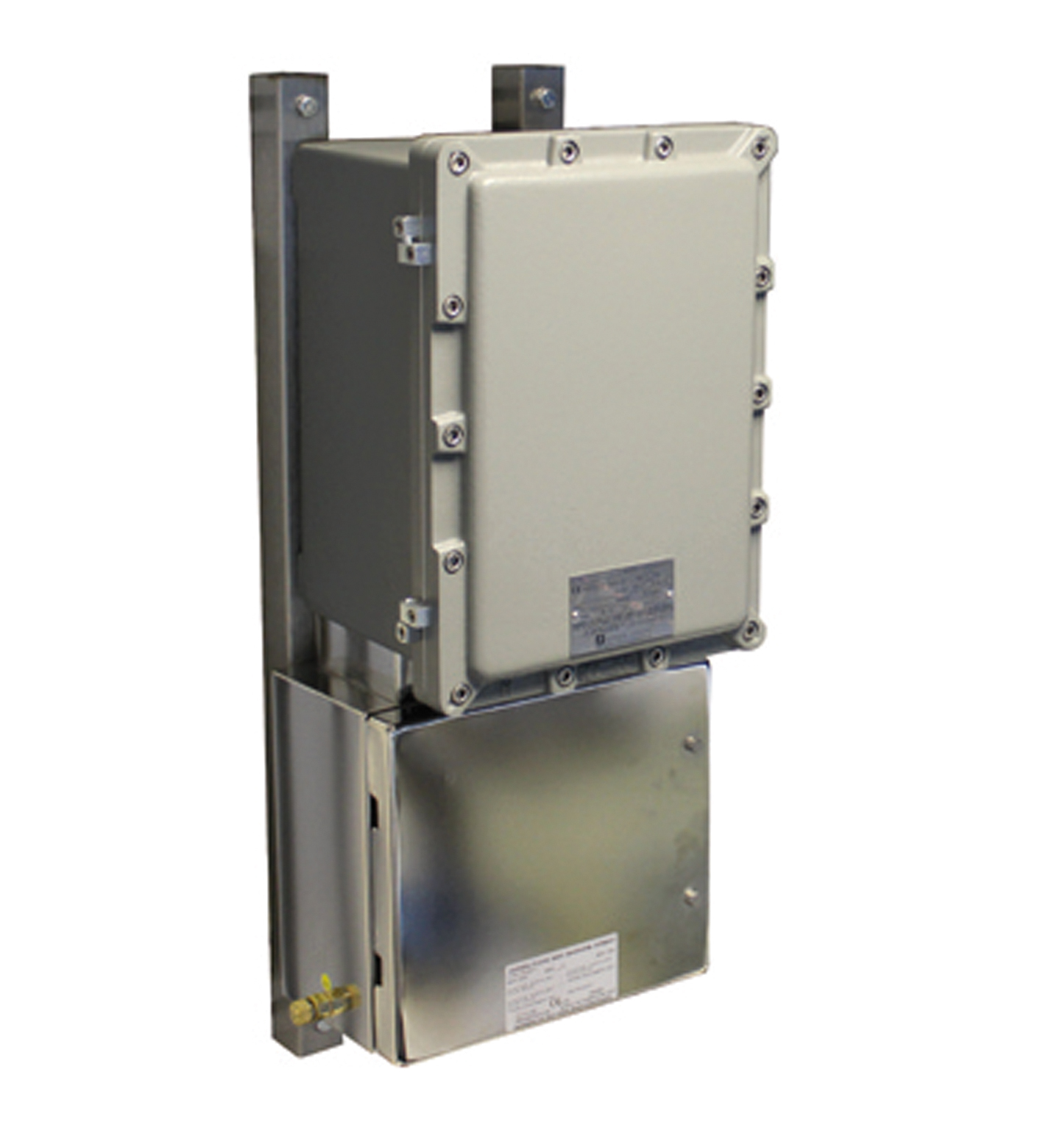

FP.*.FS*

Control and Distribution Panels Ex de in Aluminum/Stainless Steel. Aluminum and stainless steel enclosures, Ex de and Ex tb certified, Integration of electrical components and operating elements as pe...

Control and Distribution Panels Ex de in Aluminum/Stainless Steel. Aluminum and stainless steel enclosures, Ex de and Ex tb certified, Integration of electrical components and operating elements as per customer specification, Customizable configuration of operators, terminals and cable entries as per specification, Various enclosure size and design variants, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Choice of viewing windows for monitoring instruments. Operating voltage: 1500 V DC / 1000 V AC max.. Operating current: 1600 A max.. Enclosure range: details of Ex e enclosure see datasheet Control Stations FXLS*. Enclosure cover: see data table. Cover fixing: . Screwssee data table: . Screws: see data table. Cover seal: none, O-ring for IP66/67. Flamepath grease: Greasil MS4 or NEVER SEEZ Marine Grade , GUB petroleum jelly. Degree of protection: IP66 (IP66/IP67 with O-ring). Material: . Enclosurealuminum alloy AISI 316L, (1.4404) stainless steelGlassthermo-resistant tempered glassFinishepoxy coated RAL 7005 (grey) or shot peenedO-Ringsilicone: . Enclosure: aluminum alloy AISI 316L, (1.4404) stainless steel. Glass: thermo-resistant tempered glass. Finish: epoxy coated RAL 7005 (grey) or shot peened. O-Ring: silicone. Mass: see data table valid for empty enclosure, will increase according to integrated components. Dimensions: see data table values might differ slightly due to casting and manufacturing tolerances. Mounting: see data table. Grounding: M10 internal/external brass grounding bolt through enclosure body. Ambient temperature: -50 ... 60 °C (-58 ... 140 °F) depending on integrated components. EU-type examination certificate: see data table. Marking II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbFS* Termination and Control Stations:Ex de IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx de ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C Db Maximum power dissipationsee data table maximum power dissipation at T4/+40 °C enclosure without window: . Marking: II 2 GDEJB enclosures: Ex db IIB+H2 Gb, Ex tb IIIC DbGUB enclosures: Ex db IIC Gb, Ex tb IIIC DbFS* Termination and Control Stations:Ex de IIC T6, T5, T4 GbEx ib IIC T6, T5, T4 GbEx de ib IIC T6, T5, T4 GbEx tb IIIC T80 °C, T95 °C, T130 °C Db. Maximum power dissipation: see data table maximum power dissipation at T4/+40 °C enclosure without window. IECEx approval: see data table. EAC approval: TC RU C-IT.AA87.B.00156. Further approvals: available on request. Degree of protection: EN60529. CE marking: 0080 or 0102, see type label. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
