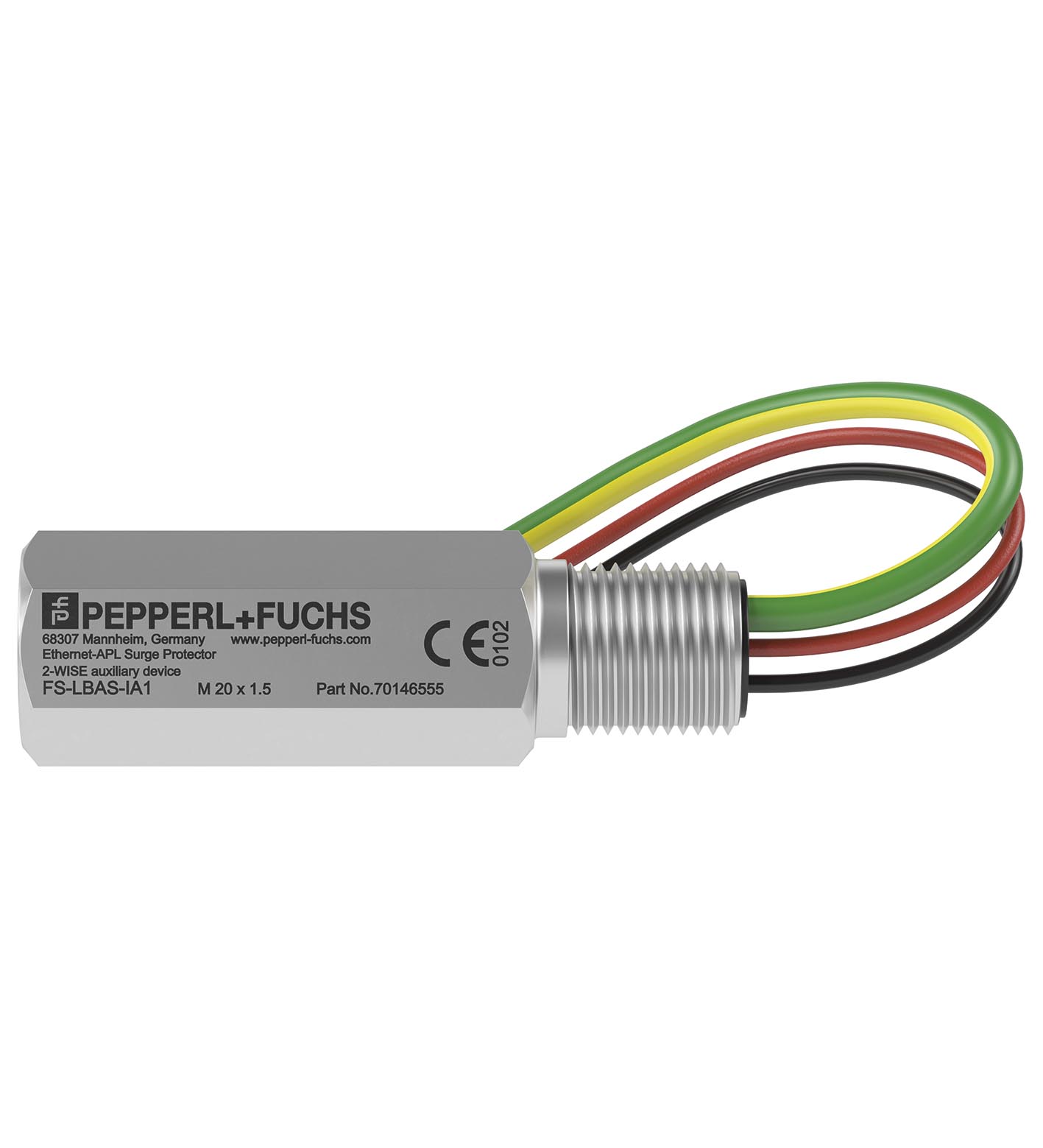

FS-LBAS-IA1

Surge Protector. FieldConnex®, Surge protector, Ethernet-APL, field mounting, Ex ia, Ex d, Ex e, 20 mm ISO thread, For Ethernet-APL spur ports, Intrinsically safe according to 2-WISE, Stainless steel...

Surge Protector. FieldConnex®, Surge protector, Ethernet-APL, field mounting, Ex ia, Ex d, Ex e, 20 mm ISO thread, For Ethernet-APL spur ports, Intrinsically safe according to 2-WISE, Stainless steel housing for field device mounting, ISO 20 mm thread. Design / Mounting: Outside installation. Installation in hazardous area: Zone 1. Interface type: Ethernet-APL auxiliary device. Rated voltage: 30 V. Rated current: 500 mA. Impulse rating: 2 kV/1 kA (category C1) per line 5 kV/2,5 kA (category C2) per line 0,5 kA (category D1) per line. Impulse discharge current (10/350 µs): 0.5 kA per line. Nominal discharge current (8/20 µs): . per line2.5 kAtotal5 kA: . per line: 2.5 kA. total: 5 kA. Max. surge current (8/20 µs): 5 kA overstressed fault mode 1 acc. to IEC 61643-21. Voltage protection level: . Line/Earthmax. 1800 V C1 , 1 kA per linemax. 2100 V C2 , 2.5 kA per linemax. 50 V C3 , 50 A per linemax. 1400 V B2 , 50 A per line: . Line/Earth: max. 1800 V C1 , 1 kA per linemax. 2100 V C2 , 2.5 kA per linemax. 50 V C3 , 50 A per linemax. 1400 V B2 , 50 A per line. Degree of protection: IEC/EN 60529. Climatic conditions: IEC 60721. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Surge protection: IEC 61643-21. Ethernet: Ethernet-APL ,IEEE 802.3 for 10BASE-T1L. Ambient temperature: -50 ... 80 °C (-58 ... 176 °F). Storage temperature: -50 ... 90 °C (-58 ... 194 °F). Shock resistance: 15 g 11 ms. Vibration resistance: 1 g , 10 ... 150 Hz. Connection type: wire ends APL + red , APL - black , protective conductor (PE) green/yellow. Core cross section: APL +, APL - 0.8 mm2 , PE 1.3 mm2. Housing material: Stainless steel 1.4401/316. Degree of protection: IP67. Mass: 200 g. Mounting: ISO 20 mm. EU-type examination certificate: TÜV 22 ATEX 8786 X. Marking2-WISE auxiliary deviceMarking ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb ,[exsign] ll 2 G Ex db eb mb IIC T6 Gb ,[exsign] l M2 Ex eb mb I Mb ,[exsign] lI 2 (1) G Ex db [ia Ga] IIC T6 GbVoltageUi30 VCurrentIi500 mAInternal capacitanceCinegligible 0 nFInternal inductanceLi negligible 0 µH: . Marking: 2-WISE auxiliary device. Marking: ll 2 (1) G Ex ia [ia Ga] IIC T6 Gb ,[exsign] ll 2 (1) D Ex ia [ia Da] lIIC T80°C Db ,[exsign] l M2 (M1) Ex ia [ia Ma] l Mb ,[exsign] ll 2 G Ex db eb mb IIC T6 Gb ,[exsign] l M2 Ex eb mb I Mb ,[exsign] lI 2 (1) G Ex db [ia Ga] IIC T6 Gb. Voltage: 30 V. Current: 500 mA. Internal capacitance: negligible 0 nF. Internal inductance: negligible 0 µH. Directive conformity: . Directive 2014/34/EUEN 60079-0:2018 ,EN 60079-7:2015+A1:2018 ,EN 60079-11:2012 ,EN 60079-18:2015 ,EN 60079-1:2014 ,IEC TS 60079-47:2021: . Directive 2014/34/EU: EN 60079-0:2018 ,EN 60079-7:2015+A1:2018 ,EN 60079-11:2012 ,EN 60079-18:2015 ,EN 60079-1:2014 ,IEC TS 60079-47:2021. IECEx approval: IECEx TUR 22.0017X. Approved forEx ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb ,Ex db eb mb IIC T6 Gb ,Ex db eb mb I Mb ,Ex db [ia Ga] IIC T6 Gb: . Approved for: Ex ia [ia Ga] IIC T6 Gb ,Ex ia [ia Da] lIIC T80°C Db ,Ex ia [ia Ma] l Mb ,Ex db eb mb IIC T6 Gb ,Ex db eb mb I Mb ,Ex db [ia Ga] IIC T6 Gb. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
