Pepperl Fuchs

FSP065-RBBN3

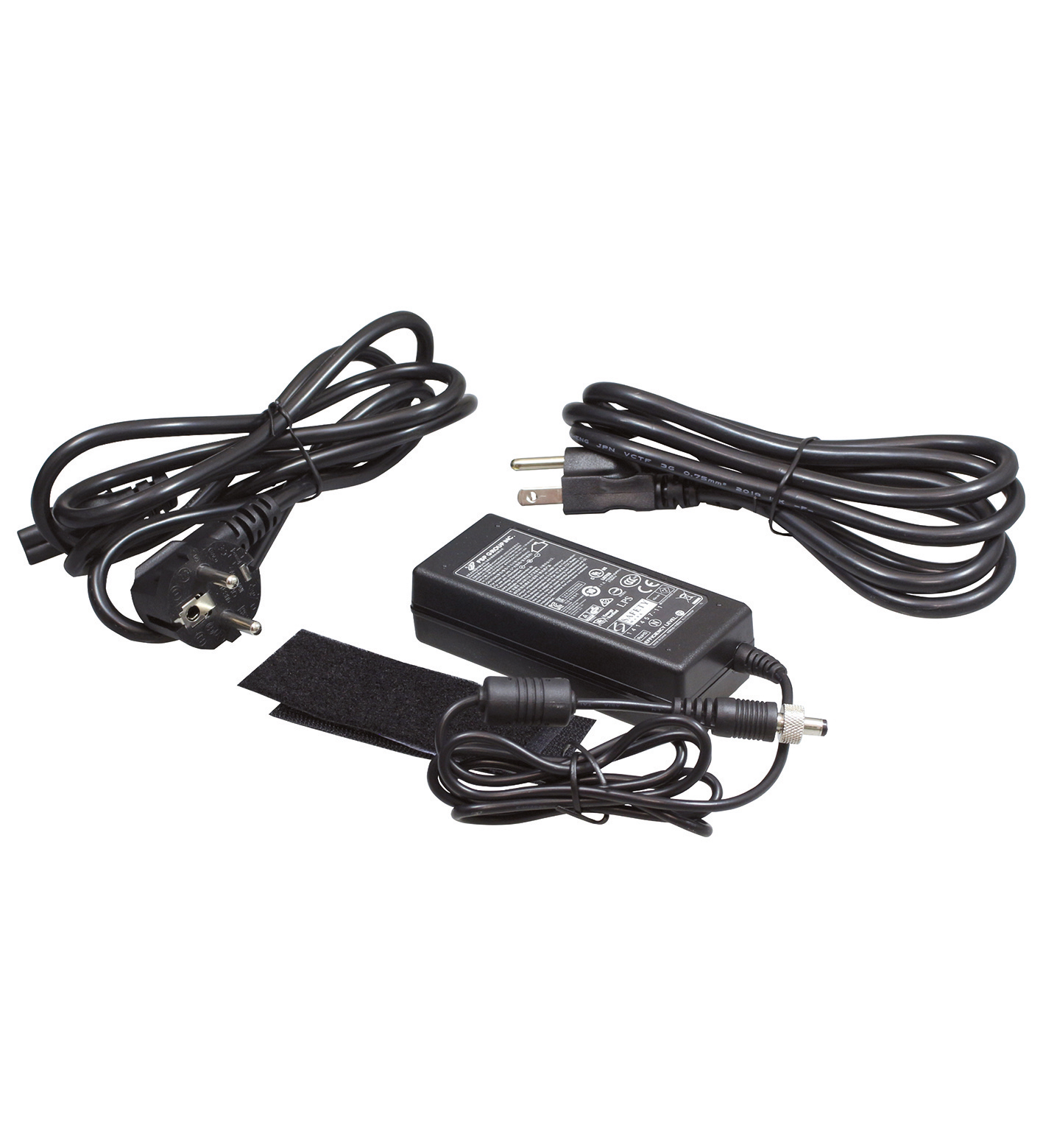

Power supply. Power supply for BTCs Industrial thin clients, DC jack with lock mechanism, Package includes EU-type F and US-type B power cords and hook-and-loop fastener. Type: Switching power supply, class I. Corresponds to: FSP065-RBBN3 from manufacturer FSP Group Inc.. MTBF: 100000 h confidence level 90% at 25 °C. Input voltage: 100 ... 240 V AC. Input current: 1.5 A. Input frequency: 50 ... 60 Hz. Output current: 3.42 A (at typical voltage, 0 ... 40 °C). Output voltage: 19 V (18.05 ... 19.95 V DC). Power: 65 W (at typical voltage, 0 ... 40 °C). Electromagnetic compatibility: . Directive 2014/30/EUEN 55032:2012+AC:2013 EN 55024:2010 IEC 61000-3-2:2014 IEC 61000-3-3:2013: . Directive 2014/30/EU: EN 55032:2012+AC:2013 EN 55024:2010 IEC 61000-3-2:2014 IEC 61000-3-3:2013. Low voltage: . Directive 2014/35/EUIEC 60950-1:2006+A11+A1+A12+A2 IEC 62368-1:2014: . Directive 2014/35/EU: IEC 60950-1:2006+A11+A1+A12+A2 IEC 62368-1:2014. RoHS: . Directive 2011/65/EU (RoHS)EN 50581:2012: . Directive 2011/65/EU (RoHS): EN 50581:2012. Operating temperature: -20 ... 60 °C (-4 ... 140 °F) 0 ... 40 °C, 100 % load50 °C, 70 % load60 °C, 60 % load. Storage temperature: -20 ... 80 °C (-4 ... 176 °F). Relative humidity: operating: 20 ... 80 % storage: 10 ... 90 %. Altitude: 5000 m above MSL. Connection: Input: Connection AC: C6, Class 1 Output: Connection DC: 5.5 / 2.5 DC jack, lockable. Dimensions: 108.3 mm x 46.3 mm x 30 mm (l x w x h). Approved for: CE, FCC, UL/cUL listed, CCC, TÜV/GS , Australian GEMS regulation, IC, KCC, AS/NZS CISPR 32:2013, CISPR 32:2012, AS/NZS 60950.1:2015 (UL AUS and NZ), UL 62368-1, and CSA C22.2 No. 62368-1-14. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
