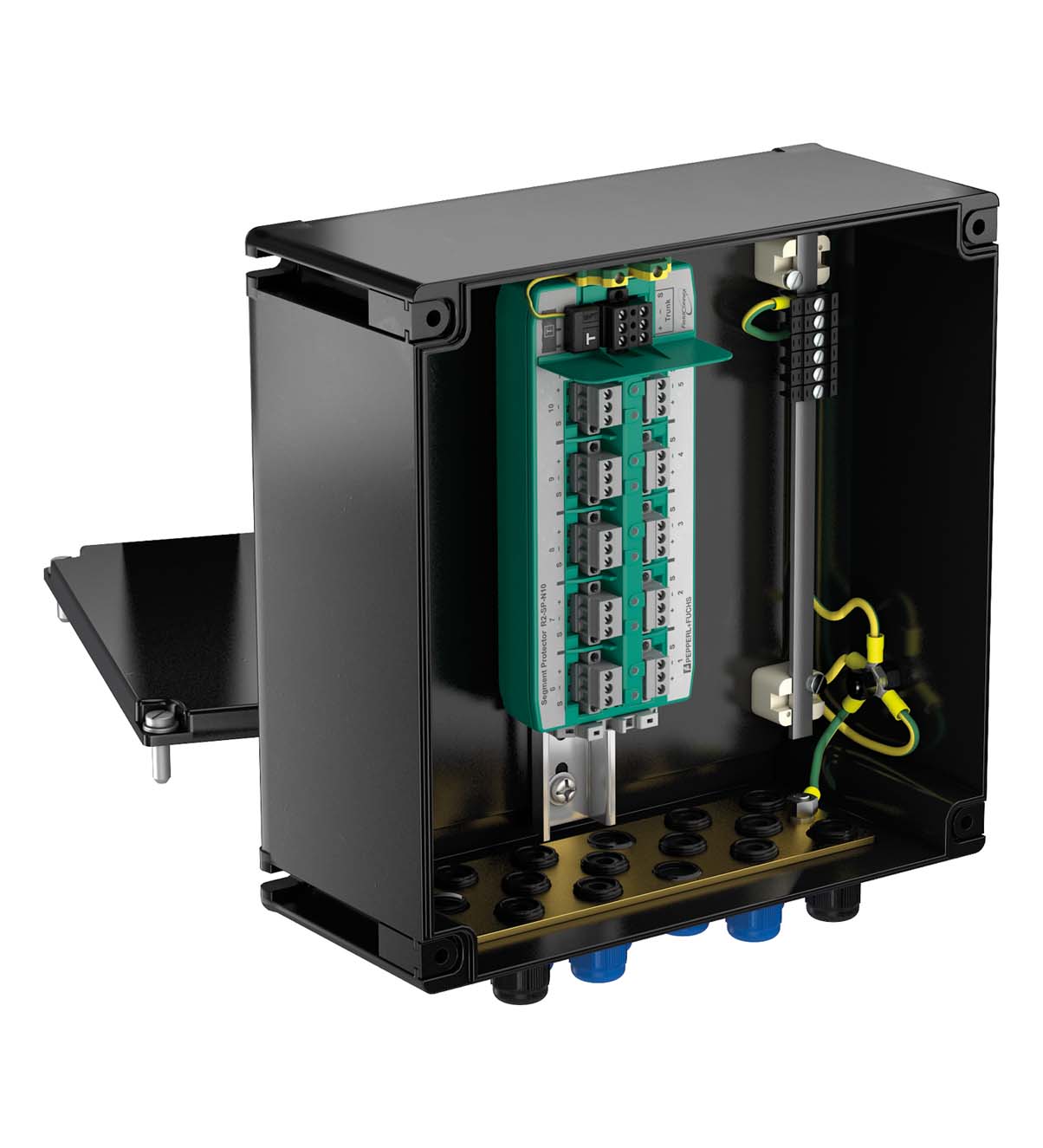

F.SP5.P**.B**.1.0.***.***.***0

Segment Protector Junction Box, Polyester (GRP). 4 ... 12 outputs Ex ic (FISCO or Entity), Glass fiber reinforced polyester, impact resistant, IP66, Configurable cable entries for trunk and spurs, Int...

Segment Protector Junction Box, Polyester (GRP). 4 ... 12 outputs Ex ic (FISCO or Entity), Glass fiber reinforced polyester, impact resistant, IP66, Configurable cable entries for trunk and spurs, International approvals, For FOUNDATION Fieldbus H1 and PROFIBUS PA, Device coupler location: non-explosion hazardous area<BR>Zone 2 - high-power trunk, Device coupler location [2]: Zone 2 - high-power trunk, Instrument location / spur protection: non-explosion hazardous area<BR>Zone 2 - all relevant types of protection<BR>Zone 1 - increased safety. Design / Mounting: Outside installation. Installed components: Segment Protector R2-SP-IC* For technical data on installed electronic component see data sheet.. Degree of protection: EN 60529. Ambient temperature: -30 ... 55 °C (-22 ... 131 °F) , (extended temperature range available on request). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Degree of protection: IP66. Dimensions: . W x H x D271 mm x 271 mm x 136 mm (1 x R2-SP-IC*) , 544 mm x 271 mm x 136 mm (2 x R2-SP-IC*): . W x H x D: 271 mm x 271 mm x 136 mm (1 x R2-SP-IC*) , 544 mm x 271 mm x 136 mm (2 x R2-SP-IC*). Mounting: thru-holes Ø6.5 mm. Certificate: PF 16 CERT 3134 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 3G Ex nA [ic] IIC T4 Gc [exsign] II 3D Ex tc [ic] IIIC T135°C Dc: . Marking: II 3G Ex nA [ic] IIC T4 Gc [exsign] II 3D Ex tc [ic] IIIC T135°C Dc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014: . Directive 2014/34/EU: EN 60079-0:2012 , EN 60079-15:2010 , EN 60079-31:2014. IECEx approval: IECEx PTB 09.0016 , suitable Junction Box on request

Brand	Pepperl Fuchs
Lifecycle status	active
