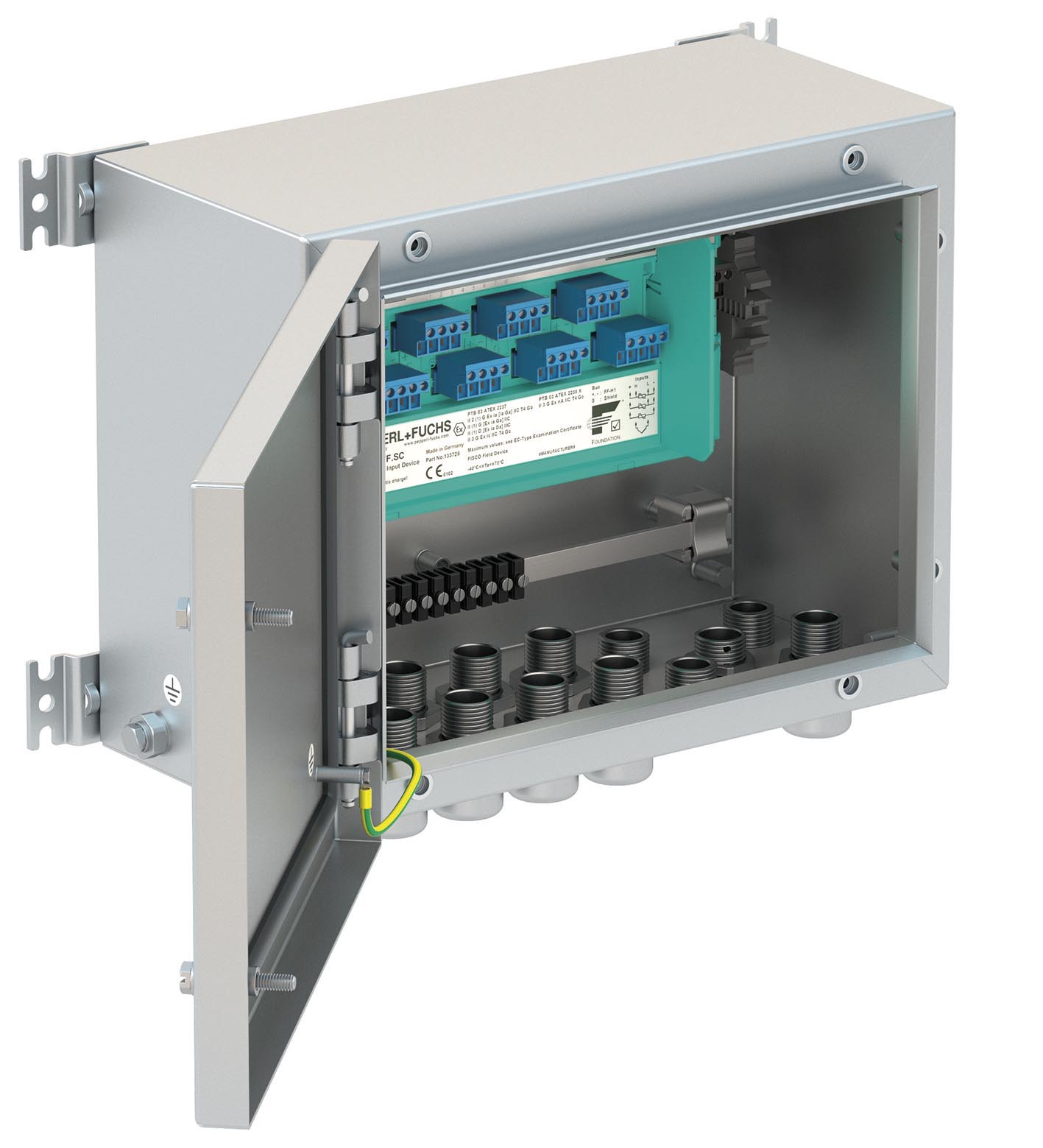

F.TI0.T12.*08.P.0.***.***.**00
Temperature Multi-Input Junction Box. Temperature Multi-Input Junction Box, Brushed Stainless Steel, 8 channel universal temperature interface, Brushed enclosure, IP66, Configurable cable entries for...
Temperature Multi-Input Junction Box. Temperature Multi-Input Junction Box, Brushed Stainless Steel, 8 channel universal temperature interface, Brushed enclosure, IP66, Configurable cable entries for bus lines and field signal lines, International approvals, For PROFIBUS PA, Device coupler location: non-explosion hazardous area<BR>Zone 2 - high-power trunk<BR>Zone 1 - high-power trunk<BR>Zone 1/2 - intrinsically safe high-power trunk<BR>Zone 1 - intrinsically safe trunk, Device coupler location [2]: Zone 2 - high-power trunk. Design / Mounting: Outside installation. Installed components: Temperature Multi-Input Device RD0-TI-Ex8.PA.ST For technical data on installed electronic component see data sheet.. Degree of protection: EN 60529. Impact resistance: EN 60079-0. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Relative humidity: < 75 % (annual mean)< 95 % (30 d/year), no moisture condensation. Impact resistance: 7J. Enclosure cover: Hinged door with captive retaining screws. Degree of protection: IP66. Cable entry: cable gland and stopping plug options see separate table. Material: . HousingStainless steel 1.4404 / AISI 316LSurfacebrushedSealSilicone, fire-resistant, one piece, foamedMaterial thicknessenclosure body, enclosure cover, mounting plate: 1.5 mm: . Housing: Stainless steel 1.4404 / AISI 316L. Surface: brushed. Seal: Silicone, fire-resistant, one piece, foamed. Material thickness: enclosure body, enclosure cover, mounting plate: 1.5 mm. Dimensions: (W x H x D) 300 x 230 x 160 mm (SRM.23.30.16). Mounting: thru-holes Ø 7 mm. Grounding: grounding bolt M6 , brass, nickel-plated. EU-type examination certificate: PTB 07 ATEX 1061 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 2(1)G Ex ia [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db: . Marking: II 2(1)G Ex ia [ia Ga] IIC T4 Gb [exsign] II 2(1)D Ex tb [ia Da] IIIC T135°C Db. Certificate: PTB 17 ATEX 1011 X (assembled Junction Box) , for additional certificates see www.pepperl-fuchs.com. Marking II 3G Ex ic IIC T4 Gc [exsign] II 3G Ex nA IIC T4 Gc [exsign] II 3D Ex tc IIIC T135°C Dc: . Marking: II 3G Ex ic IIC T4 Gc [exsign] II 3G Ex nA IIC T4 Gc [exsign] II 3D Ex tc IIIC T135°C Dc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-1:2014+AC:2018 , EN IEC 60079-7:2015+A1:2018 , EN 60079-11:2012 , EN 60079-18:2015+Cor.2018 , EN 60079-31:2014. IECEx approval: IECEx PTB 07.0036 X , Zone 1 , suitable Junction Box on request IECEx PTB 09.0016 X , Zone 2 , suitable Junction Box on request. INMETRO approval: TÜV 13.1143. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
