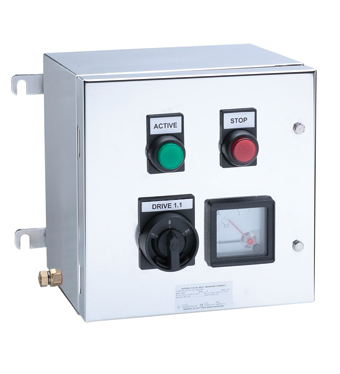

FXLS*.CS

Control Stations Ex e, Stainless Steel. Stainless Steel enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex de, Ex ib and Ex tb certified, Up to 81 operators per control station, 6 encl...

Control Stations Ex e, Stainless Steel. Stainless Steel enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex de, Ex ib and Ex tb certified, Up to 81 operators per control station, 6 enclosure size options, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Wide range of labels and accessories available. Operating voltage: 250 V AC max.. Operating current: 16 A max.. Terminal capacity: 2.5 mm2. Terminal torque0.8 Nm: . Terminal torque: 0.8 Nm. Enclosure cover: fully detachable , concealed hinges. Cover fixing: M6 stainless steel hexagon head screws , optional quarter-turn key locks. Cover seal: one piece closed cell silicone. Degree of protection: IP66. Cable entry: cable glands as per specification. Gland plate on face(s)see data table: . Gland plate on face(s): see data table. Defined entry area: see data table. Material: . Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plate3 mm AISI 316L, (1.4404) stainless steelFinishelectropolished: . Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Gland plate: 3 mm AISI 316L, (1.4404) stainless steel. Finish: electropolished. Mass: see data table. Dimensions: see data table. Mounting: see data table. Grounding: M10 internal/external brass grounding bolt through enclosure body. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) -50 °C (-58 °F) on request. EU-type examination certificate: CML 16 ATEX 3009X. Marking II 2 GD Ex db eb mb IIC T* Gb Ex ib IIC T* Gb Ex db eb ib mb IIC T* Gb T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +55 °CMaximum power dissipationsee data table: . Marking: II 2 GD Ex db eb mb IIC T* Gb Ex ib IIC T* Gb Ex db eb ib mb IIC T* Gb T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +55 °C. Maximum power dissipation: see data table. IECEx approval: IECEx CML 16.0008X. UKCA approval: CML 22 UKEX 2550X. ECAS approval: 22-10-53256/E22-09-052316/NB0002. IA approval: MASC S/18-0003X. CCC approval: 2020322304002545. Degree of protection: EN60529. CE marking: 0102. Ordering information: This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: Mounting plate M10 internal/external stainless steel grounding bolt M6 internal stainless steel grounding bolt welded to lid M6 internal stainless steel grounding bolt welded to bottom gland plate quarter-turn key locks engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label. Control elements: small footprint max. 81 see data table all NC contacts have a direct opening action for emergency stop functions

Brand	Pepperl Fuchs
Lifecycle status	active
