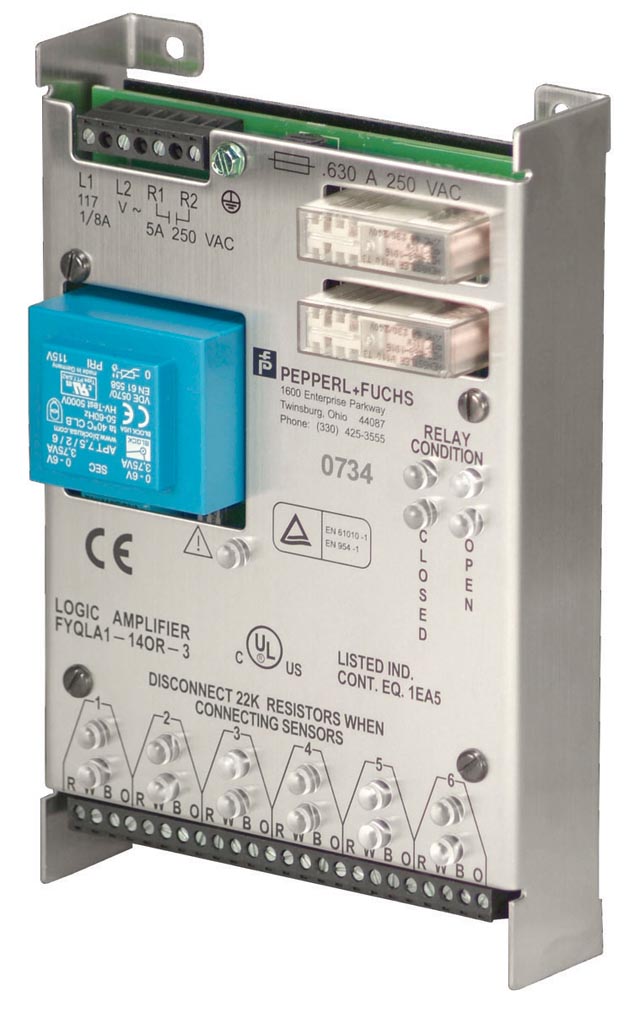

FYQLA1-140R-3

Logic Amplifier. Installation: Logic Amplifier must be in a NEMA sealed enclosure.. Output polarity: DC. Time delay before availability: 3 s. Output type: Relay output Electrical life: Contact Rating...

Logic Amplifier. Installation: Logic Amplifier must be in a NEMA sealed enclosure.. Output polarity: DC. Time delay before availability: 3 s. Output type: Relay output Electrical life: Contact Rating 250 V AC @ 5A for 100k cycles MIN. UL File Number: E179102. Operating voltage: 120 V AC ± 15% , 45 ... 65 Hz. Fault reaction time: < 4 s. Function indicator: Fault Detected: Flashing LED Red. LED green: relay closed. LED red: relay Open. Electrical rating: Power dissipation 3 VA. Current: continuous current 5 mA to 5 A ( Normally open (NO) Contact ). Response time: < 20 ms ( switch open to contact open ). Standards: ISO 13849-1:2023 Category 3 PL d EN 63000:2018 EN 61326-3-1:2017 EN 60664-1:2020. UL approval: cULus Listed, General Purpose UL 508. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F) -20 ... 50 °C (-4 ... 122 °F) @ max. load. Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Connection type: ground screw connection , max 2.5 mm2. Housing material: 304 Stainless steel. Degree of protection: IP20 , Class 1 indoor use only. Dimensions: . Width135 mmDepth58 mmLength203 mm: . Width: 135 mm. Depth: 58 mm. Length: 203 mm. Mounting: Panel mount. Note: Accepts up to six 50FY41 series sensors. Note: Packaged with ten 22 kΩ resistors

Brand	Pepperl Fuchs
Lifecycle status	active
