Pepperl Fuchs

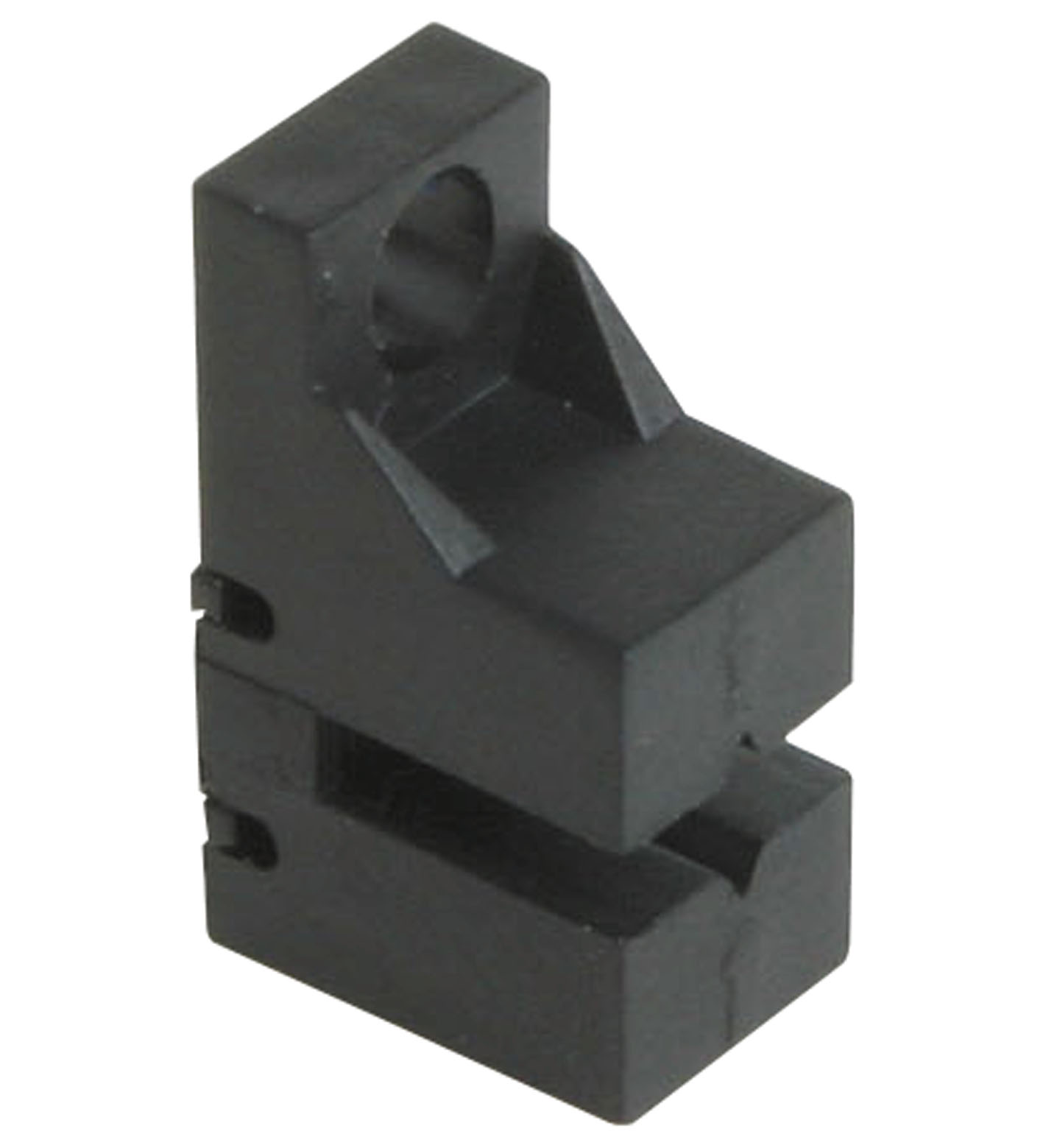

GL2-P/153

Photoelectric slot sensor. Miniature photoelectric slot sensor for the detection of small parts, P-shaped housing design, 1.8 mm slot width, infrared light, NPN outputs, fixed cable, Miniature design, Optimized for the detection of small parts, High switching frequency. Light source: IRED , 940 nm. Light type: IRED. Target size: 0.2 x 2.6 mm. Slot width: 1.8 mm. Slot depth: 1.8 mm. Ambient light limit: 1000 Lux. MTTFd: 44332 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operating voltage: 5 ... 30 V DC. Ripple: 10 %. Emitter: . Light type940 nm IR lightForward voltageVF< 1.6 V Peak forward voltageVFM30 VForward currentIF50 mAReverse voltageVR5 VReverse currentIR≤ 10 µAPower dissipation75 mW: . Light type: 940 nm IR light. Forward voltage: < 1.6 V. Peak forward voltage: 30 V. Forward current: 50 mA. Reverse voltage: 5 V. Reverse current: ≤ 10 µA. Power dissipation: 75 mW. Receiver: . Output typeNPNC-E breakdown voltageVCEO30 VE-C breakdown voltageVECO5 VCollector dark currentICEO< 1 µACollector DC currentIC20 mAPower dissipationPD75 mW: . Output type: NPN. C-E breakdown voltage: 30 V. E-C breakdown voltage: 5 V. Collector dark current: < 1 µA. Collector DC current: 20 mA. Power dissipation: 75 mW. Signal output: 1 NPN , photo transistor. Switching voltage: max. 30 V DC. Switching current: 20 mA. Response time: 25 µs. EAC conformity: TR CU 020/2011. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -40 ... 85 °C (-40 ... 185 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Core cross section: 4 x 0.08 mm2. Degree of protection: IP30. Connection: 610 mm, PVC cable , Individual colored wires. Material: . HousingPC: . Housing: PC. Mass: 4 g. Dimensions: . Height15.2 mmWidth6.3 mmDepth9.1 mm: . Height: 15.2 mm. Width: 6.3 mm. Depth: 9.1 mm

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request

Request sourcing Ask a question
