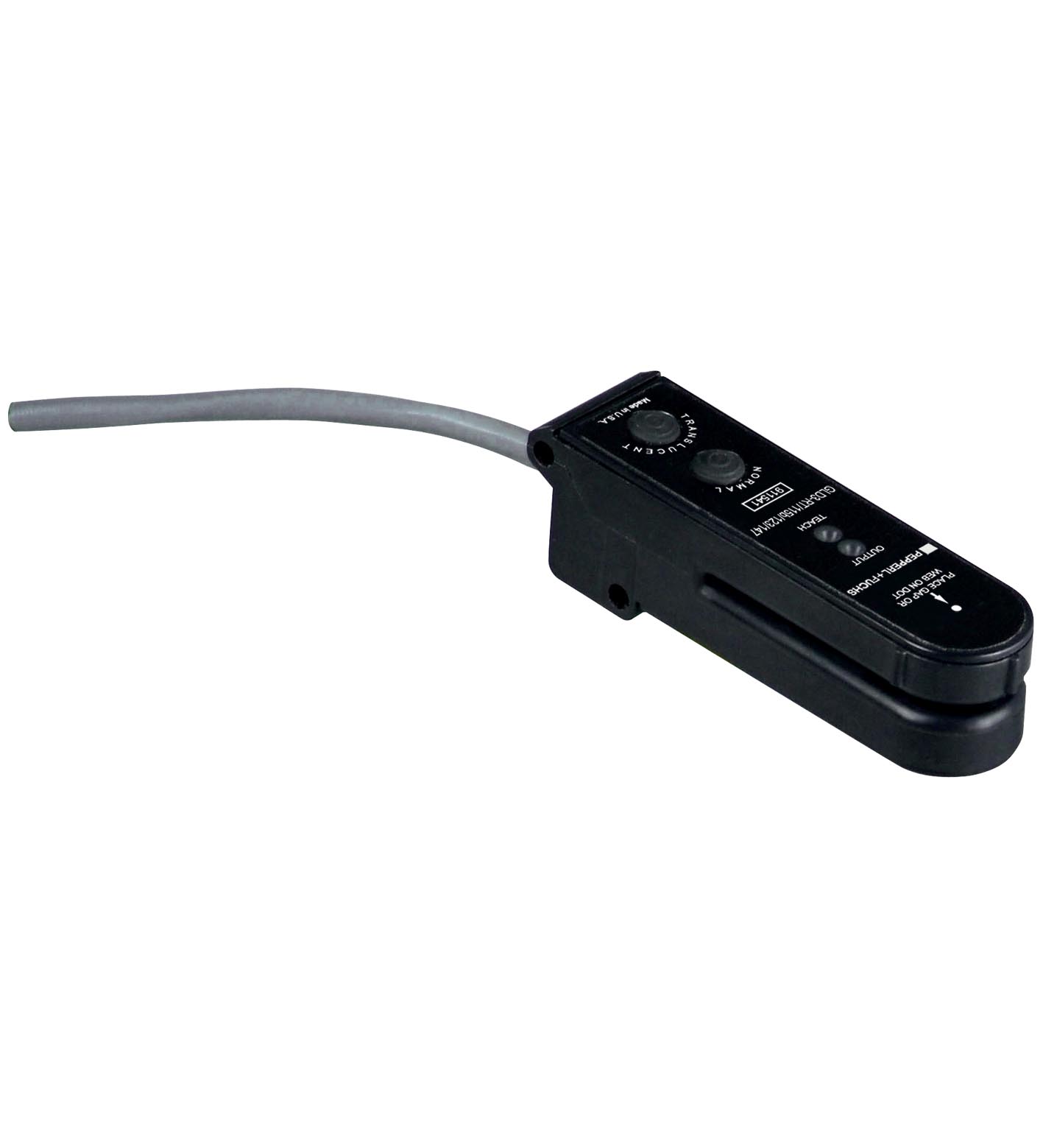

GLD3-RT/115/147

Photoelectric slot sensor. GLD3 series, Push-button programmable, Adjustable sensitivity, Detection of paper and foil labels, including translucent varieties. Light source: LED. Light type: modulated...

Photoelectric slot sensor. GLD3 series, Push-button programmable, Adjustable sensitivity, Detection of paper and foil labels, including translucent varieties. Light source: LED. Light type: modulated visible red light. Slot width: 3 mm. Slot depth: 54 mm. Function indicator: 2 LEDs. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: ≤ 45 mA. Switching type: light/dark on. Signal output: 1 NPN and 1 PNPShort circuit and overload protectedReverse polarity protected. Switching current: max. 150 mA. Voltage drop: ≤ 1.5 V. Switching frequency: 5 kHz. Response time: ≤ 100 µs. Product standard: EN 60947-5-2. UL approval: cULus. CCC approval: CCC approval / marking not required for products rated ≤36 V. Approvals: CE. USAcULusCanadacULus: . USA: cULus. Canada: cULus. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP66. Connection: 2 m fixed cable. Material: . HousingThermoplastic PPSOptical facezylexCablePVC: . Housing: Thermoplastic PPS. Optical face: zylex. Cable: PVC. Mass: 82.21 g. Dimensions: . Height27.21 mmWidth25 mmLength92.47 mm: . Height: 27.21 mm. Width: 25 mm. Length: 92.47 mm

Brand	Pepperl Fuchs
Lifecycle status	active
