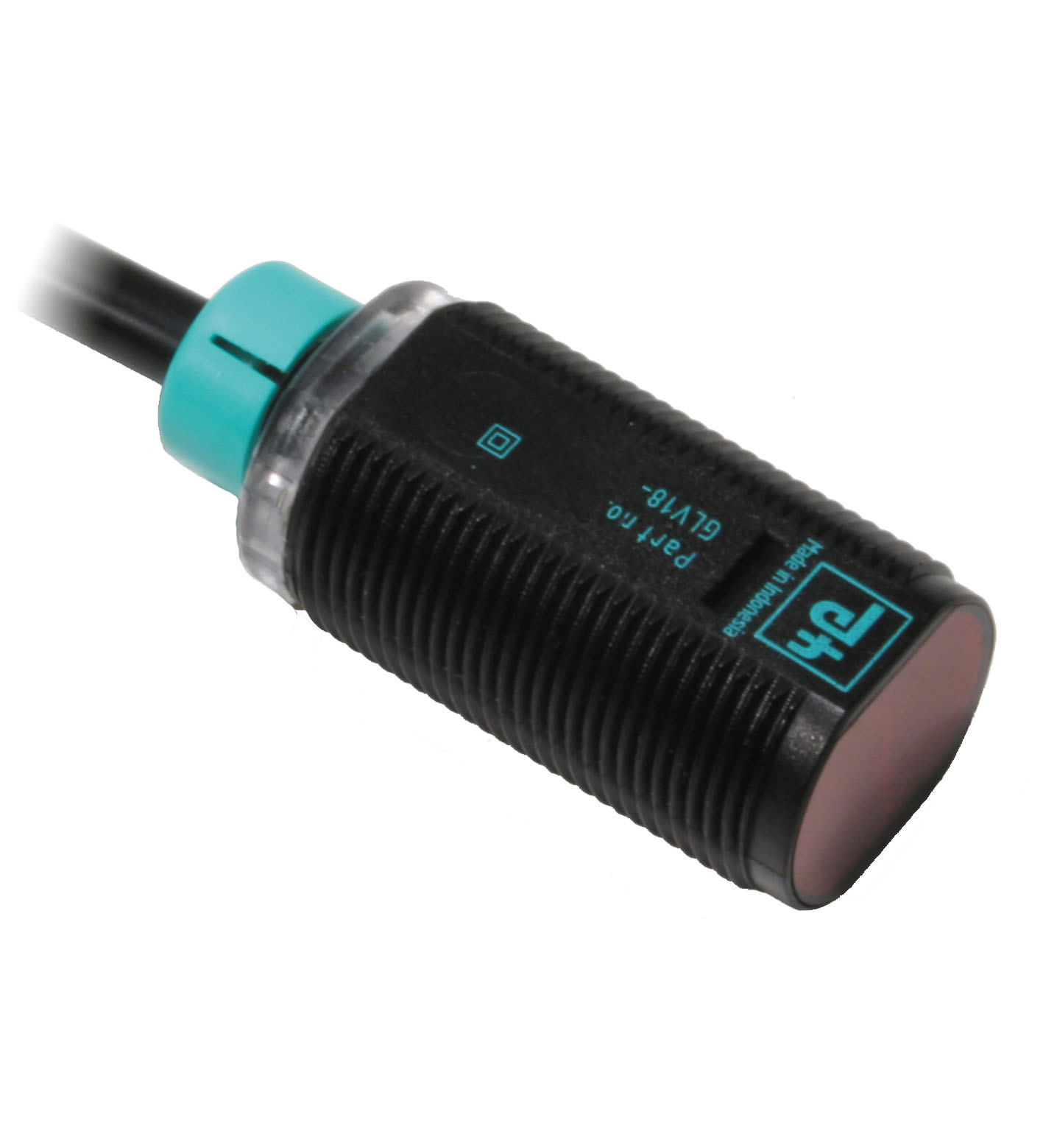

GLV18-6-4594

Retroreflective sensor. Retroreflective sensor, Short design in M18 plastic housing, 4 LEDs indicator for 360° visibility, Optimal price/power ratio. Effective detection range: 0 ... 4 m. Reflector di...

Retroreflective sensor. Retroreflective sensor, Short design in M18 plastic housing, 4 LEDs indicator for 360° visibility, Optimal price/power ratio. Effective detection range: 0 ... 4 m. Reflector distance: 0.05 ... 4 m. Threshold detection range: 5.5 m. Reference target: reflector C110-2. Light source: IRED. Light type: IRED , Modulated light , 880 nm. Polarization filter: no. Diameter of the light spot: approx. 200 mm at 5.5 m. Opening angle: approx. 2 °. Optical face: frontal. Ambient light limit: 30000 Lux. Accessories provided: Mounting aids. Operation indicator: LED green, statically lit Power on. Function indicator: LED yellow: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted. Operating voltage: 10 ... 30 V DC. No-load supply current: < 20 mA. Switching type: light-on. Signal output: 1 PNP, short-circuit protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. Protection class: II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: fixed cable 7000 mm. Material: . HousingPCOptical facePMMA: . Housing: PC. Optical face: PMMA. Mass: approx. 270 g. Dimensions: . Length39.8 mmDiameter18 mmThread sizeM18: . Length: 39.8 mm. Diameter: 18 mm. Thread size: M18

Brand	Pepperl Fuchs
Lifecycle status	active
