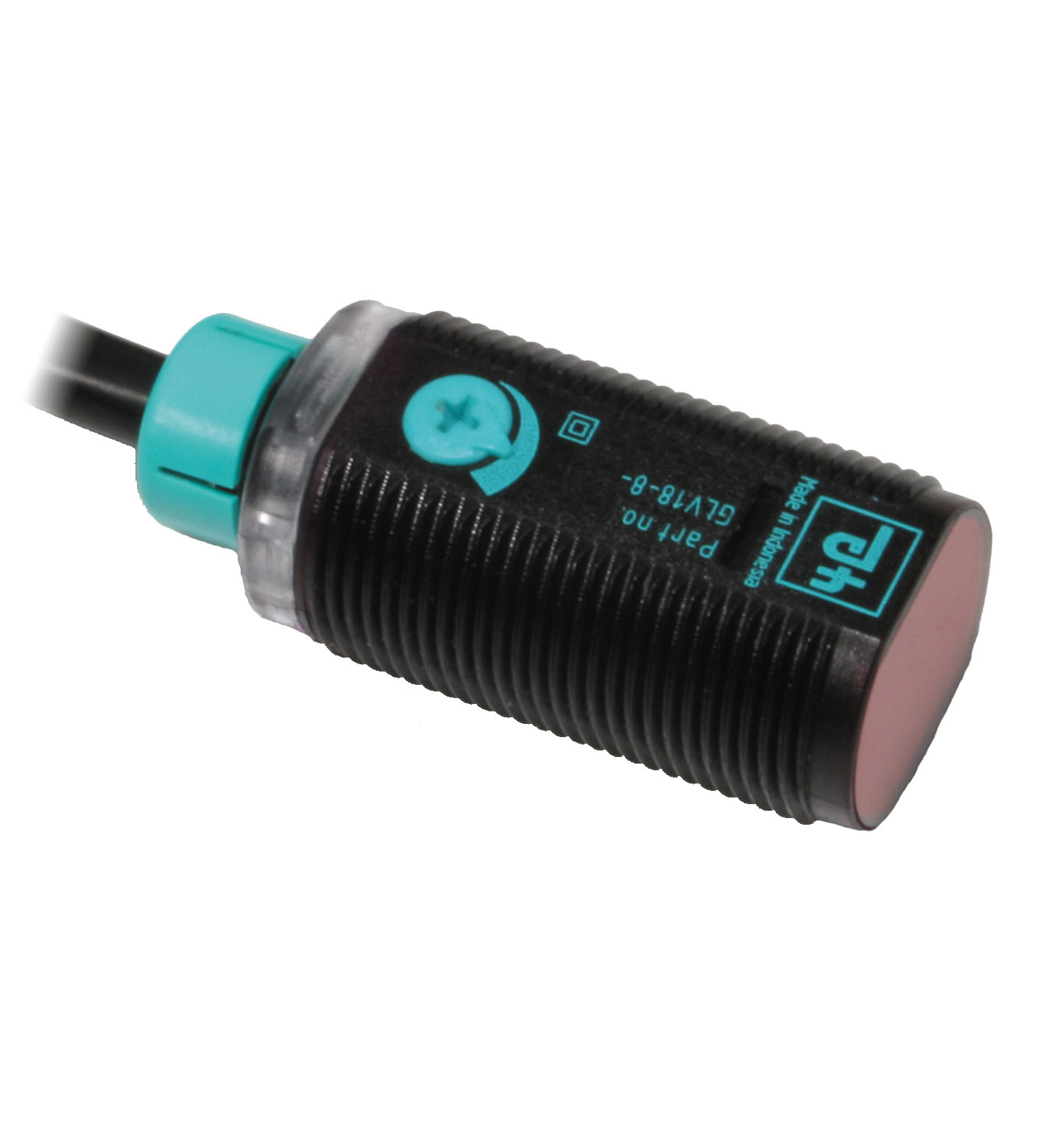

GLV18-8-600-IR/25/102/115

Diffuse mode sensor. Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 600 mm sensing range, red light, light on, DC version, NPN output, fixed cable, Efficient Li...

Diffuse mode sensor. Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 600 mm sensing range, red light, light on, DC version, NPN output, fixed cable, Efficient Line in a short M18 plastic housing for standard applications, Very high detection range, 4 LEDs indicator for 360° visibility, Optimized potentiometer design for a clear control button layout in the application, Version with front optical face. Detection range: 50 ... 600 mm adjustable. Detection range max.: 0 ... 600 mm. Reference target: 100 mm x 100 mm Kodak white. Light source: LED. Light type: modulated infrared light , 850 nm. Diameter of the light spot: approx. 60 mm at 600 mm. Opening angle: approx. 6 °. Optical face: frontal. Ambient light limit: 30000 Lux. Hysteresis: < 15 %. MTTFd: 920 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on. Function indicator: LED yellow: lights when object is detected ; flashes when falling short of the operating reserve. Control elements: sensitivity adjustment. Operating voltage: 10 ... 30 V DC. No-load supply current: < 20 mA. Switching type: light-on. Signal output: 1 NPN, short-circuit protected open collector. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. Protection class: II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 2 m fixed cable. Material: . HousingPCOptical facePMMACablePVC: . Housing: PC. Optical face: PMMA. Cable: PVC. Mass: approx. 75 g. Dimensions: . Length39.8 mmDiameter18 mmThread sizeM18: . Length: 39.8 mm. Diameter: 18 mm. Thread size: M18

Brand	Pepperl Fuchs
Lifecycle status	active
