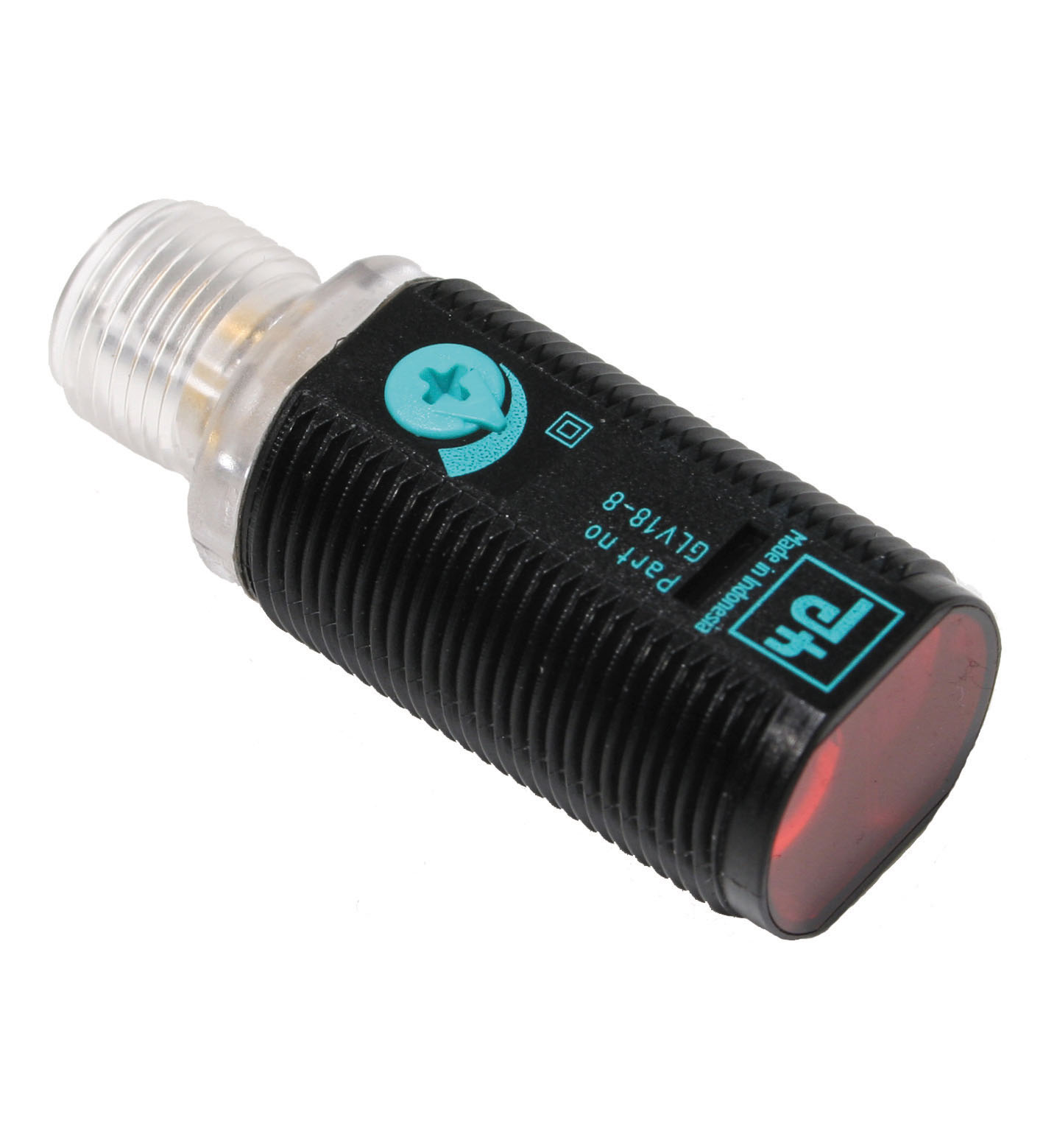

GLV18-8-600-IR/73/120

Diffuse mode sensor. Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 600 mm sensing range, red light, light/dark on, DC version, 2 PNP outputs, M12 plug, Efficie...

Diffuse mode sensor. Diffuse mode sensor, M18 threaded housing design, plastic housing, front optical face, 600 mm sensing range, red light, light/dark on, DC version, 2 PNP outputs, M12 plug, Efficient Line in a short M18 plastic housing for standard applications, Very high detection range, 4 LEDs indicator for 360° visibility, Optimized potentiometer design for a clear control button layout in the application, Version with front optical face. Detection range: 50 ... 600 mm adjustable. Detection range max.: 0 ... 600 mm. Reference target: 100 mm x 100 mm Kodak white. Light source: LED. Light type: modulated infrared light , 850 nm. Diameter of the light spot: approx. 60 mm at 600 mm. Opening angle: approx. 6 °. Optical face: frontal. Ambient light limit: 30000 Lux. Hysteresis: < 15 %. MTTFd: 920 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Operation indicator: LED green, statically lit Power on. Function indicator: LED yellow: lights when object is detected ; flashes when falling short of the operating reserve. Control elements: sensitivity adjustment. Operating voltage: 10 ... 30 V DC. No-load supply current: < 20 mA. Switching type: light/dark on. Signal output: 2 PNP, complementary, short-circuit protected, open collectors. Switching voltage: max. 30 V DC. Switching current: max. 100 mA. Voltage drop: ≤ 1.5 V DC. Switching frequency: 500 Hz. Response time: ≤ 1 ms. Product standard: EN 60947-5-2. Protection class: II, Rated insulation voltage ≤ 50 V AC with pollution degree 1-2 according to IEC 60664-1. UL approval: cULus Listed, Class 2 Power Source. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 60 °C (-13 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP67. Connection: 4-pin, M12 x 1 connector. Material: . HousingPCOptical facePMMAConnectorplastic: . Housing: PC. Optical face: PMMA. Connector: plastic. Mass: approx. 10 g. Dimensions: . Length43.9 mmDiameter18 mmThread sizeM18: . Length: 43.9 mm. Diameter: 18 mm. Thread size: M18

Brand	Pepperl Fuchs
Lifecycle status	active
