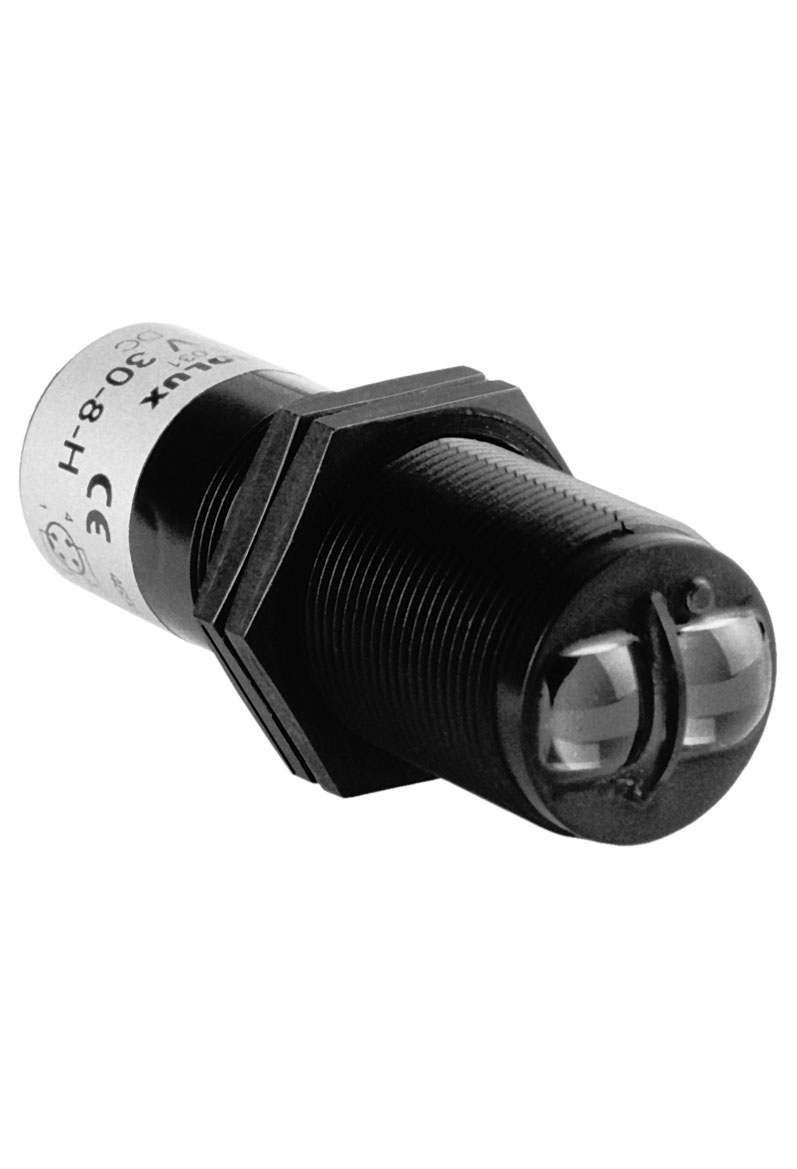

GLV30-8-2500/47/73c

Diffuse mode sensor. Diffuse mode sensor, M30 plastic housing, Light-on/dark-on switching. Detection range: 100 ... 2500 mm. Adjustment range: 750 ... 2500 mm. Light source: IRED. Light type: modulate...

Diffuse mode sensor. Diffuse mode sensor, M30 plastic housing, Light-on/dark-on switching. Detection range: 100 ... 2500 mm. Adjustment range: 750 ... 2500 mm. Light source: IRED. Light type: modulated infrared light. Diameter of the light spot: approx. 450 mm at a distance of 2000 mm. Opening angle: ± 7 °. Ambient light limit: 30000 Lux. Function indicator: LED yellow, lights up if receiver is not lit. Control elements: Sensing range adjuster. Operating voltage: 24 V DC ± 20 %. Ripple: 10 %. No-load supply current: 30 mA. Switching type: light/dark on. Signal output: 2 PNP, complementary, short-circuit protected, reverse polarity protected. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 35 Hz. Response time: 10 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67. Connection: Plastic connector M12 x 1, 4-pin. Material: . HousingABSOptical faceplastic lenses: . Housing: ABS. Optical face: plastic lenses. Mass: approx. 70 g. Dimensions: . Length89 mmDiameter30 mm: . Length: 89 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
