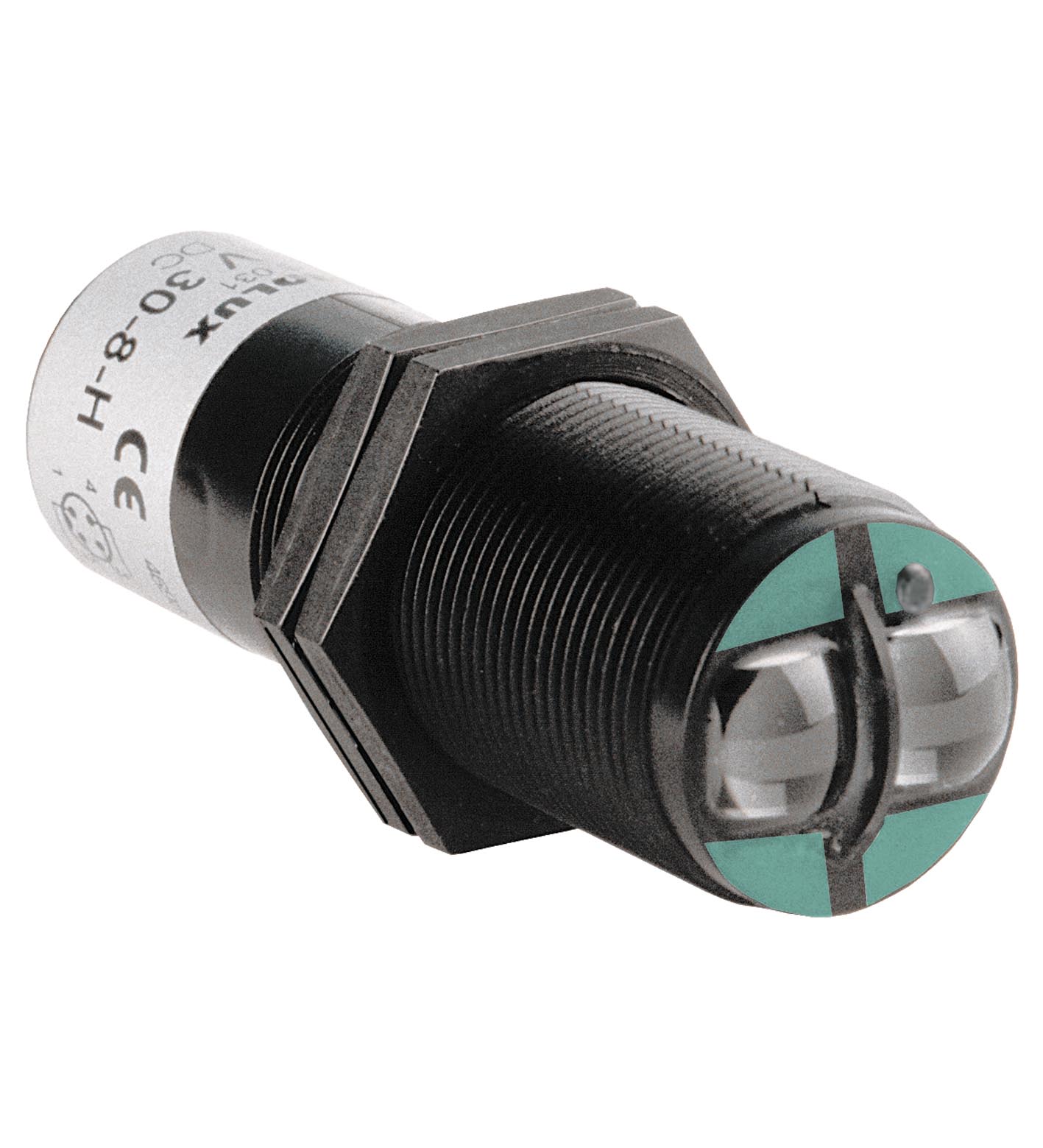

GLV30-8-H-2407

Background suppression sensor. Background suppression sensor, M30 plastic housing, Dark-On switching. Detection range: 50 ... 1000 mm. Background suppression: starts from 2000 mm. Light source: IRED....

Background suppression sensor. Background suppression sensor, M30 plastic housing, Dark-On switching. Detection range: 50 ... 1000 mm. Background suppression: starts from 2000 mm. Light source: IRED. Light type: modulated infrared light. Black-white difference (6 %/90 %): < 700 mm. Diameter of the light spot: 30 mm at a distance of 1000 mm. Opening angle: ± 1 °. Ambient light limit: 30000 Lux. Function indicator: LED yellow, lights up if receiver is not lit. Operating voltage: 24 V DC ± 20 %. Ripple: 10 %. No-load supply current: 30 mA. Switching type: dark-on. Signal output: 1 PNP, short-circuit protected, reverse polarity protected, open collector. Switching voltage: max. 30 V DC. Switching current: max. 200 mA. Switching frequency: 25 Hz. Response time: 20 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP67. Connection: Plastic connector M12 x 1, 4-pin. Material: . HousingABSOptical faceplastic lenses: . Housing: ABS. Optical face: plastic lenses. Mass: approx. 70 g. Dimensions: . Length89 mmDiameter30 mm: . Length: 89 mm. Diameter: 30 mm

Brand	Pepperl Fuchs
Lifecycle status	active
