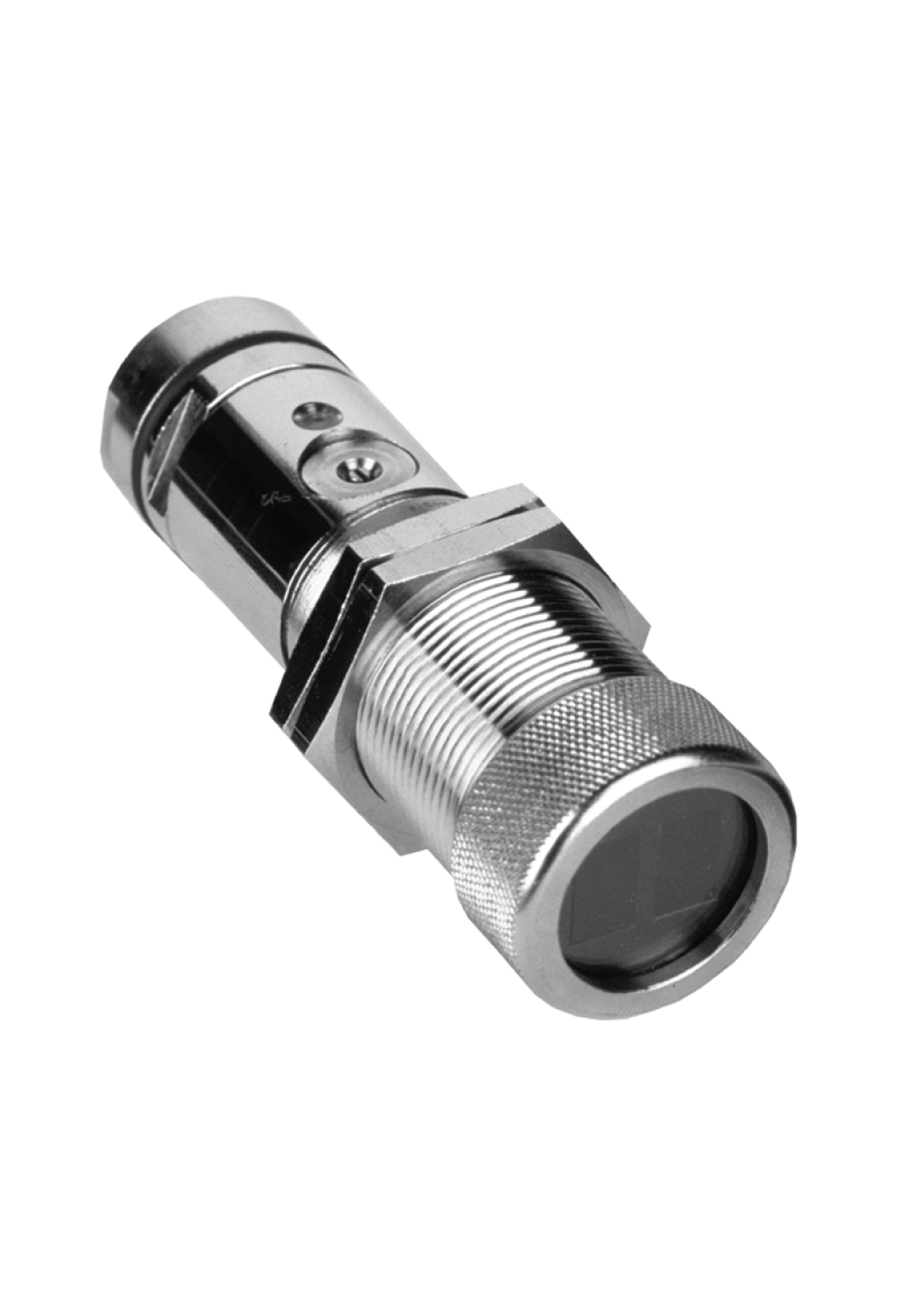

GLV30-LL-1227/40a/53/92

Diffuse mode sensor. Diffuse mode sensor, M30 nickel plated brass threaded housing, Light-on/dark-on switching, For glass fibre light guide, Extensive fiber optic product selection as accessories. Det...

Diffuse mode sensor. Diffuse mode sensor, M30 nickel plated brass threaded housing, Light-on/dark-on switching, For glass fibre light guide, Extensive fiber optic product selection as accessories. Detection range: without fiberoptic cable : 0 ... 1700 mm , with fiberoptic cable see selection table for fiberoptic cables. Adjustment range: 250 ... 1700 mm (on use without fiberoptics). Reference target: standard white 200 mm x 200 mm (only for retroreflective fiberoptic cables). Light source: IRED. Light type: modulated infrared light. Diameter of the light spot: approx. 400 mm at 1700 mm sensor range. Opening angle: approx. 15 °. Ambient light limit: 50000 Lux. Function indicator: LED yellow, lights up with receiver lit. Control elements: Sensitivity adjuster, light/dark switch. Operating voltage: 10 ... 30 V DC. Ripple: 10 %. No-load supply current: 40 mA. Switching type: light/dark on. Signal output: 1 PNP, not short-circuit protected. Switching voltage: max. 30 V DC. Switching current: max. 500 mA. Response time: 2 ms. De-energized delay: 7 ms. Product standard: EN 60947-5-2. UL approval: cULus Listed, Class 2 Power Source, Type 1 enclosure. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -20 ... 75 °C (-4 ... 167 °F). Degree of protection: IP65. Connection: 4-pin, M12 metal connector. Material: . Housingbrass, nickel-platedOptical faceglass: . Housing: brass, nickel-plated. Optical face: glass. Mass: 370 g

Brand	Pepperl Fuchs
Lifecycle status	active
