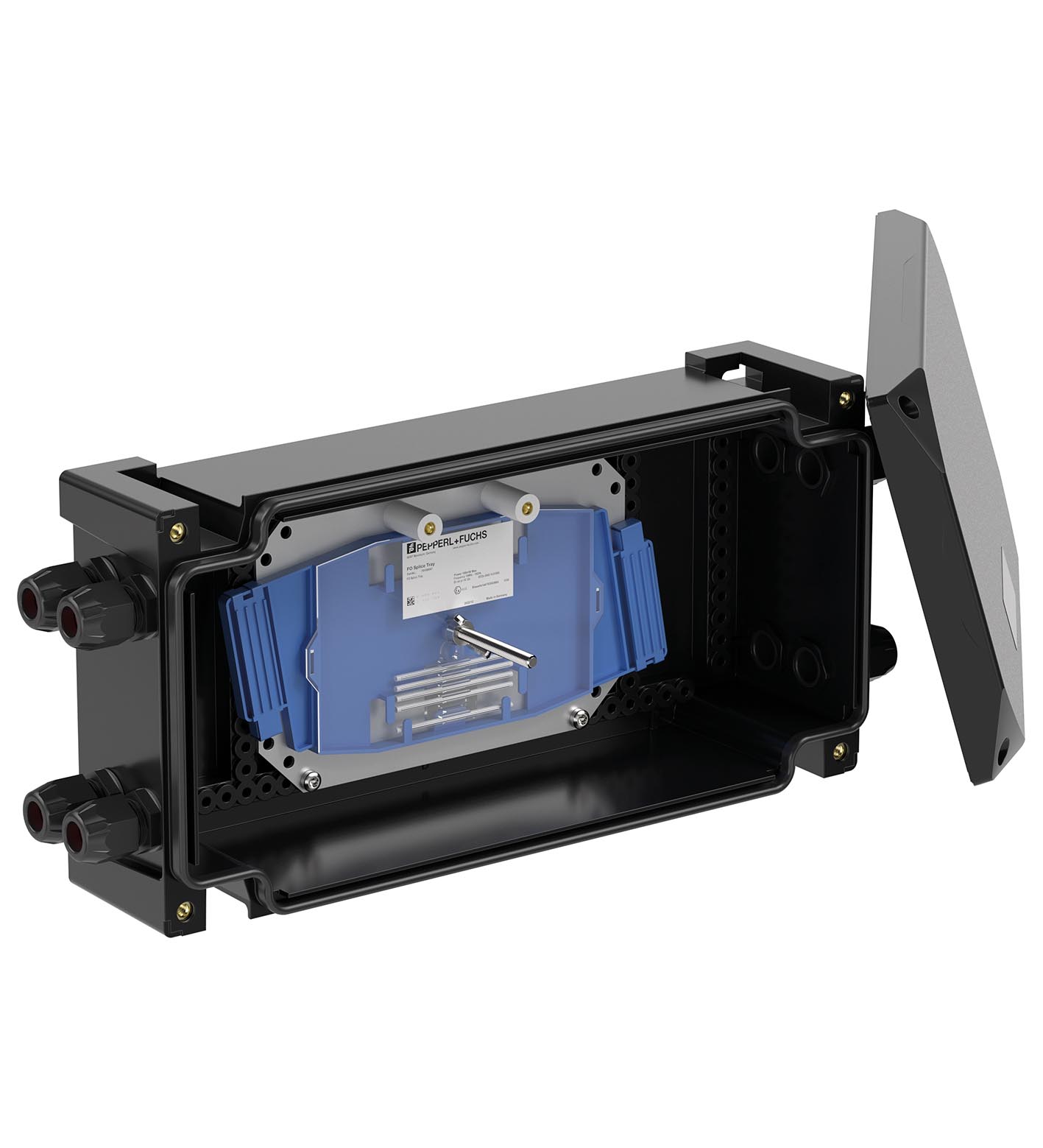

GR.TFO.*

FO Splice Boxes in Glass-Fiber Reinforced Polyester. Safe protection of fiber optic cable splices in hazardous areas, Up to 8 splice trays, 12 fusion-type splices per tray, Installation in Zone 1, Zon...

FO Splice Boxes in Glass-Fiber Reinforced Polyester. Safe protection of fiber optic cable splices in hazardous areas, Up to 8 splice trays, 12 fusion-type splices per tray, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex op pr and Ex tb certified , Carbon loaded, antistatic glass-fiber reinforced polyester, Modern design with high impact resistance, Easy installation due to easily accessible mounting points, Easy cover opening without damage due to multiple pry points, Wide range of cable glands and stopping plugs, Explosion protection: Ex e. Enclosure cover: fully detachable. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. Screws: M6 stainless steel combination Phillips and slotted screw. Number: see data table. Tightening torque: see data table. Cover seal: foamed silicone. Degree of protection: IP66. Cable entry: see data table. Cable entry face C: . M20 quantity: . M20 series: see data table. M20 type: see data table. M20 clamping range: . Cable entry face D: . M20 quantity: . M20 series: see data table. M20 type: see data table. M20 clamping range: see data table. Material: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Finish: inherent color black. Grounding plate: 2 mm brass optional. Mass: see data table. Dimensions: see data table. External dimension (A): see data table. External dimension (B): see data table. External dimension (C): see data table. Internal dimension (D): see data table. Internal dimension (E): see data table. Internal dimension (F): see data table. Mounting holes distance (G): see data table. Mounting holes distance (H): see data table. Mounting holes diameter (J): see data table. Thickness of mounting brackets (N): . Mounting: see data table. Grounding: none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt. Fiber optic splice tray: . Number: see data table. Dimensions: 142 mm x 92 mm x 8 mm. Quantity of splice connections per tray: 12. Type of splices: fusion with 60 mm heatshrink protectors. Fiber optic splicing protection holders per tray: 2 for heatshrink splice protectors 60 mm, 6 splices each. Fiber optic strain relief per tray: 2 each for 12 fibers with 0.9 mm or 1.1 mm insulation, removeable. Fiber optic cables min. bending radius: 35 mm. Fiber optic cables frequency range: 10 ... 10000 MHz. Standards: DIN 47662 and Telecom standards. Ambient temperature: -40 ... 55 °C (-40 ... 131 °F) -50 °C (-58 °F) on request. EU-type examination certificate: CML 17 ATEX 3255X BASEEFA 14 ATEX 0368U. Marking: II 2 GD Ex op pr IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T5/T95 °C @ Ta +55 °C. IECEx approval: IECEx CML 17.0144X IECEx BAS 14.0169U. UKCA approval: CML 21 UKEX 3896X. ECAS approval: 22-10-53257/E22-09-052274/NB0002. CCC approval: 2020322303002568. Degree of protection: EN 60529. CE marking: 0102. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts

Brand	Pepperl Fuchs
Lifecycle status	active
