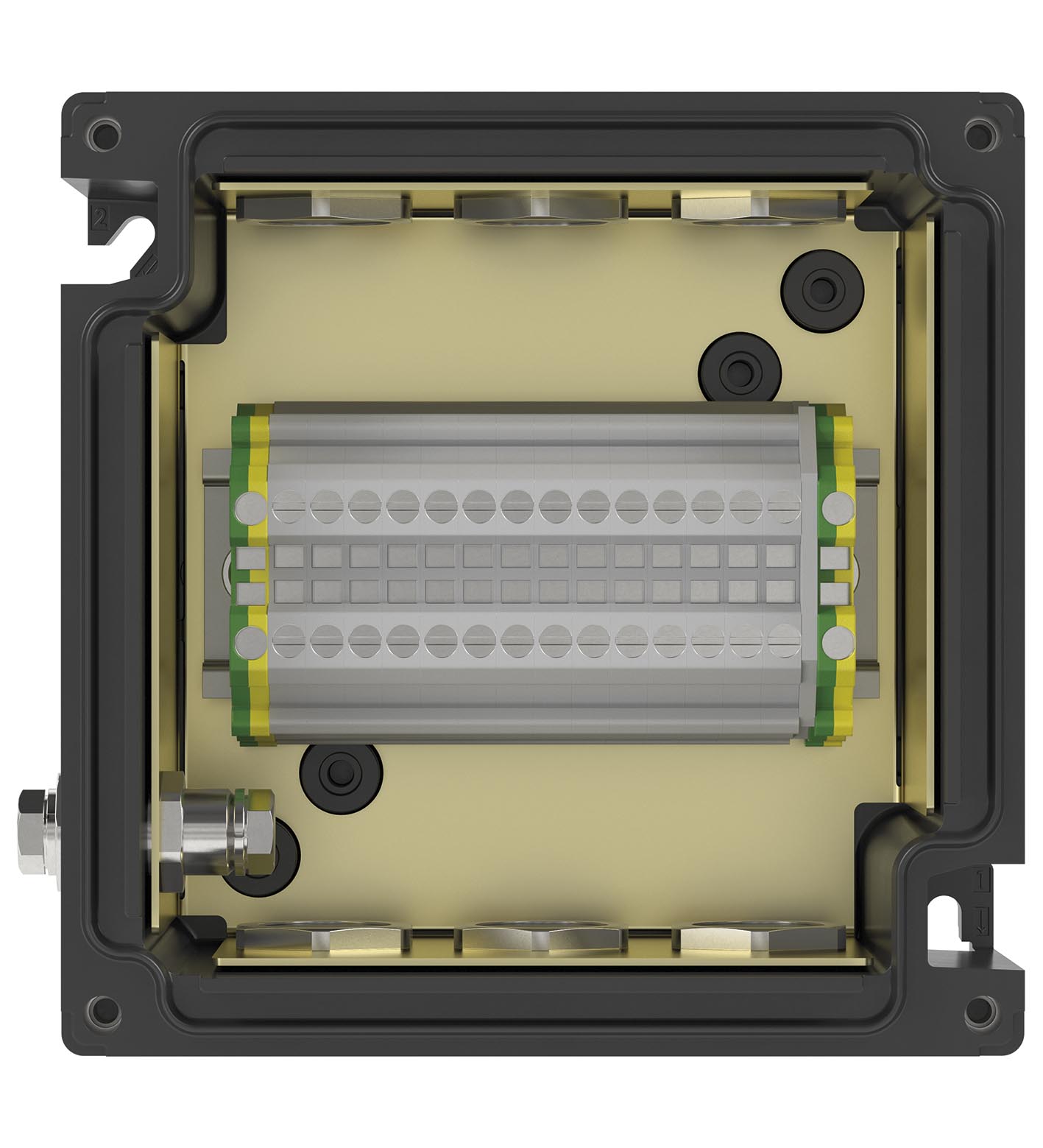

Junction Box Ex e, Glass-Fiber Reinforced Polyester (GRP). Carbon loaded, antistatic glass-fiber reinforced polyester, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex e and Ex tb certified, 12...
Junction Box Ex e, Glass-Fiber Reinforced Polyester (GRP). Carbon loaded, antistatic glass-fiber reinforced polyester, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex e and Ex tb certified, 129 mm x 129 mm x 85 mm, Modern design with high impact resistance, Easy installation due to easily accessible mounting points, Easy cover opening without damage due to multiple pry points, Top face stopping plug polyamide, 3x M20; bottom face stopping plug polyamide, 3x M20, Explosion protection: Ex e. Operating voltage: 690 V AC / DC max. for ATEX / IECEx. Enclosure cover: fully detachable. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. ScrewsM4Number4Tightening torque3.5 Nm: . Screws: M4. Number: 4. Tightening torque: 3.5 Nm. Cover seal: foamed silicone. Degree of protection: IP66. Cable entry: thru-holes. Cable entry face A: . M20 quantity3M20 seriesStopping PlugM20 typeSP.PE.M20.*: . M20 quantity: 3. M20 series: Stopping Plug. M20 type: SP.PE.M20.*. Cable entry face B: . M20 quantity3M20 seriesStopping PlugM20 typeSP.PE.M20.*: . M20 quantity: 3. M20 series: Stopping Plug. M20 type: SP.PE.M20.*. Terminal assembly: . Rail orientationhorizontalNumber of horizontal rails1Usable length per horizontal rail67.5 mmTerminal type12 x UT 2.5 2 x UT 2.5 PETerminal capacity2.5 mm2: . Rail orientation: horizontal. Number of horizontal rails: 1. Usable length per horizontal rail: 67.5 mm. Terminal type: 12 x UT 2.5 2 x UT 2.5 PE. Terminal capacity: 2.5 mm2. Material: . Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Finish: inherent color black. Grounding plate: 2 mm brass. Mass: approx. 0.61 kg. Dimensions: . External dimension (A)129 mmExternal dimension (B)129 mmExternal dimension (C)85 mmInternal dimension (D)106 mmInternal dimension (E)106 mmInternal dimension (F)68 mmMounting holes distance (G)96 mmMounting holes distance (H)114 mmMounting holes diameter (J)5 mmThickness of mounting brackets (N)13 mm: . External dimension (A): 129 mm. External dimension (B): 129 mm. External dimension (C): 85 mm. Internal dimension (D): 106 mm. Internal dimension (E): 106 mm. Internal dimension (F): 68 mm. Mounting holes distance (G): 96 mm. Mounting holes distance (H): 114 mm. Mounting holes diameter (J): 5 mm. Thickness of mounting brackets (N): 13 mm. Mounting: 2 screws. Grounding: M6 internal/external brass nickel-plated grounding bolt. Ambient temperature: -40 ... 60 °C (-40 ... 140 °F). EU-type examination certificate: CML 17 ATEX 3255X. Marking II 2 GD Ex eb IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +60 °C: . Marking: II 2 GD Ex eb IIC T* Gb Ex tb IIIC T** °C Db T6/T80 °C @ Ta +40 °C T4/T130 °C @ Ta +60 °C. IECEx approval: IECEx CML 17.0144X. UKCA approval: CML 21 UKEX 3896X. Further approvals: further on request. Degree of protection: EN60529. CE marking: 0102. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
