GT3,51 50.000/0400

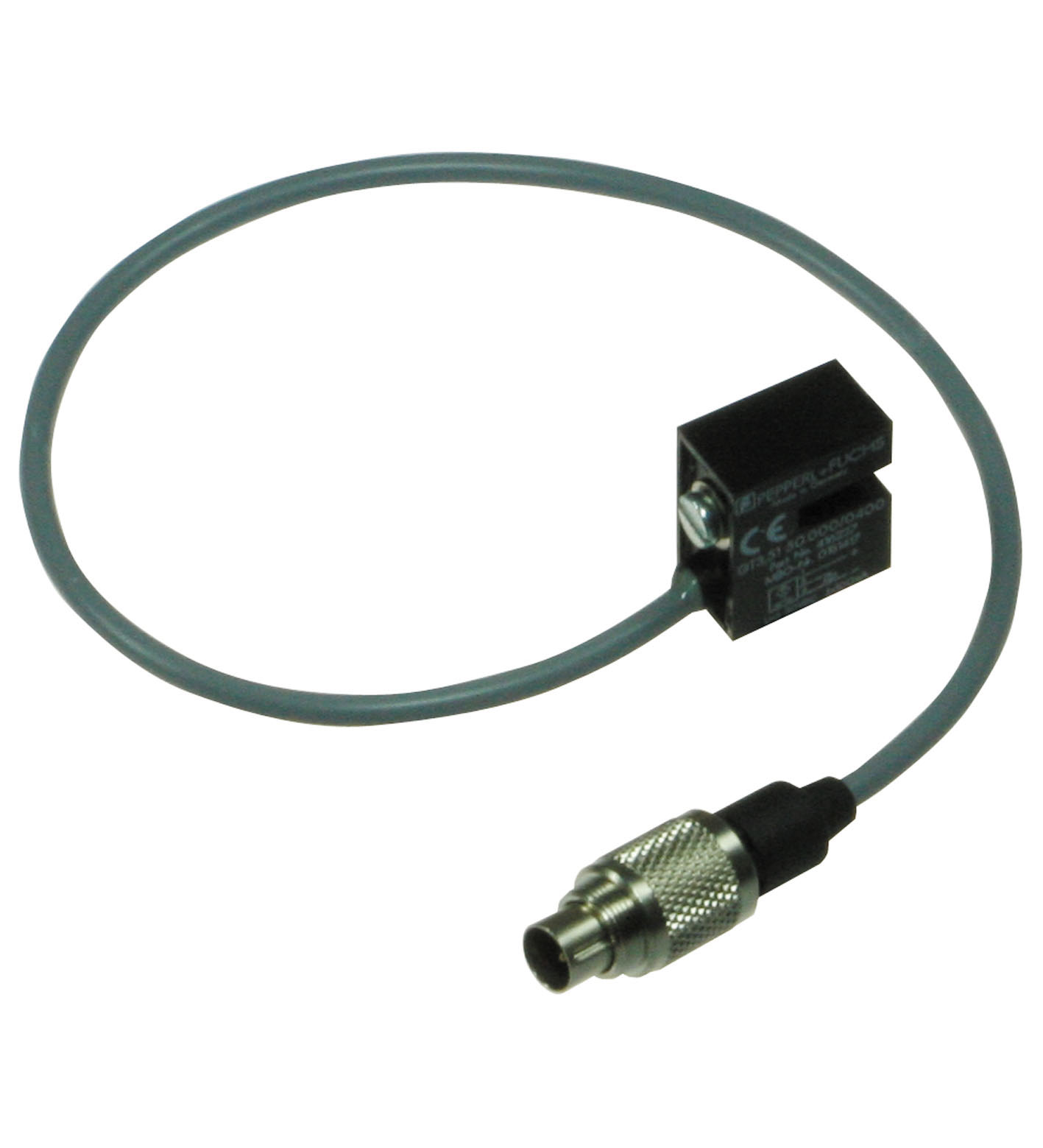

Inductive slot sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Type of voltage: DC, Connection t...

Inductive slot sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Type of voltage: DC, Connection type: 4-pin, M9 connector, Housing material: PA 6.6, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Slot width: 3.5 mm. Depth of immersion (lateral): 4 ... 6 typ. 6 mm. Output polarity: DC. Output type: 3-wire. Operating voltage: 6 ... 30 V. Switching frequency: 0 ... 2000 Hz. Hysteresis: 0.15 ... 0.6 mm. Reverse polarity protection: reverse polarity protected. Short-circuit protection: yes. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 15 mA. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Housing material: PA 6.6. Degree of protection: IP67. Mass: 18 g. Dimensions: . Height17 mmWidth10 mmLength20 mm: . Height: 17 mm. Width: 10 mm. Length: 20 mm

Brand	Pepperl Fuchs
Lifecycle status	active
