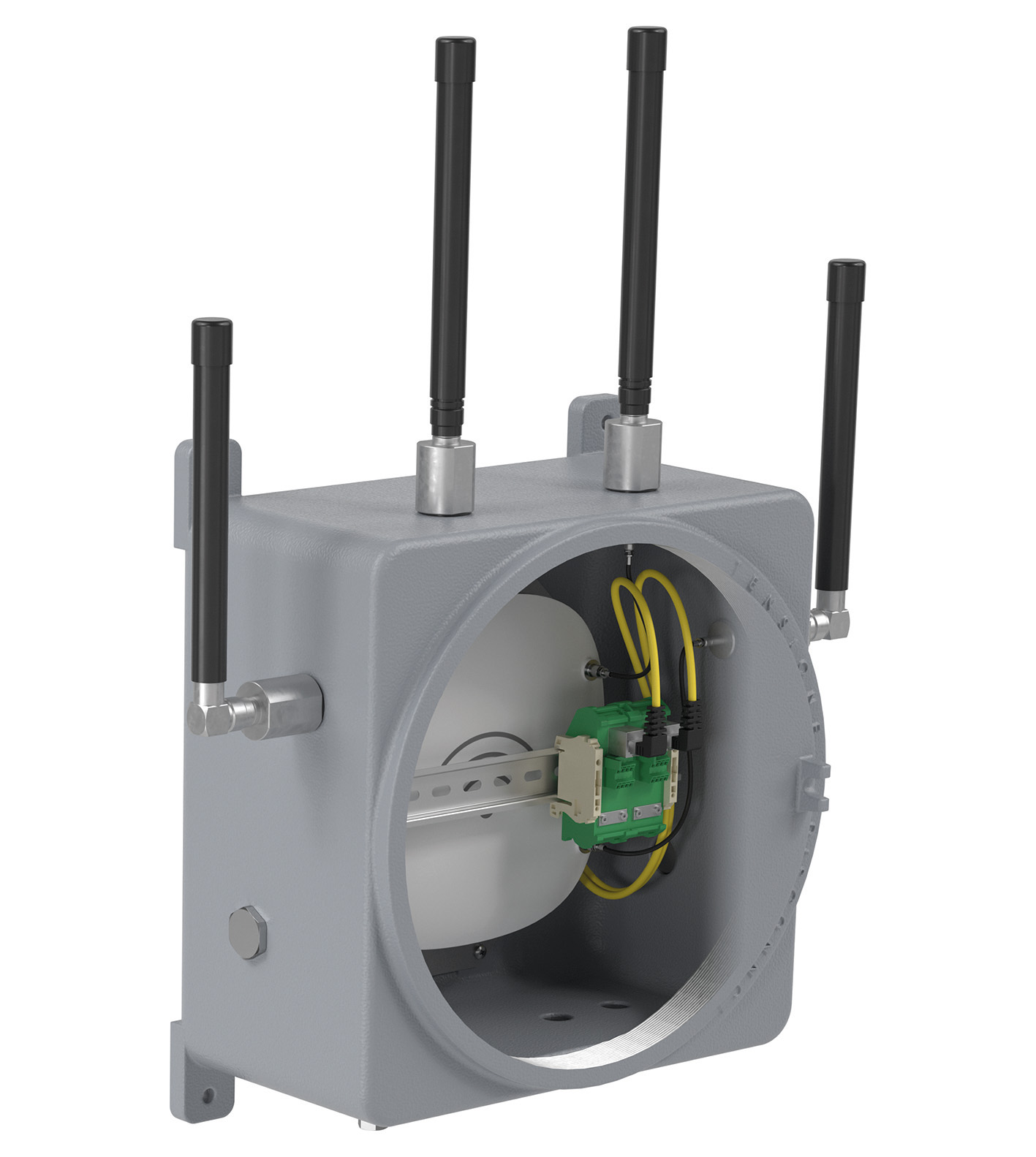

GUB3L.I.CP-Y*

Wireless Access Point (Ex d). Aluminum alloy, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIC, Use of industrial Wireless Access Points in hazardous areas,...

Wireless Access Point (Ex d). Aluminum alloy, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex d and Ex tb certified, Gas group IIC, Use of industrial Wireless Access Points in hazardous areas, External antennas for best possible signal dispersion, Customizable configuration of WI-FI and network devices and cable entries as per specification, Image and drawing are generic for this device type and may deviate from the specific variant. Operating voltage: 1500 V DC / 1000 V AC max.. Operating current: recommended: 1600 A max.. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: threaded round cover. Cover fixing: flamepath thread. Cover seal: none, O-ring for IP66/67. Degree of protection: IP66 (IP66/IP67 with O-ring). Material: . Enclosurealuminum alloyFinishepoxy coated RAL 7005 (grey)O-Ringsilicone: . Enclosure: aluminum alloy. Finish: epoxy coated RAL 7005 (grey). O-Ring: silicone. Mass: 21 kg. Dimensions: 360 mm x 360 mm x 219 mm values might differ slightly due to casting and manufacturing tolerances. Mounting: see datasheets of relevant enclosures. Grounding: M6 external grounding points. Ambient temperature: -40 ... 50 °C (-40 ... 122 °F) depending on integrated components. EU-type examination certificate: INERIS 14 ATEX 0035X. Marking II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss: . Marking: II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss. IECEx approval: IECEx INE 14.0042X. Further approvals: available on request. Degree of protection: EN 60529. CE marking: 0080 or 0102, see type label. Ordering information: This Wireless Access Point solution will be delivered completely configured and assembled ready for use. For configuration details please contact customer service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Installed components: All major WI-FI Access Point vendors such as Aruba, Cisco, ect.

Brand	Pepperl Fuchs
Lifecycle status	active
