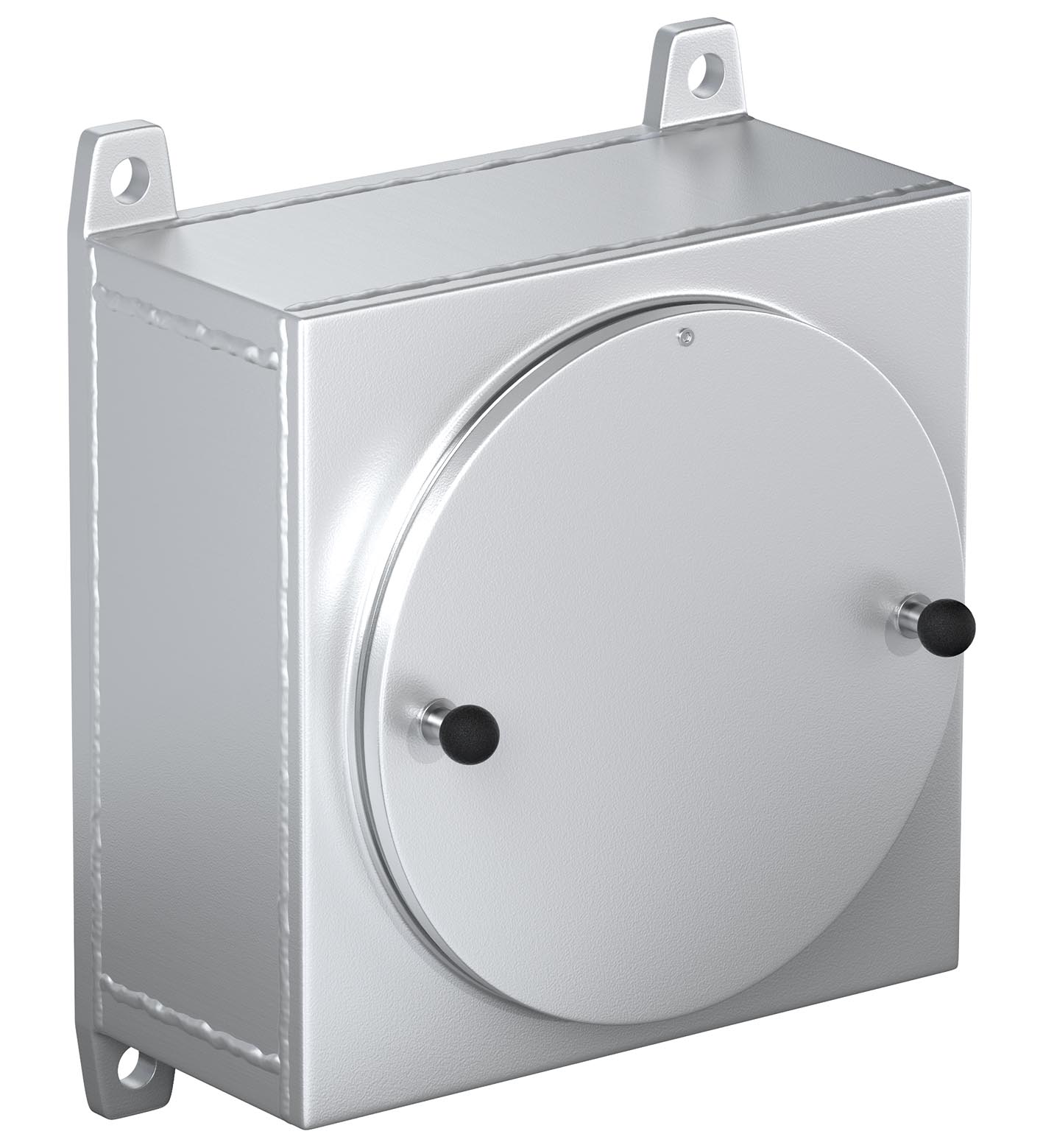

GUBX*
Solutions Ex d IIC based on GUB Enclosures, Stainless Steel. Stainless Steel enclosure, Ex d and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIC, Various enclosure...
Solutions Ex d IIC based on GUB Enclosures, Stainless Steel. Stainless Steel enclosure, Ex d and Ex tb certified, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Gas group IIC, Various enclosure size and design variants, Integration of electrical components and operating elements as per customer specification, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Thermo-resistant tempered glass window, Degree of protection IP66 or IP66 / IP67, Enclosure: AISI 316L stainless steel. Operating voltage: 1500 V DC / 1000 V AC max.. Operating current: recommended: 1600 A max.. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure cover: threaded round cover. Cover fixing: flamepath thread. Cover seal: none, O-ring for IP66/67. Degree of protection: IP66 (IP66/IP67 with O-ring). Cable entry: see data table. Material: . EnclosureAISI 316L stainless steelGlassthermo-resistant tempered glassFinishshot peenedO-Ringsilicone: . Enclosure: AISI 316L stainless steel. Glass: thermo-resistant tempered glass. Finish: shot peened. O-Ring: silicone. Mass: see data table valid for empty enclosure, will increase according to integrated components. Dimensions: see data table values might differ slightly due to manufacturing tolerances for custom designed solutions dimensions and mass may differ. Mounting: see data table. Grounding: M6 external grounding points. Ambient temperature: -60 ... 60 °C (-76 ... 140 °F) depending on integrated components. EU-type examination certificate: INERIS 14 ATEX 0035X INERIS 16 ATEX 9005U. Marking II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power lossMaximum power dissipationsee data table maximum power dissipation at T4/+40 °C: . Marking: II 2 GD Ex db IIC T* Gb Ex tb IIIC T** °C Db T6/T85 °C T5/T100 °C T4/T135 °C T3/T200 °C depending on configuration, ambient temperature and built-in power loss. Maximum power dissipation: see data table maximum power dissipation at T4/+40 °C. IECEx approval: IECEx INE 14.0042X IECEx INE 16.0051U. UKCA approval: CML 21 UKEX 21304X CML 21 UKEX 2976U. ECAS approval: 22-09-51658/E22-09-051730/NB0002. CCoE approval: PESO A/P/HQ/KA/104/6018 (P558877). CCC approval: 2023122303116246. Further approvals: available on request. Degree of protection: EN 60529. CE marking: 2829. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
