HD2-DM-A.RO

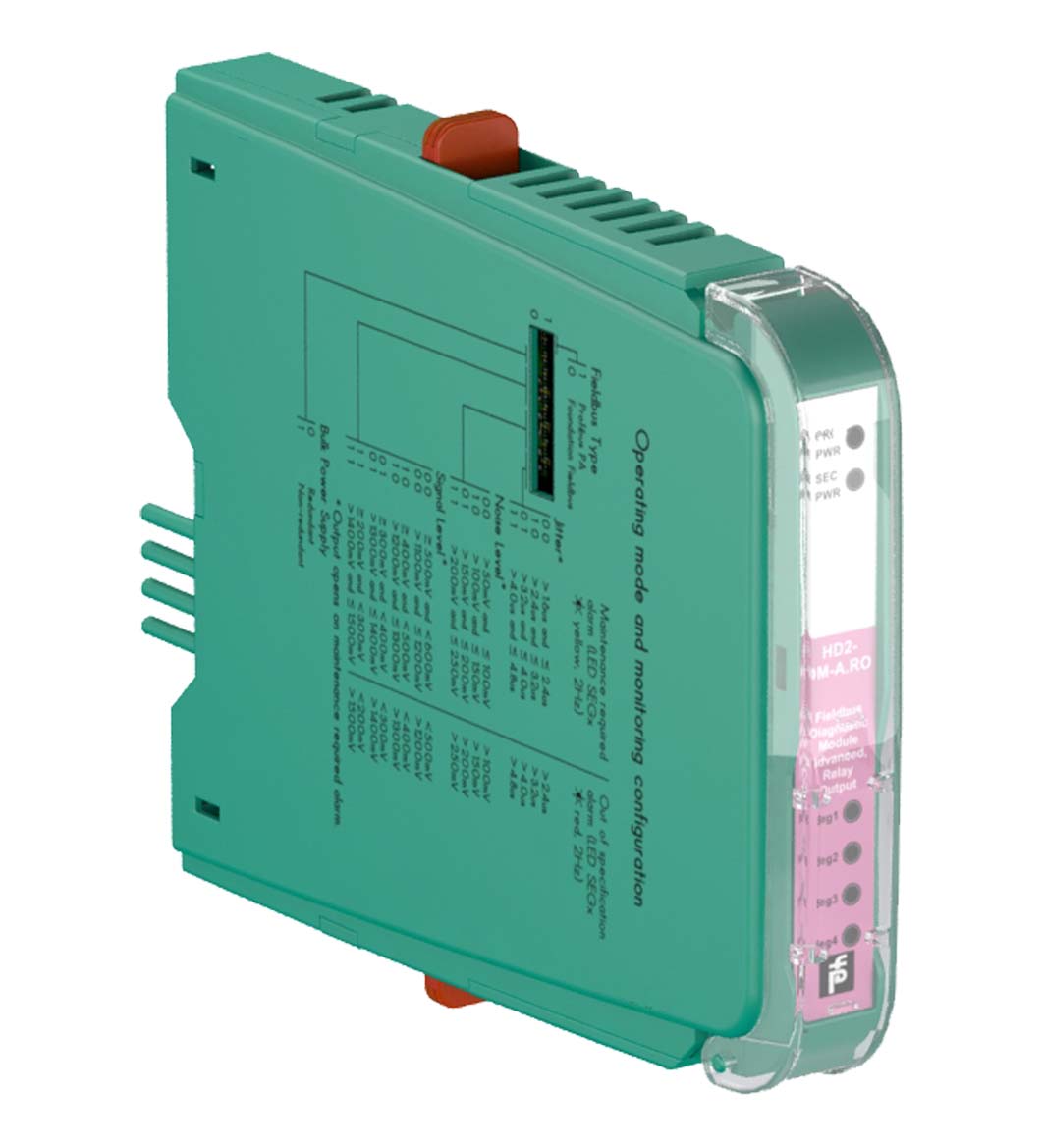

Advanced Diagnostic Module. Advanced diagnostic module with relay output for fieldbus power hub physical layer diagnostics, Diagnostics for fieldbus physical layer and power supply, Plug-in Module for...
Advanced Diagnostic Module. Advanced diagnostic module with relay output for fieldbus power hub physical layer diagnostics, Diagnostics for fieldbus physical layer and power supply, Plug-in Module for the FieldConnex Power Hub, Plug and play - no engineering required, For online monitoring, For FOUNDATION Fieldbus H1 and PROFIBUS PA, IECEx approval, International, Europe, USA, Canada. Design / Mounting: Motherboard based. Installation in hazardous area: Zone 2 / Div. 2. Rated voltage: 19.2 ... 35 V. Rated current: 40 ... 25 mA. Power dissipation: max. 1 W. Number of segments: 4. Fieldbus type: FOUNDATION Fieldbus/PROFIBUS PA. Rated voltage: 9 ... 32 V. LED PRI PWR: green: on, primary bulk power supply connected. LED SEC PWR: green: on, secondary bulk power supply connected. LED Seg 1...4: yellow: bus activity; yellow 2 Hz flashing: Maintenance required; red 2 Hz flashing: specification limit violated; red: hardware error. Fault signal: VFC alarm 1 A, 50 V DC, normally closed. DIP switch: fieldbus type , redundant supply , Signal level , Noise level , Jitter. Fieldbus segment/Fieldbus segment: functional insulation acc. to IEC 62103, rated insulation voltage 50 Veff. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Electromagnetic compatibility: NE 21:2011. Degree of protection: IEC 60529. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F). Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: < 95 % non-condensing. Shock resistance: 15 g 11 ms. Vibration resistance: 1 g , 10 ... 150 Hz. Pollution degree: max. 2, according to IEC 60664. Corrosion resistance: acc. to ISA-S71.04-1985, severity level G3. Core cross section: motherboard specific. Housing material: Polycarbonate. Degree of protection: IP20. Mass: approx. 100 g. Dimensions: . Height106 mmWidth18 mmDepth128 mm: . Height: 106 mm. Width: 18 mm. Depth: 128 mm. Mounting: motherboard mounting. Certificate: TÜV 04 ATEX 2500 X. Marking II 3 G Ex nA IIC T4 Gc: . Marking: II 3 G Ex nA IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-15:2010. FM approval: . FM certificateFM 19 US 0015 X and FM 19 CA 0011 XFM markingClass I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4: . FM certificate: FM 19 US 0015 X and FM 19 CA 0011 X. FM marking: Class I, Division 2, Groups A, B, C, D, T4 / Class I, Zone 2, AEx/Ex ec IIC T4. IECEx approval: . IECEx certificateIECEx TUN 13.0038XIECEx markingEx nA IIC T4 Gc: . IECEx certificate: IECEx TUN 13.0038X. IECEx marking: Ex nA IIC T4 Gc. Patents: This product may be covered by the following patent: US7,698,103. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.
| Brand | Pepperl Fuchs |
| Lifecycle status | active |
