HiATB01-FAULT-01

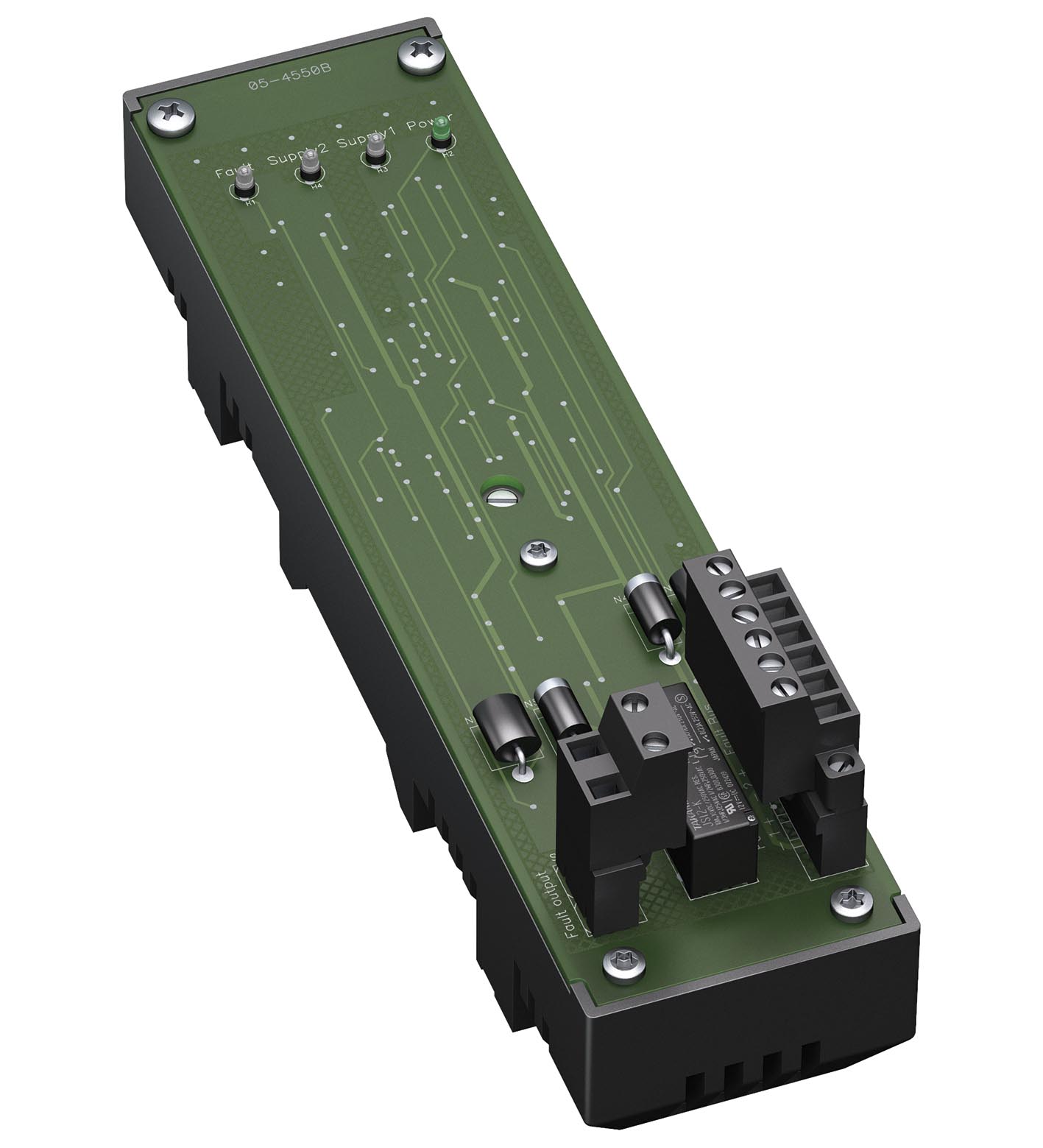

Fault Indication Board. 1-channel, 24 V DC supply, Monitors up to 16 HiC Termination Boards, Relay contact output, LEDs for supply and fault status. Connection: SL1: terminals 3, 5(+); 4, 6(-). Rated...

Fault Indication Board. 1-channel, 24 V DC supply, Monitors up to 16 HiC Termination Boards, Relay contact output, LEDs for supply and fault status. Connection: SL1: terminals 3, 5(+); 4, 6(-). Rated voltage: 19.6 ... 30 V DC. Ripple: ≤ 10 %. Power dissipation: ≤ 500 mW. Reverse polarity protection: yes. Supply: Redundancy available. The supply is decoupled and monitored.. Connection: fault bus (Fault) : SL1: terminals 1, 2 fault output : SL2: terminals 1, 2. Output type: volt-free contact. Switch behaviour: no fault: relay contact closed power supply fault: relay contact open module fault: relay contact open. Contact loading: 30 V DC , 1 A. Display elements: LED Power (power supply), green LEDLED Supply I (missing supply I), red LEDLED Supply II (missing supply II), red LEDLED Fault (fault signal), red LED - LED flashes: module fault/power supply fault at the termination board. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2017For further information see system description.. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -40 ... 70 °C (-40 ... 158 °F). Degree of protection: IP20. Connection: . Supplypluggable screw terminals , blackFault outputpluggable screw terminals , black: . Supply: pluggable screw terminals , black. Fault output: pluggable screw terminals , black. Core cross section: screw terminals: 0.2 ... 2.5 mm2 (24 ... 12 AWG). Material: housing: polycarbonate, 10 % glass fiber reinforced. Mass: approx. 165 g. Dimensions: 50 x 200 x 63 mm (1.97 x 7.9 x 2.48 inch) (W x H x D). Height200 mmWidth50 mmDepth63 mm: . Height: 200 mm. Width: 50 mm. Depth: 63 mm. Mounting: on 35 mm DIN mounting rail acc. to EN 60715:2001. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
