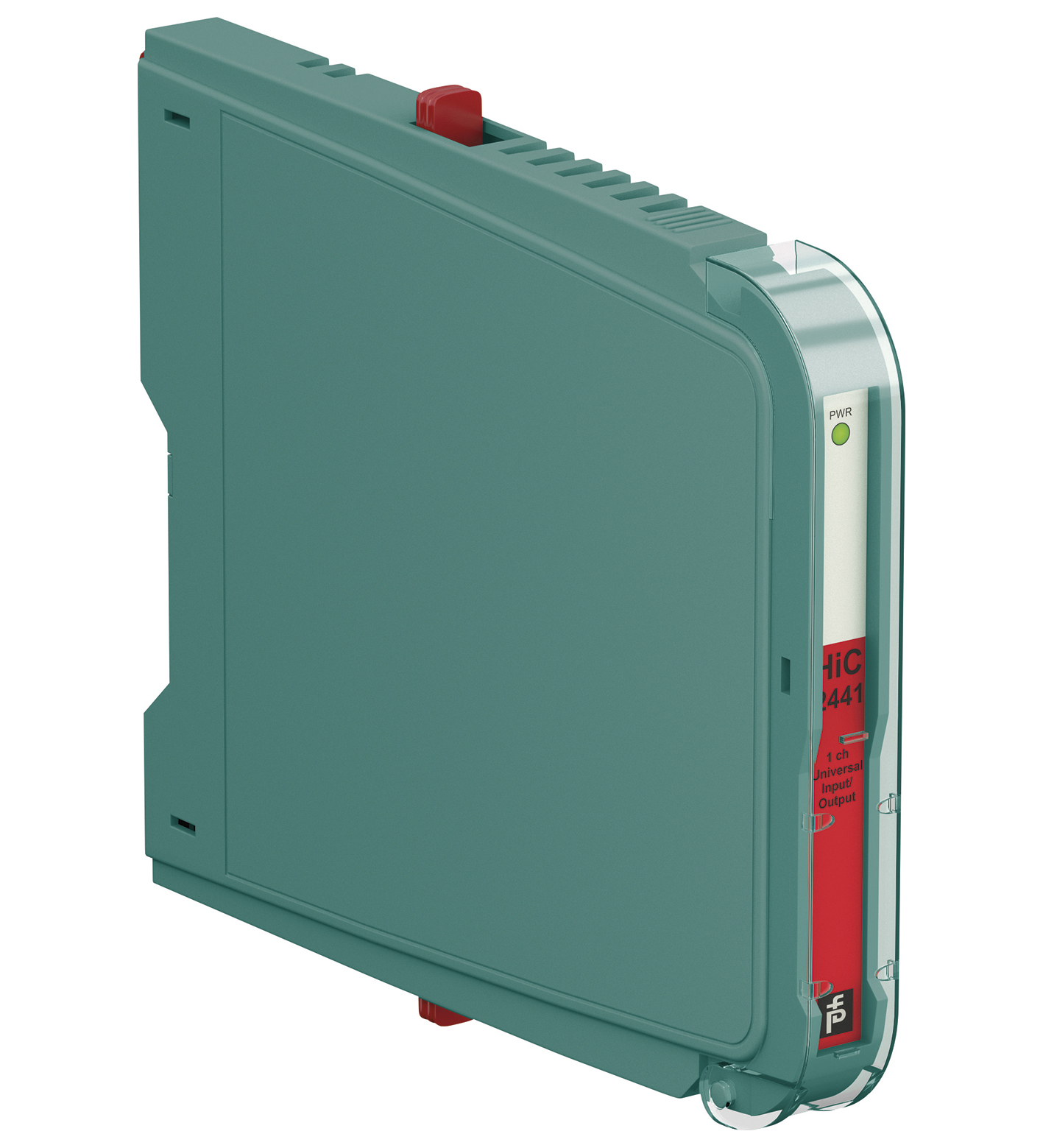

HiC2441

SMART Universal Barrier. 1-channel isolated barrier, 24 V DC supply (bus powered), Analog input, digital input,<br>analog output, digital output, No configuration required, device is self-adapting, HA...

SMART Universal Barrier. 1-channel isolated barrier, 24 V DC supply (bus powered), Analog input, digital input,<br>analog output, digital output, No configuration required, device is self-adapting, HART transparency, Low power dissipation, 3-way isolation, Up to SIL 2 acc. to IEC/EN 61508. Signal type: Universal. Safety Integrity Level (SIL): SIL 2. Systematic capability (SC): SC 2. Connection: SL1: 1a, 1b(-); 2a, 2b(+). Rated voltage: 19 ... 30 V DC bus powered via Termination Board. Ripple: ≤ 10 %. Rated current: ≤ 30 mA. Power consumption: ≤ 700 mW. Suitable field devices: 2-wire SMART transmitters, current sources. Signal: 0/4 ... 20 mA , limited to approx. 40 mA (depends on control system) , reverse polarity protected. Field circuit: SL2: 5a(+), 5b(-) (2-wire SMART transmitter)SL2: 5a(+), 1b(-) (2-wire SMART transmitter with current source). Voltage drop: approx. 4 V (current source). Control circuit: SL1: 8a(+), 7a(-). Supply voltage: min. 16 V at 20 mA (2-wire SMART transmitter). Voltage: 15 ... 30 V. Signal: 0/4 ... 20 mA , sink mode , working voltage 15 ... 30 V. Ripple: 20 mV rms. Suitable field devices: I/P converters (positioner), on-site-displays. Signal: 0/4 ... 20 mA. Field circuit: SL2: 5a(+), 5b(-). Load: 0 ... 650 Ω. Voltage: ≥ 13 V at 20 mA. Ripple: 20 mV rms. Control circuit: SL1: 8a(+), 7a(-). Voltage: 12 ... 30 V. Signal: 0/4 ... 20 mA. Line fault detection: > 100 kΩ at max. 30 V, with field wiring open. Field circuit: SL2: 5a(+), 1a(-) (NAMUR sensor)SL2: 5a(+), 5b(-) (dry contact). Suitable field devices: NAMUR sensors according to IEC/EN 60947-5-6, dry contacts. Signal: 0.1 ... 9 mA , sink mode. Open loop voltage: approx. 10 V DC , 1 kΩ series resistance. Signal: 0.1 ... 9 mA. Control circuit: SL1: 8a(+), 7a(-). Voltage: 13 ... 30 V. Field circuit: SL2: 5a(+), 5b(-). Suitable field devices: Solenoid Valve , audible alarm , visual alarm. Drive capability: 12 V / 40 mA at 300 Ω load. Internal resistor: min. 240 Ω. Current: 40 mA. Voltage: 12 V. Current limit: 45 mA. Open loop voltage: approx. 22 V. Control circuit: SL1: 8a(+), 7a(-). Voltage: 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC. Current: 1-signal: 0 ... 45 mA, depending on the output load 0-signal: < 0.1 mA, independent of the output load. Power dissipation: 1.1 W at 24 V, 300 Ω load (digital output). Deviation: at 20 °C (68 °F) ≤ ±20 µA incl. linearity, hysteresis and supply fluctuations at 4 ... 20 mA (analog input, analog output) ≤ ±60 µA incl. linearity, hysteresis and supply fluctuations at 0 ... 45 mA (digital output). Influence of ambient temperature< 2 µA/K (0 ... 70 °C (32 ... 158 °F)) < 3 µA/K (-40 ... 0 °C (-40 ... 32 °F)): . Influence of ambient temperature: < 2 µA/K (0 ... 70 °C (32 ... 158 °F)) < 3 µA/K (-40 ... 0 °C (-40 ... 32 °F)). Switching frequency: ≤ 500 Hz with 50 % duty cycle (digital input, NAMUR sensor) ≤ 5 Hz (digital input, dry contact) ≤ 20 Hz (digital output). Frequency range: HART: bandwidth by 0.5 Vpp signal and/or 1 mApp signal 950 ... 2500 Hz (analog input, analog output). Settling time: ≤ 20 ms (analog input, analog output) ≤ 1 ms (digital input, NAMUR sensor). Reaction time: ≤ 5 ms , turn-on/turn-off time (digital output). Control/power supply: basic insulation according to IEC/EN 61010-1, rated insulation voltage 60 Veff. Display elements: LED. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2012For further information see system description.. Degree of protection: IEC 60529:2001. Protection against electrical shock: IEC 61010-1:2010. Input: EN 60947-5-6:2000. Ambient temperature: -40 ... 70 °C (-40 ... 158 °F) Observe the temperature range limited by derating, see section derating.. Storage temperature: -40 ... 85 °C (-40 ... 185 °F). Relative humidity: 95 % non-condensing. Degree of protection: IP20. Mass: approx. 105 g. Dimensions: 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D). Height106 mmWidth12.5 mmDepth128 mm: . Height: 106 mm. Width: 12.5 mm. Depth: 128 mm. Mounting: on termination board. Coding: pin 1 and 4 trimmed For further information see system description.. EU-type examination certificate: TÜV 14 ATEX 153522 X. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Supply: . Maximum safe voltageUm250 V (Attention! The rated voltage can be lower.): Um. Maximum safe voltage: 250 V (Attention! The rated voltage can be lower.). Equipment: SL2: 5a(+), 5b(-). VoltageUo25.2 VCurrentIo110 mAPowerPo693 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH: Uo. Voltage: 25.2 V. Current: 110 mA. Power: 693 mW. Internal capacitance: 5.7 nF. Internal inductance: 0 mH. Equipment: SL2: 5a(+), 1b(-). VoltageUi< 28 VCurrentIi< 115 mAVoltageUo7.2 VCurrentIo0 mAPowerPo0 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH: Ui. Voltage: < 28 V. Current: < 115 mA. Voltage: 7.2 V. Current: 0 mA. Power: 0 mW. Internal capacitance: 5.7 nF. Internal inductance: 0 mH. Equipment: SL2: 5a(+), 1a(-). VoltageUo12.6 VCurrentIo13 mAPowerPo41 mWInternal capacitanceCi5.7 nFInternal inductanceLi0 mH: Uo. Voltage: 12.6 V. Current: 13 mA. Power: 41 mW. Internal capacitance: 5.7 nF. Internal inductance: 0 mH. Certificate: TÜV 14 ATEX 153523 X. Marking II 3G Ex ec IIC T4 Gc: . Marking: II 3G Ex ec IIC T4 Gc. Galvanic isolation: . Input/Other circuitssafe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V: . Input/Other circuits: safe electrical isolation acc. to IEC/EN 60079-11, voltage peak value 375 V. Directive conformity: . Directive 2014/34/EUEN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018: . Directive 2014/34/EU: EN IEC 60079-0:2018+AC:2020 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018. UL approval: E106378. Control drawing116-0408 (cULus): . Control drawing: 116-0408 (cULus). IECEx approval: . IECEx certificateIECEx TUN 15.0004XIECEx marking[Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc: . IECEx certificate: IECEx TUN 15.0004X. IECEx marking: [Ex ia Ga] IIC , [Ex ia Da] IIIC , [Ex ia Ma] I Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active
