Pepperl Fuchs

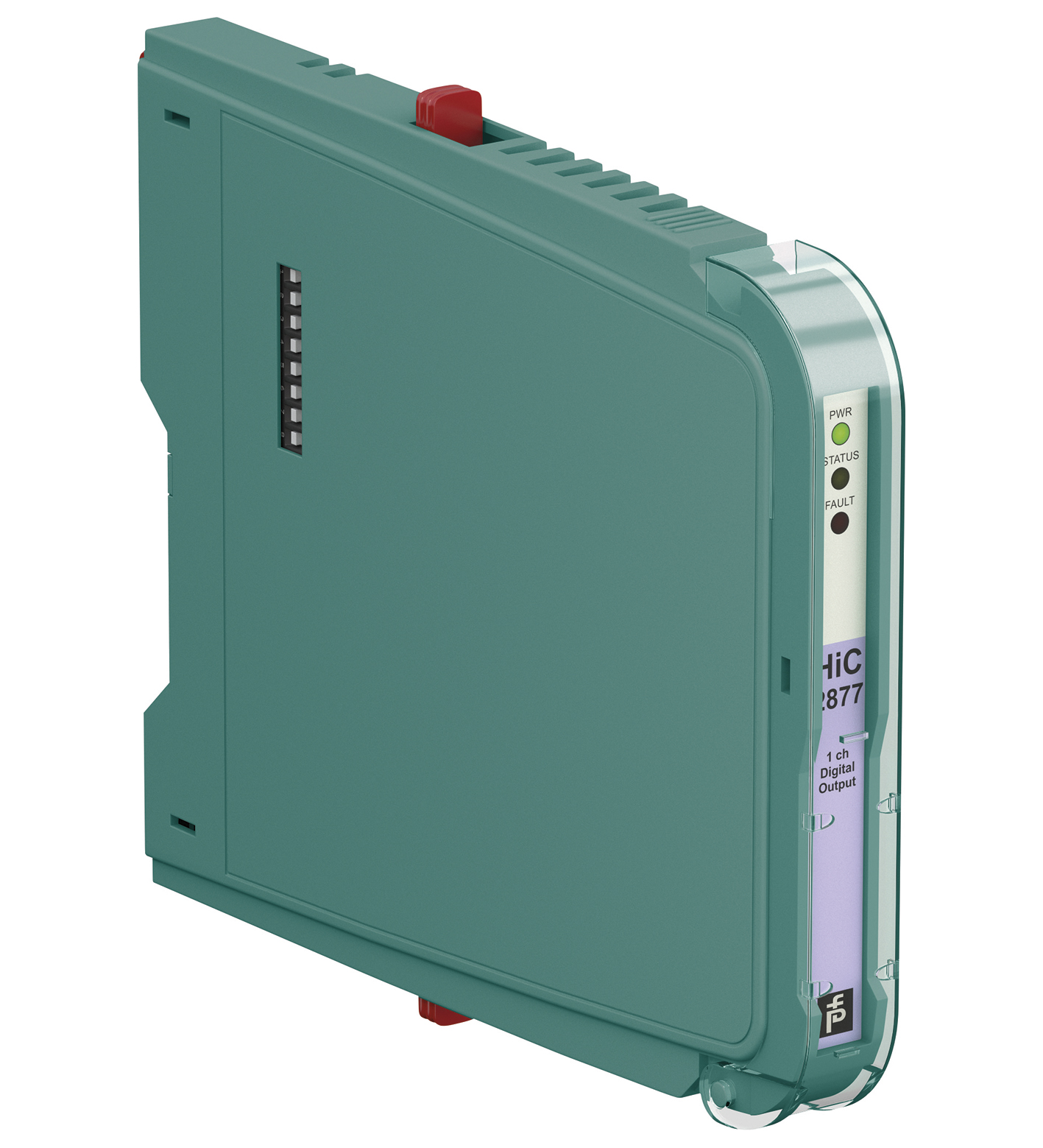

HiC2877

Solenoid Driver. 1-channel isolated barrier, 24 V DC supply (bus or loop powered), Output 40 mA at 11.2 V DC, 55 mA current limit, Contact or logic control input, Entity parameter I<sub>o</sub>/I<sub>sc</sub> = 93 mA, Line fault detection (LFD), Test pulse immunity, Up to SIL 3 acc. to IEC/EN 61508 (loop powered), Housing width: 12.5 mm, Number of channels: 1-channel, Filter, Safety Integrity Level (SIL): SIL 3, Systematic capability (SC): SC 3. Signal type: Digital Output. Safety Integrity Level (SIL): SIL 3. Systematic capability (SC): SC 3. Connection: SL1: 1a, 1b(-); 2a, 2b(+). Rated voltage: 20.4 ... 30 V DC loop powered 20.4 ... 30 V DC bus powered via Termination Board. Input current: 62 mA at 24 V, 300 Ω load. Power dissipation: 1 W at 24 V, 300 Ω load. Connection side: control side. Connection: SL1: 8a(+), 7a(-) loop powered SL1: 10a(+), 9a(-) bus powered. Control input: external switch (dry contact or open collector) non isolated or logic signal input fully floating. Signal level: 1-signal: 15...30 V DC (current limited to 3 mA) or contact close (internal 10 kΩ pull-up)0-signal: 0...5 V DC or contact open. Power dissipation: 1 W at 24 V, 300 Ω load for loop powered. Inrush current: 0.2 A , 15 ms loop powered. Connection side: field side. Connection: SL2: 5a(+), 5b(-). Internal resistor: approx. 280 Ω. Current: ≤ 40 mA. Voltage: ≥ 11.2 V. Current limit: 55 mA. Open loop voltage: approx. 22.5 V. Load: nominal 0.1 ... 5 kΩ. Switching frequency: - bus powered: filter OFF: max. 150 Hz, filter ON: max. 15 Hz- loop powered: max. 10 Hz. Energized/De-energized delay: - bus powered: filter OFF: 1 ms, filter ON: 10 ms- loop powered: switch-on 50 ms, switch-off 6 ms (300 Ω load). Line fault detection: . Short-circuit< 25 ΩOpen-circuit> 100 kΩTest current< 4 mA: . Short-circuit: < 25 Ω. Open-circuit: > 100 kΩ. Test current: < 4 mA. Connection: SL1: 6b. Output type: open collector transistor (internal fault bus). Fault current: 4 mA pulsing (20 ms ON, 200 ms OFF). Fault level: lead short-circuit detection at < 25 Ωlead breakage detection at > 100 kΩ typical. Output/power supply, inputs, and collective error: safe electrical isolation acc. to EN 60079-11: 2007, voltage peak value 375 V. Display elements: LEDs. Control elements: DIP switch. Factory setting: bus powered, input: dry contact, line fault detection enabled. Configuration: via DIP switches. Labeling: space for labeling at the front. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013 (industrial locations): . Directive 2014/30/EU: EN 61326-1:2013 (industrial locations). Electromagnetic compatibility: NE 21:2006For further information see system description.. Degree of protection: IEC 60529:2001. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Degree of protection: IP20. Mass: approx. 100 g. Dimensions: 12.5 x 106 x 128 mm (0.5 x 4.2 x 5.1 inch) (W x H x D). Height106 mmWidth12.5 mmDepth128 mm: . Height: 106 mm. Width: 12.5 mm. Depth: 128 mm. Mounting: on termination board. Coding: pin 2 and 3 trimmed For further information see system description.. EU-type examination certificate: CESI 10 ATEX 046. Marking II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] IOutputEx ia Ga, Ex ia Da, Ex ia MaVoltageUo25.2 VCurrentIo93 mAPowerPo586 mW: . Marking: II (1)G [Ex ia Ga] IIC [exsign] II (1)D [Ex ia Da] IIIC [exsign] I (M1) [Ex ia Ma] I. Output: Ex ia Ga, Ex ia Da, Ex ia Ma. Voltage: 25.2 V. Current: 93 mA. Power: 586 mW. Supply: . Maximum safe voltageUm253 V AC (Attention! Um is no rated voltage.): Um. Maximum safe voltage: 253 V AC (Attention! Um is no rated voltage.). Certificate: KIWA 15 ATEX 0036 X. Marking II 3G Ex ec IIC T4 Gc: . Marking: II 3G Ex ec IIC T4 Gc. Directive conformity: . Directive 2014/34/EUEN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018: . Directive 2014/34/EU: EN 60079-0:2012+A11:2013 , EN 60079-11:2012 , EN 60079-7:2015+A1:2018. FM approval: . Control drawing116-0431 (cFMus): . Control drawing: 116-0431 (cFMus). UL approval: . Control drawing116-0383 (cULus): . Control drawing: 116-0383 (cULus). IECEx approval: . IECEx certificateIECEx CES 10.0017 IECEx KIWA 15.0018XIECEx marking[Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc: . IECEx certificate: IECEx CES 10.0017 IECEx KIWA 15.0018X. IECEx marking: [Ex ia Ga] IIC, [Ex ia Da] IIIC, [Ex ia Ma] I Ex ec IIC T4 Gc. Supplementary information: Observe the certificates, declarations of conformity, instruction manuals, and manuals where applicable. For information see www.pepperl-fuchs.com.

Brand	Pepperl Fuchs
Lifecycle status	active

Not currently in stock

Price on request
